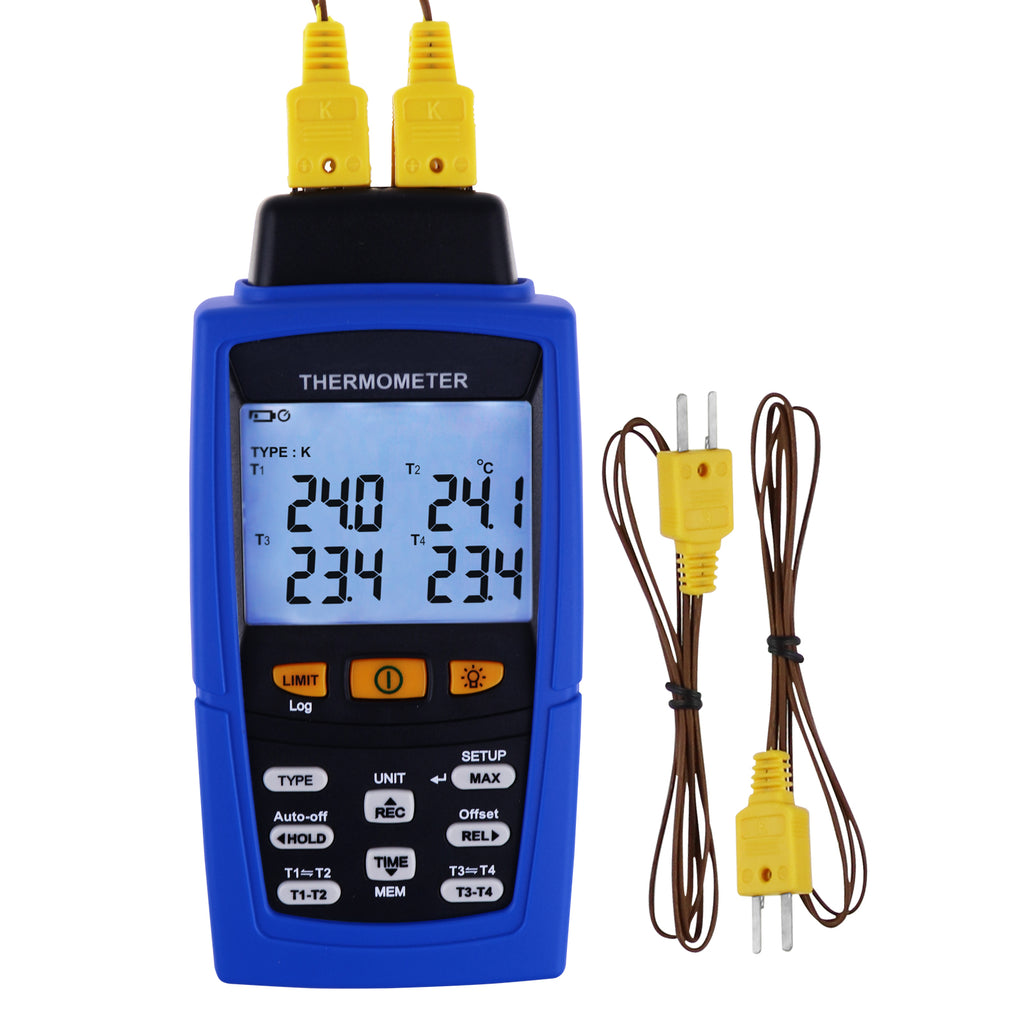

TM-747D Professional 4-Channel K / J / T / E / R / S / N Type Thermocouple Thermometer 16,800 Datalogging T1/T2, T3/T4

In stock
TM-747D
 Features: Seven (7) thermocouple type selections: K,J,T,E,R,S,N Datalogging capacity 16,800 records Relative(REL) measurement Selectable °C/°F/°K units MAX /MIN /AVG Data hold functions Dual LCD ...
$157.90 USD
Share on:

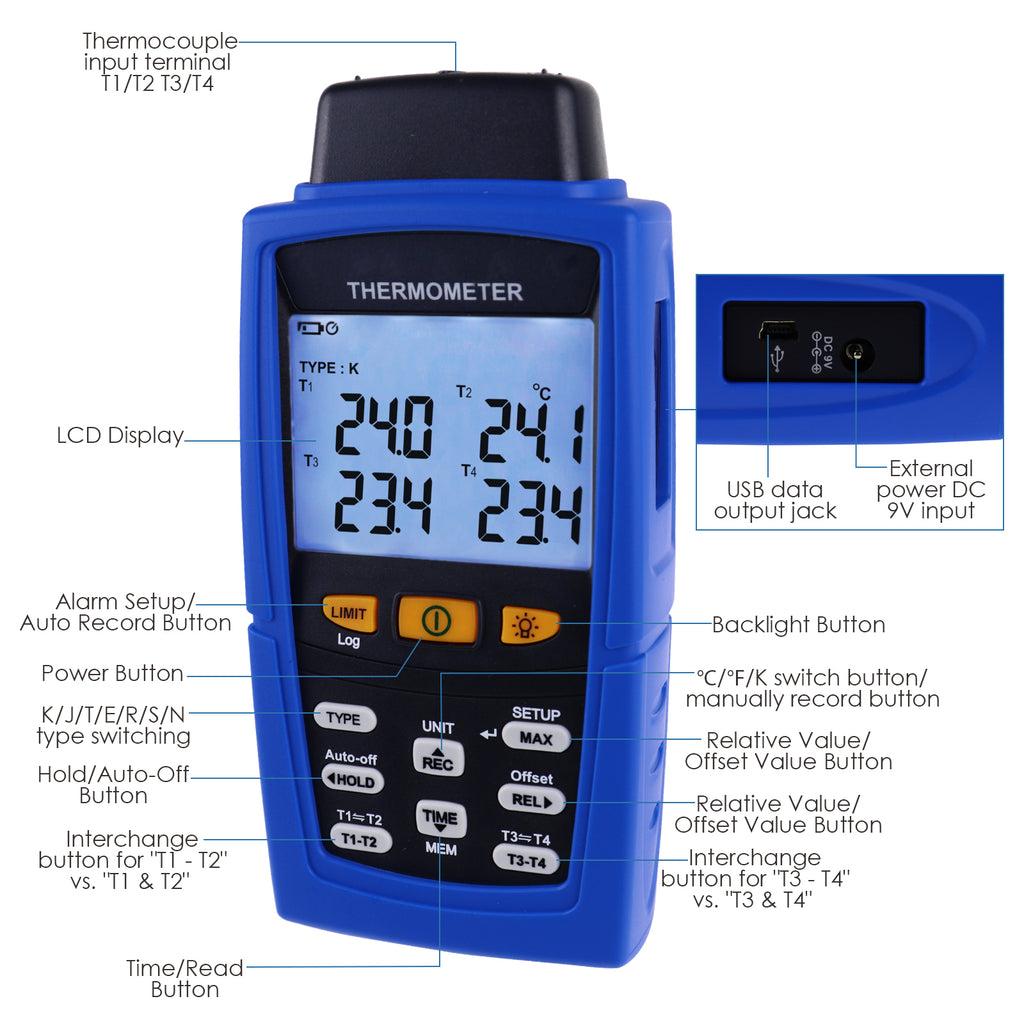

 Features:

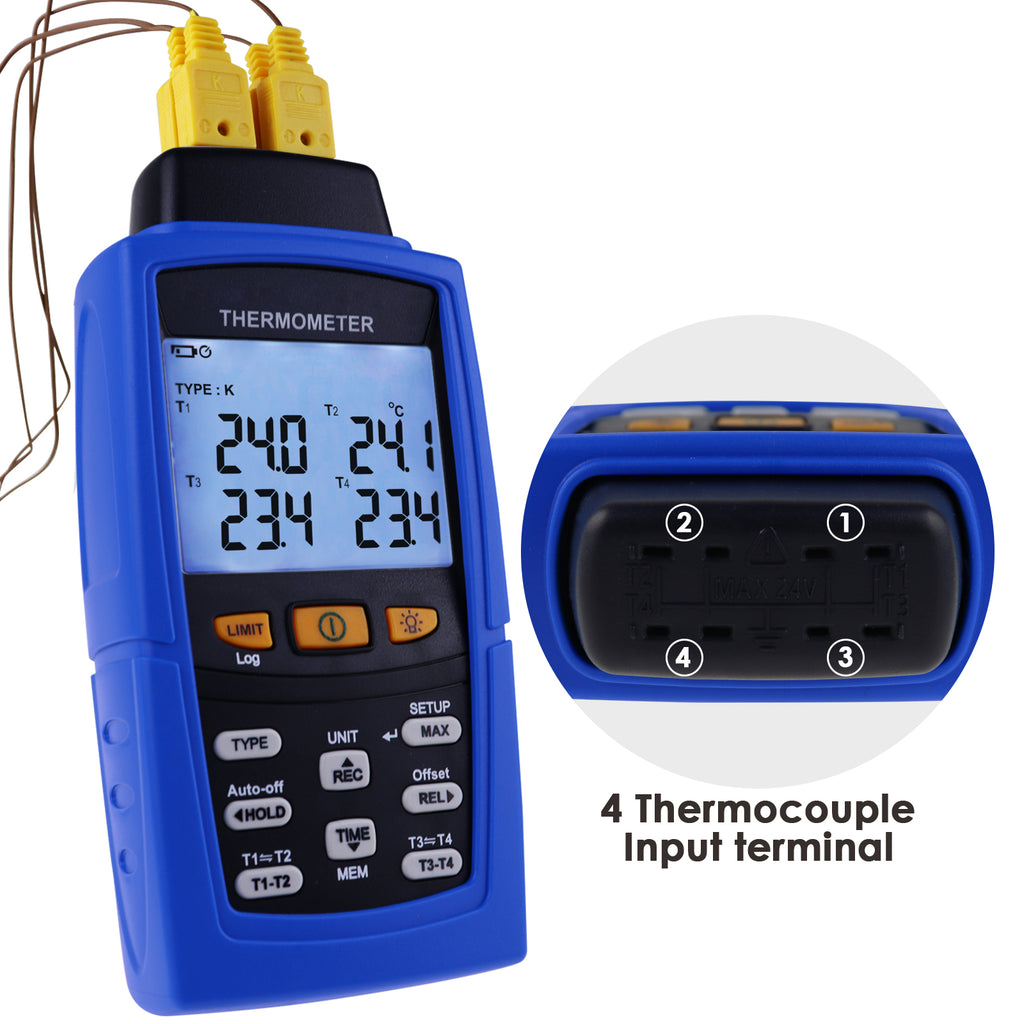

  • Seven (7) thermocouple type selections: K,J,T,E,R,S,N
  • Datalogging capacity 16,800 records
  • Relative(REL) measurement
  • Selectable °C/°F/°K units
  • MAX /MIN /AVG
  • Data hold functions

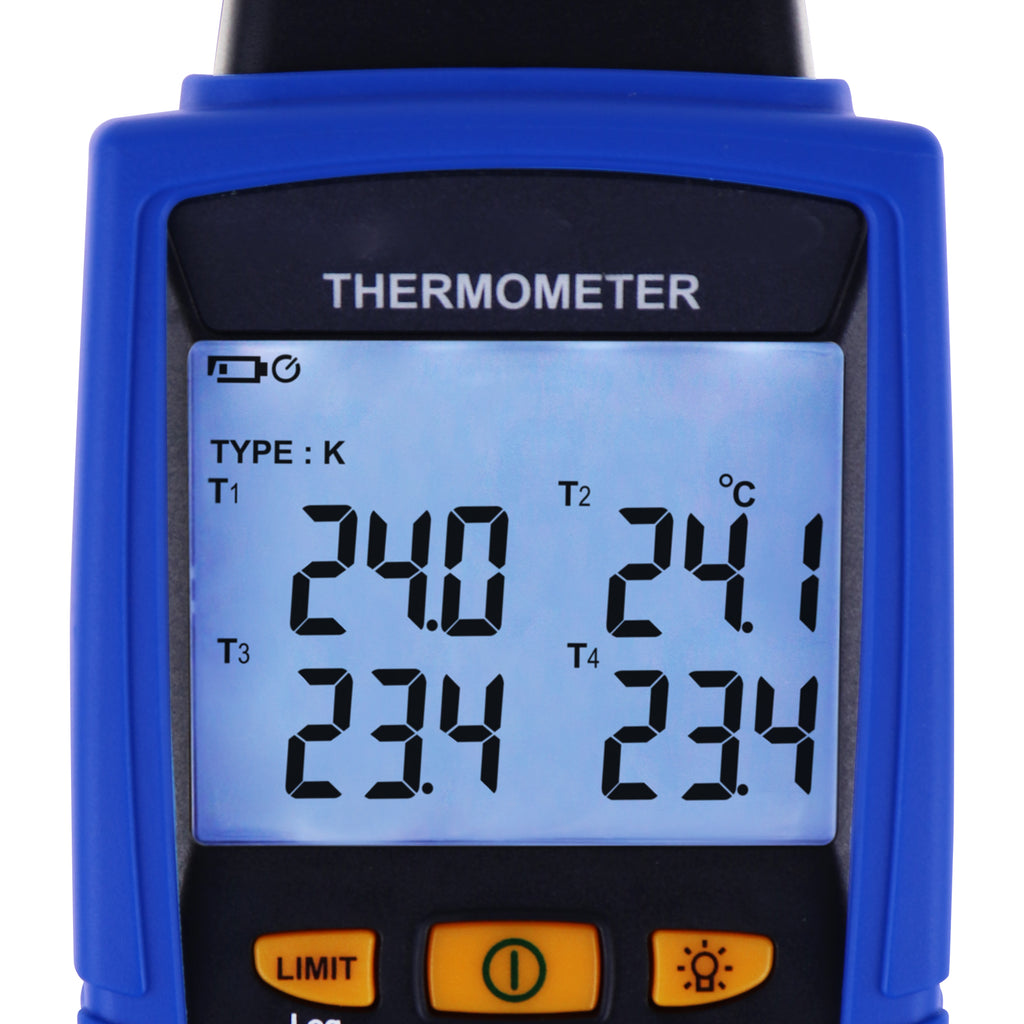

  • Dual LCD displays T1-T2 and T3-T4.
  • Hi/Lo audible alarm functions

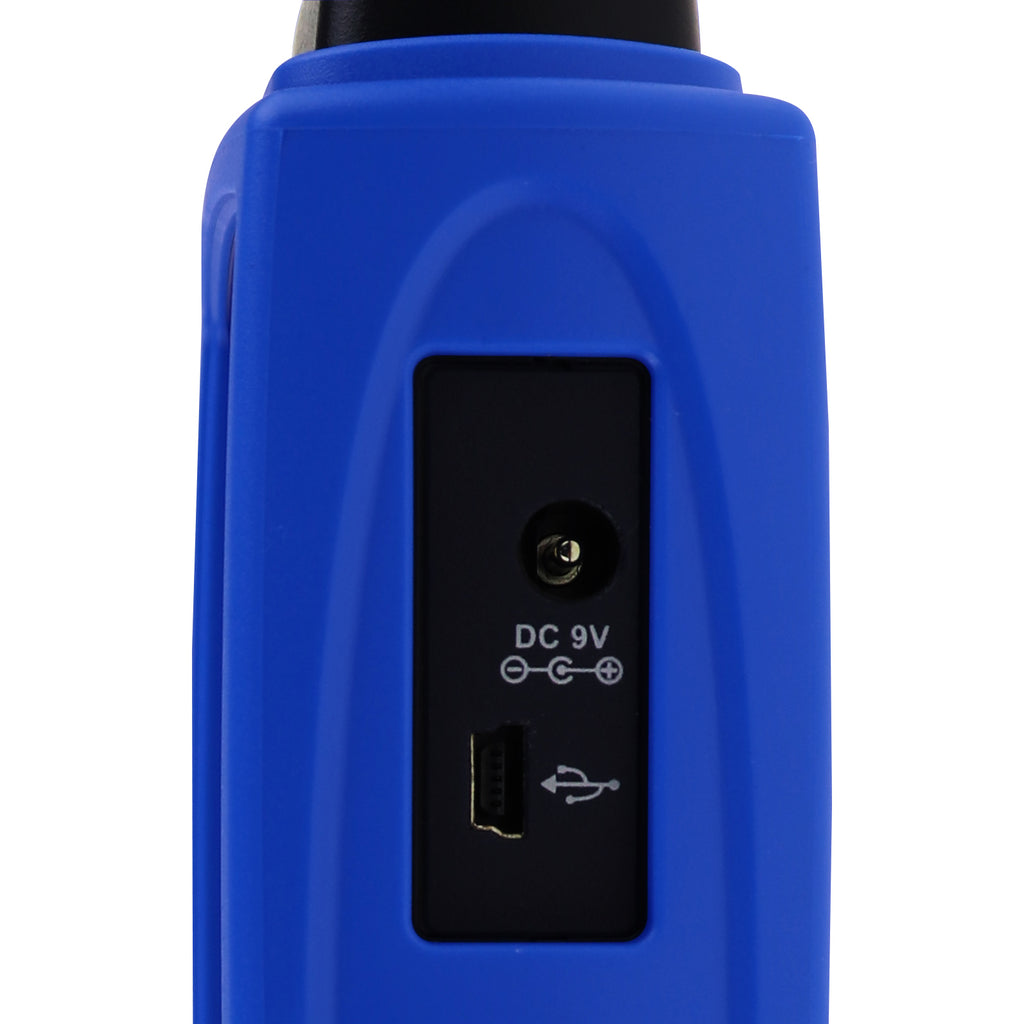

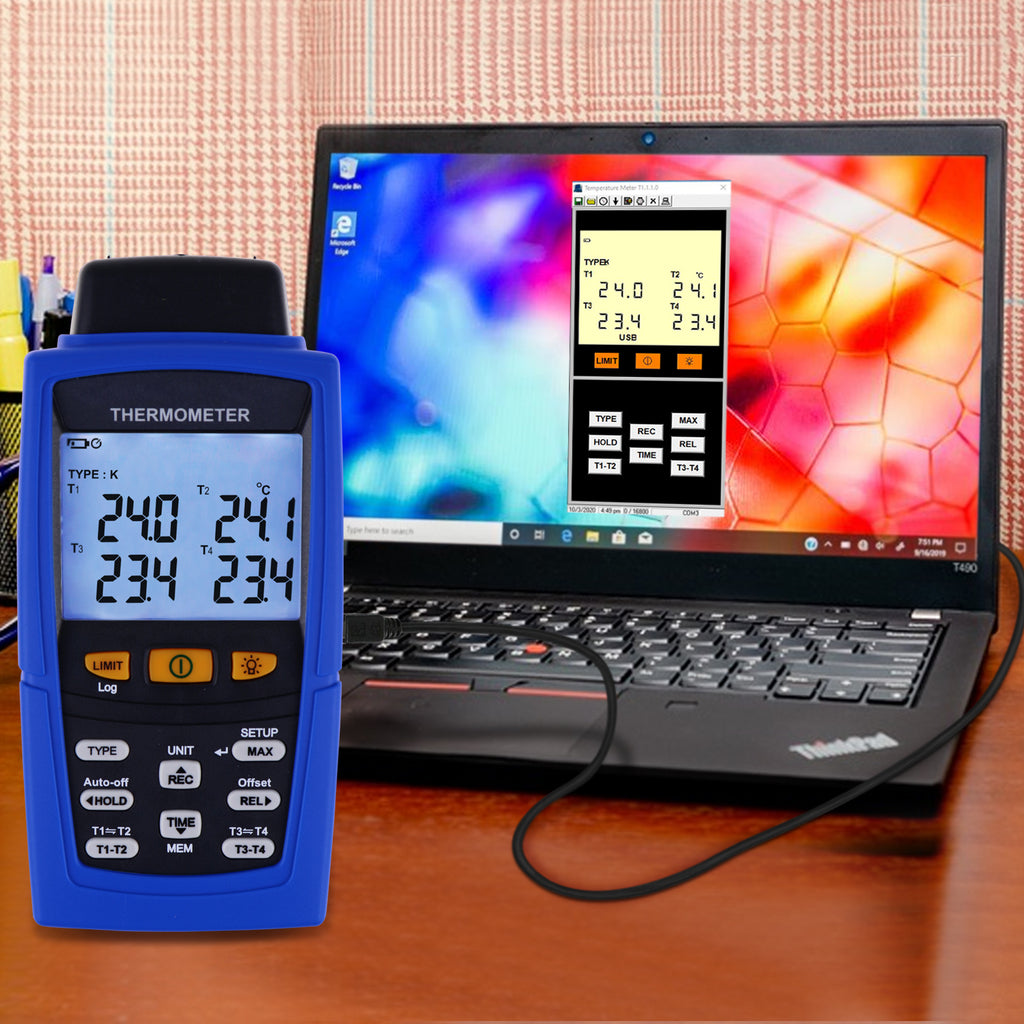

  • USB PC serial interface:Windows XP / 7 / 8.1 / 10

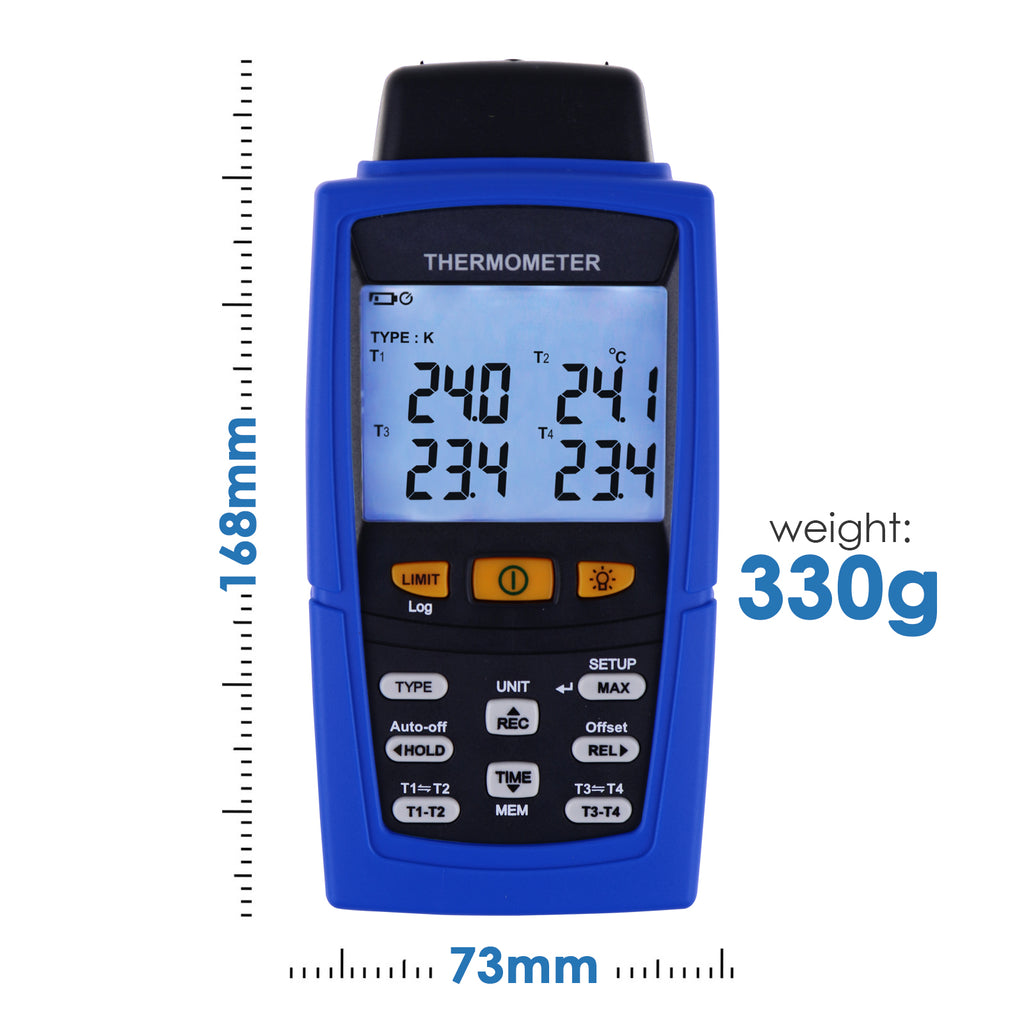

  • Product dimension: 168 x 73 x 35mm (LxWxH)
  • Product weight: Approx. 330g

Specifications:

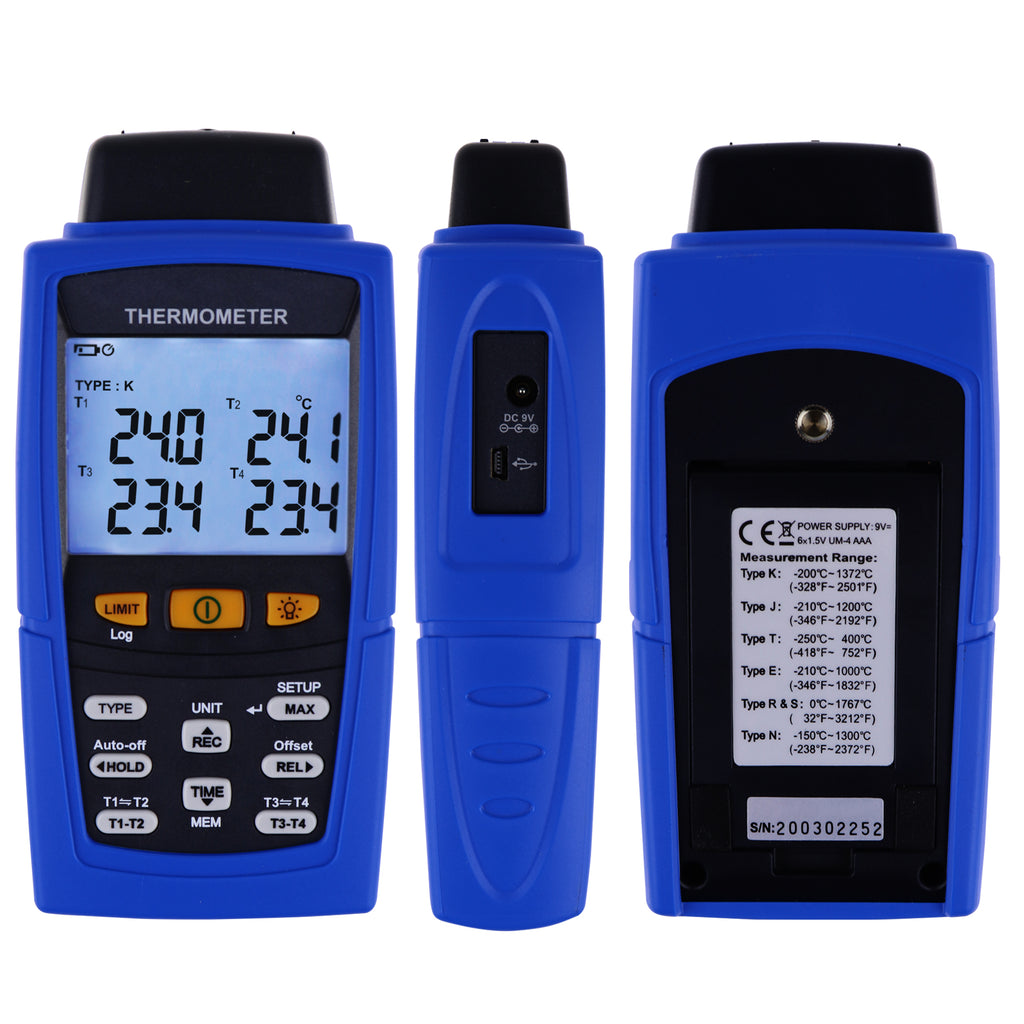

  • Measurment Range:
    • TYPE-K: -200 to 1372°C (-328 to 2501°F)
    • TYPE-J: -210 to 1200°C (-346 to 2192°F)
    • TYPE-T: -250 to 400°C (-418 to 752°F)
    • TYPE-E: -210 to 1000°C (-346 to 1832°F)
    • TYPE-R/S: 0 to 1767°C (+32 to 3212°F)
    • TYPE-N:-150 to 1300°C (-238 to 2372°F)
  • Resolution:
    • 0.1 - K / J / T / E / N≤1000°C
    • 1 - R / S / K / J / T / E / N≥1000°C
  • Accuracy:
    • K/J/E/T/N Type: ±(0.05% rdg + 0.7°C / 1°F Below-100 °C (-148 °F): K, J, T, E add 0.15% reading. N add 0.45% reading
    • R/S Type: ±(0.05% rdg+3°C /5.4°F
  • Temperature coefficient:0.05% ±0.07°C of reading/°C (0.06°F/°F) outside 18~28°C(64~82°F) specified range
  • Temperature Scale: ITS-90
  • Temperature coefficient: 0.05% ±0.07°C of reading/°C (0.06°F/°F) outside 18~28°C(64~82°F) specified range

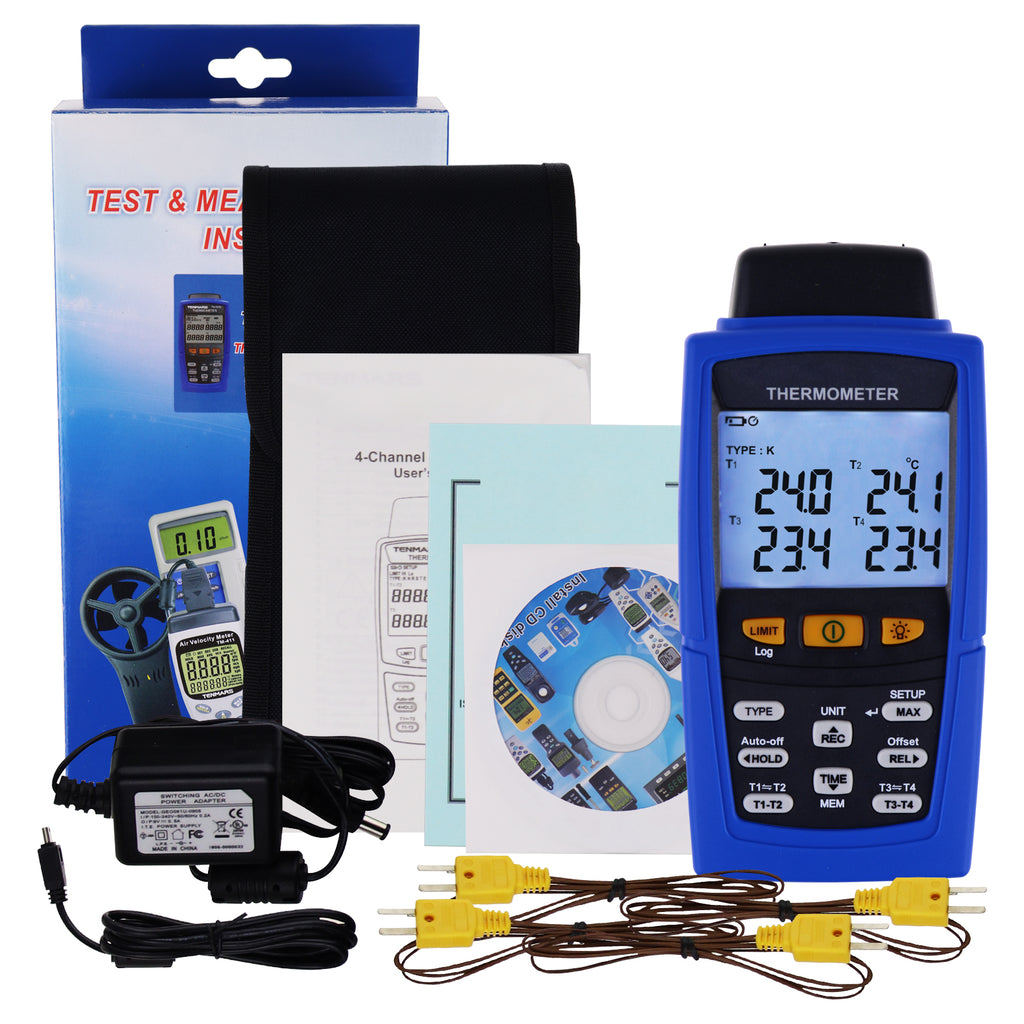

Set comes with:

  • 1 x Thermocouple thermometer

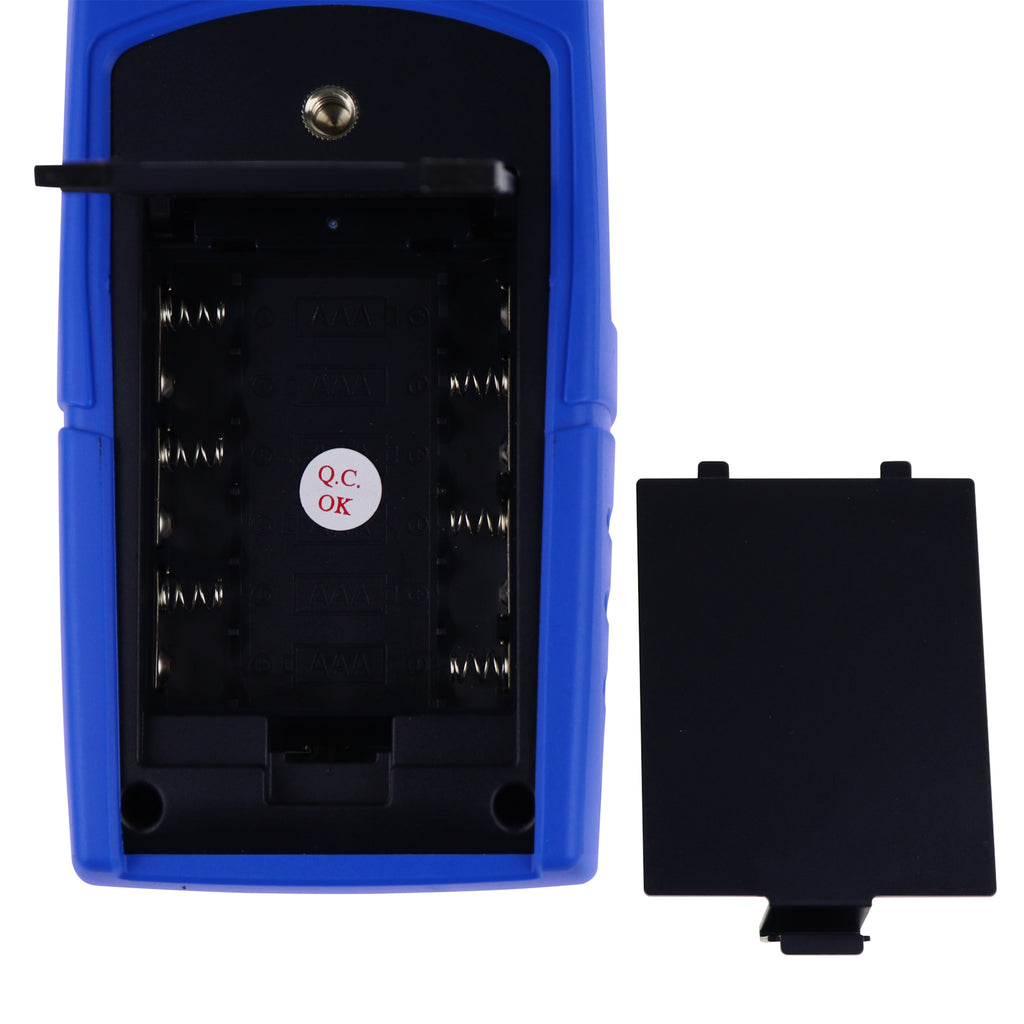

  • 6 x 1.5V AAA battery

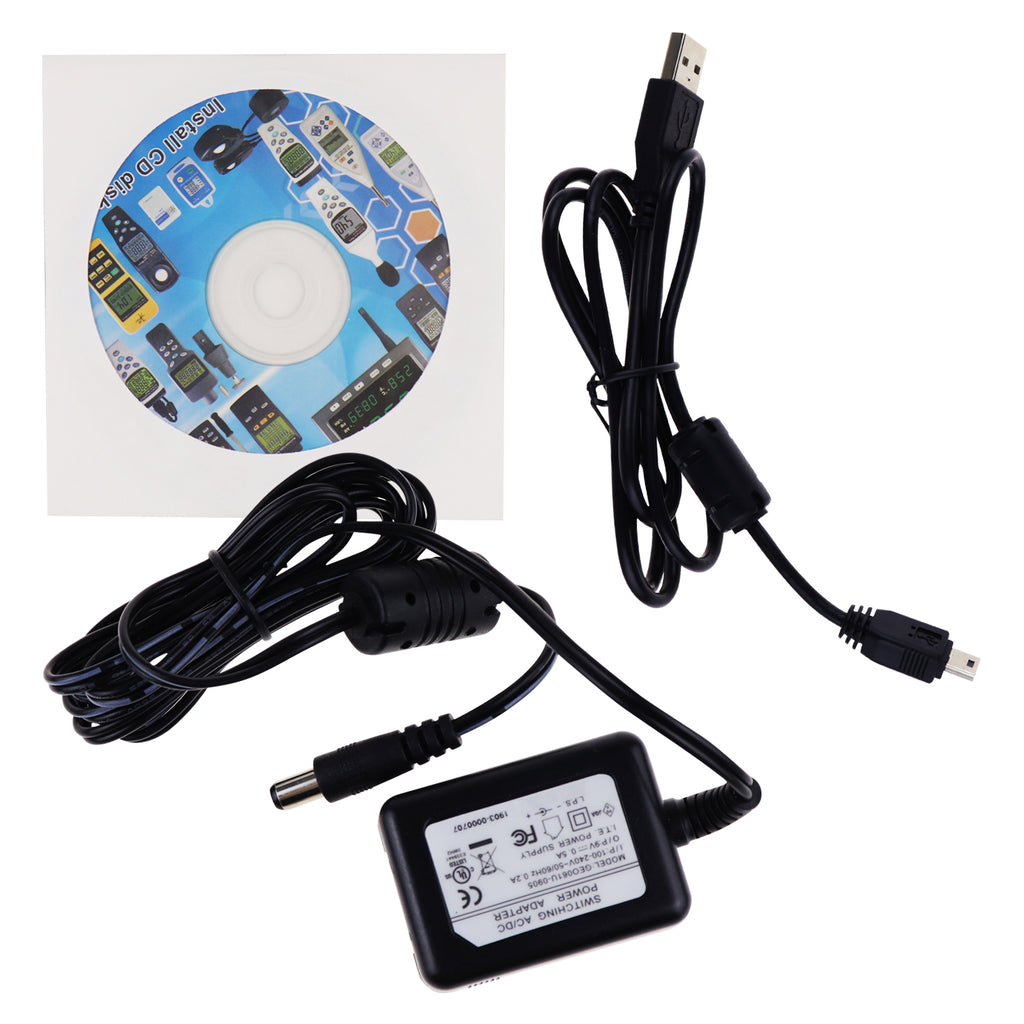

  • 1 x 9V AC to DC adaptor
  • 1 x USB Cable and Installation disc
  • Instruction Manual

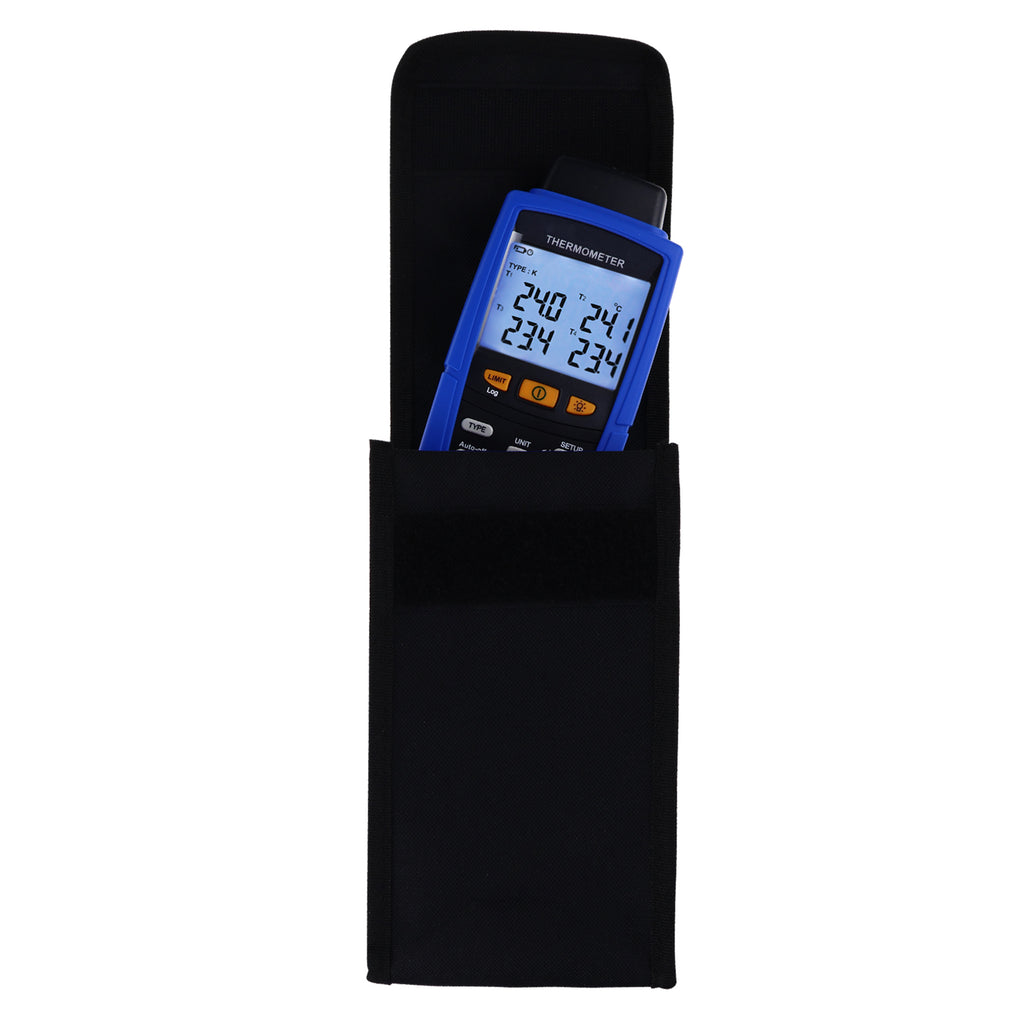

  • Carrying Pouch
