TM-192D Digital Triple Axis EMF ELF Magnetic Field Meter Gauss Meter 30Hz ~ 2000Hz Frequency

Out of stock
TM-192D
Features: Can display independent three single-axis (X,Y,Z) magnetic field readings or tri-axial total magnetic field reading With built-in datalogging capacity With Data Hold (HOLD), Maximum Hold...
$163.71 USD
Share on:

Features:

  1. Can display independent three single-axis (X,Y,Z) magnetic field readings or tri-axial total magnetic field reading
  2. With built-in datalogging capacity
  3. With Data Hold (HOLD), Maximum Hold (MAX) and Minimum Hold (MIN) function
  4. CE&ROHS marking and Certificate of Calibration
  5. Comes with USB PC Interface software
  6. Auto range or manual range
  7. Time and calendar function
  8. Low battery indication
  9. Auto power off function
  10. Single data record function



Specifications:

  • Continuity data logging interval range: 0 seconds(no data logging) to 99 hours, 99 minutes and 99 seconds
  • Datalogging capacity with memory size: 9999 data sets

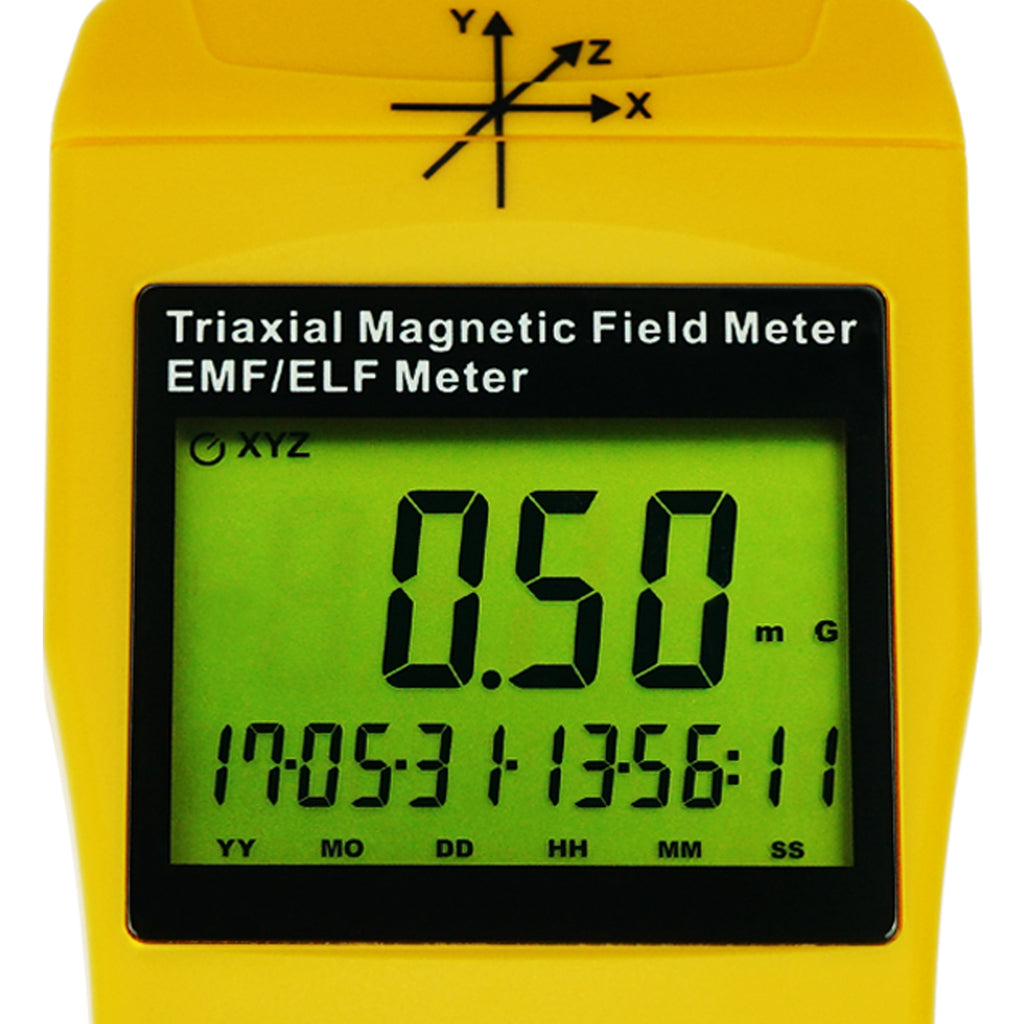

  • Display: 4 digits Triple LCD Display
  • Range: 20/200/2000 mG, 2/20/200µT
  • Resolution: 0.01/0.1/1 mG or 0.001/0.01/0.1µT
  • Frequency response: 30Hz ~ 2000Hz
  • Sensor: Triple Axis (X, Y, Z)
  • Accuracy: 20 mG ±(3.0% + 30dgt) at 50Hz/60Hz or 3µT ±(3.0% + 30dgt) at 50Hz/60Hz
  • Overload: LCD display ""OL""
  • Sample rate: 2.5 times per second

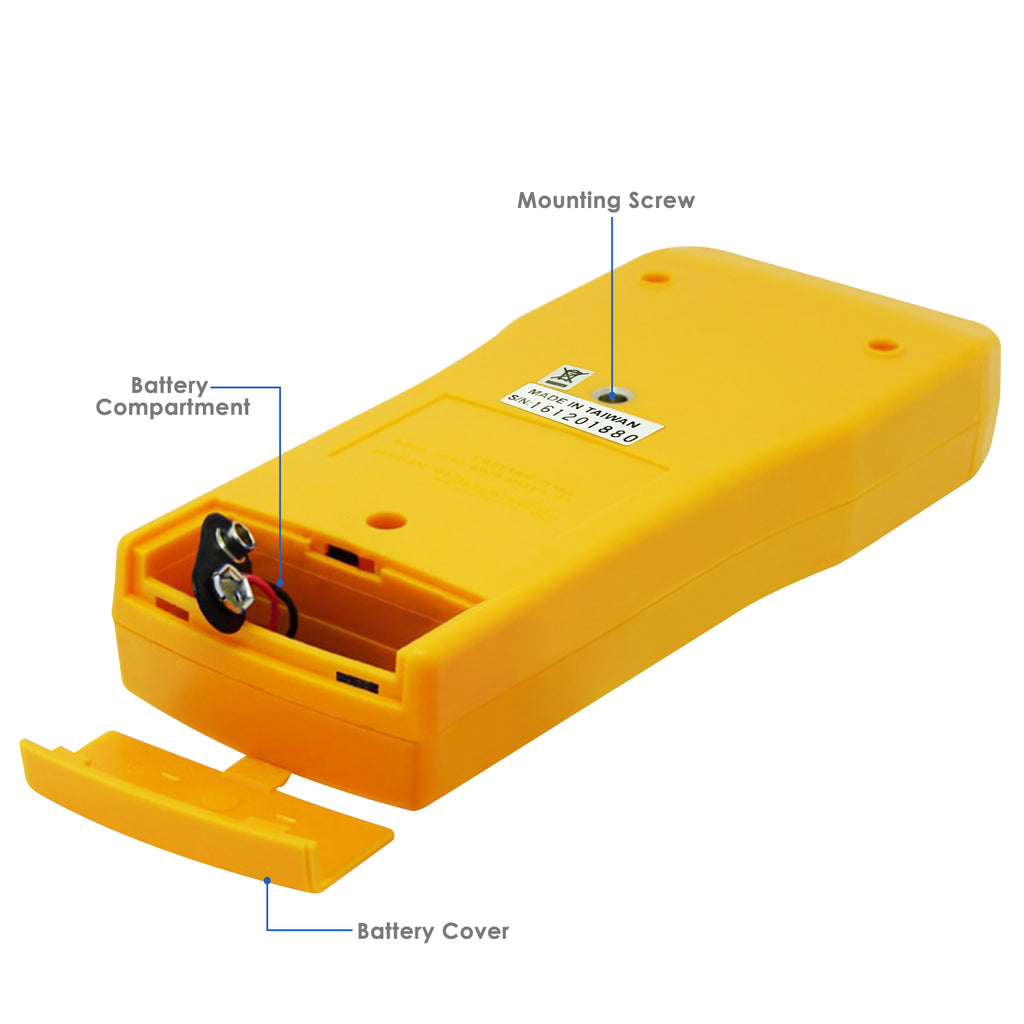

  • Power Supply: 1 x 9V Battery(included) or external AC to DC adapter(not included)

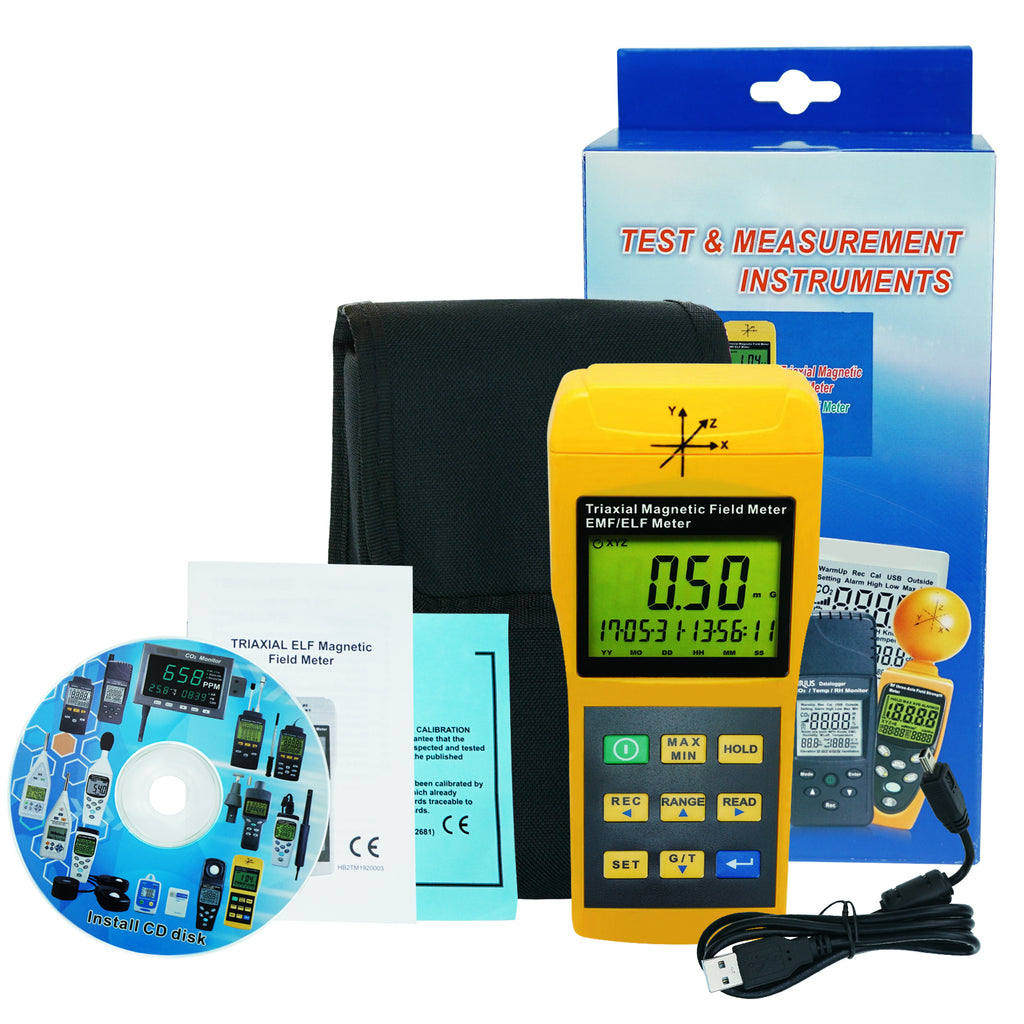

Set Includes:

  • 1 x Tri-axial Magnetic Field Meter
  • 1 x User Manual

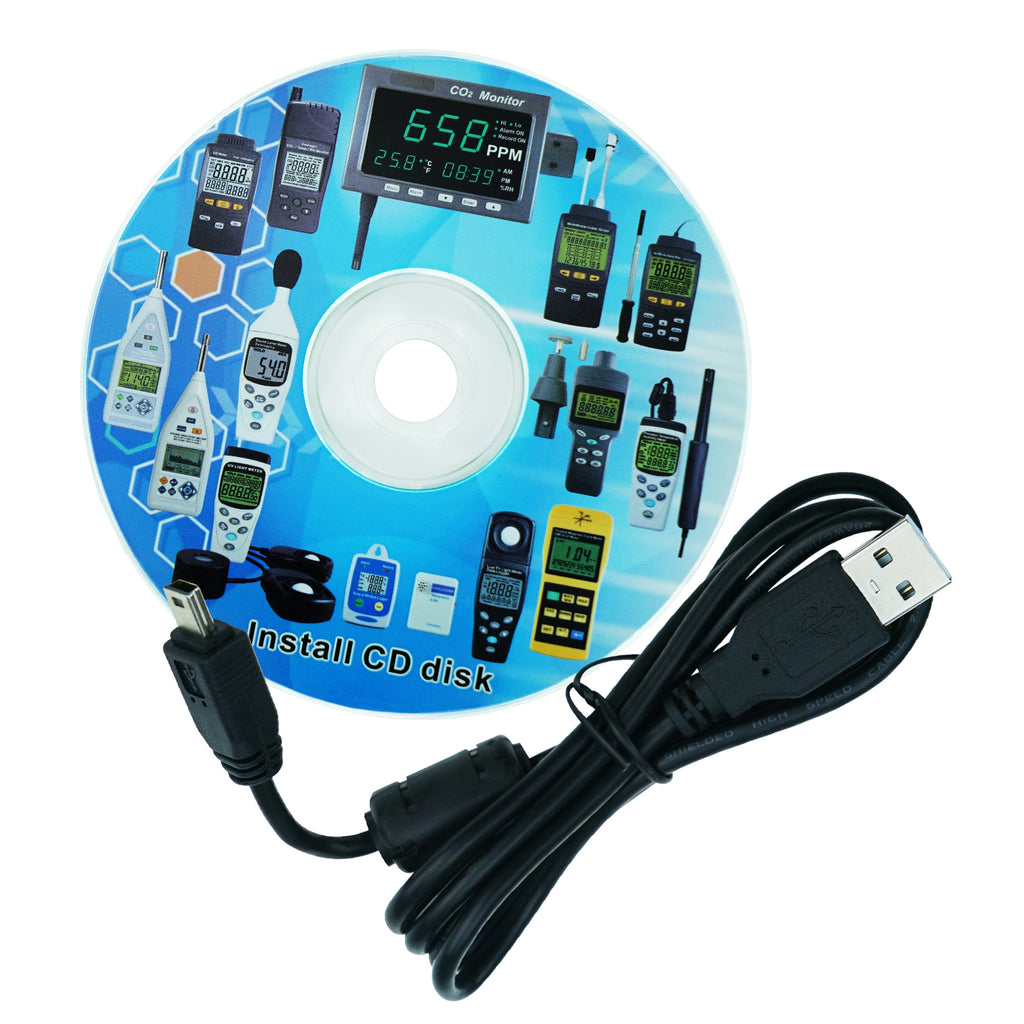

  • 1 x CD software and USB Cable
  • 1 x 9V Battery

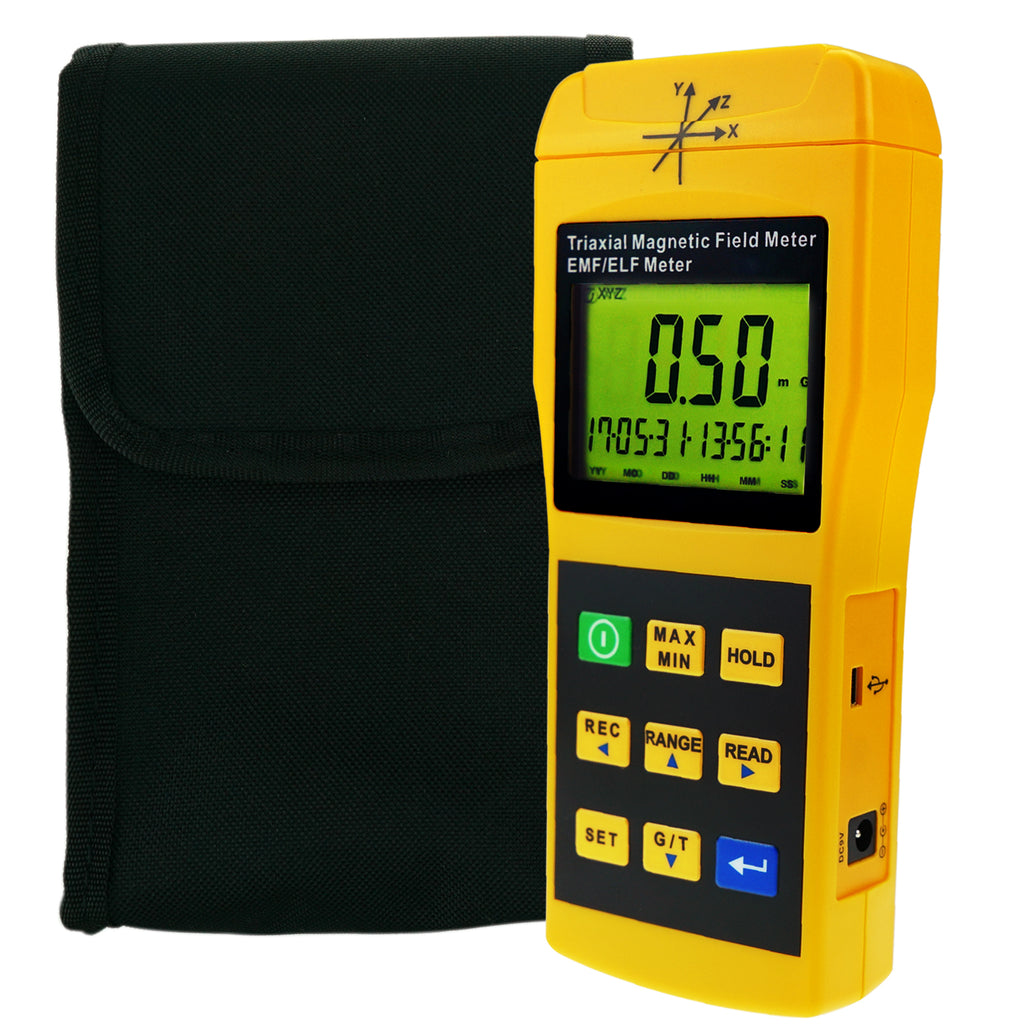

  • 1 x Carrying Pouch
  • 1 x Certificate of Calibration
  • 1 x Factory Standard Paper Box
