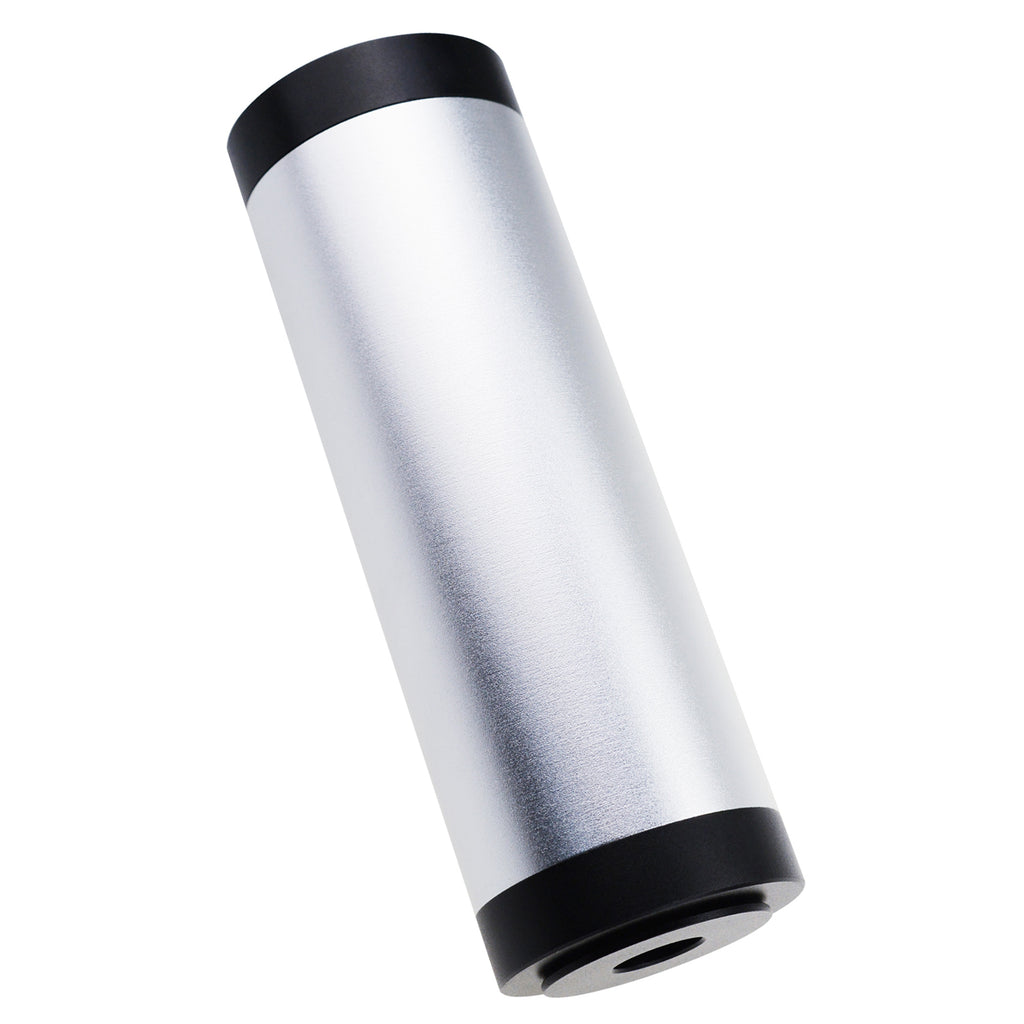

Design for fast & easy calibration of sound level meter, microphone and sound measuring system. Design to check the accuracy of many types of sound instruments. Moreover, the calibrator employs a solid state integrated circuitry that provides accurate and stable performance.
- Sensitivity calibration for microphones
- Suitable for acoustics field and laboratory use
- Sound Pressure Level
- High Accuracy
- Generates standard levels and frequencies
- Extremely low influence of static pressure
- Sensitivity calibration of microphones
- Designed for 1" and 1/2" microphones
- Battery Operated
Output Sound Level: 94db & 114db
Accuracy: ±0.3db (20°C, 760mm Hg)
Frequency: 1000±0.1%Hz (allows calibration with A, B, C or D weighting networks or linear)
Temperature range: -10~50°C (14 ~ 122 °F)
Standard: IEC942 Class I
Storage (with batteries removed) -40~65°C (-40 ~ 149 °F)
Temperature coefficient : 0 to 0.01dB/°C
Altitude Effects: Approximately0.1dB decrease for every 2000 feet increase in altitude from the sea level to 12,000 feet elevation or comparable atmospheric pressure change (approx. every 50mm of Hg decrease)
Power Supply: 9v transistor batteries NEDA 1604. Burgess 2U6 or equivalent.
Battery life approx.100 hours
Dimension: 48mm x 48mm x 138mm (5.43 x 1.89 x 1.89 inch)

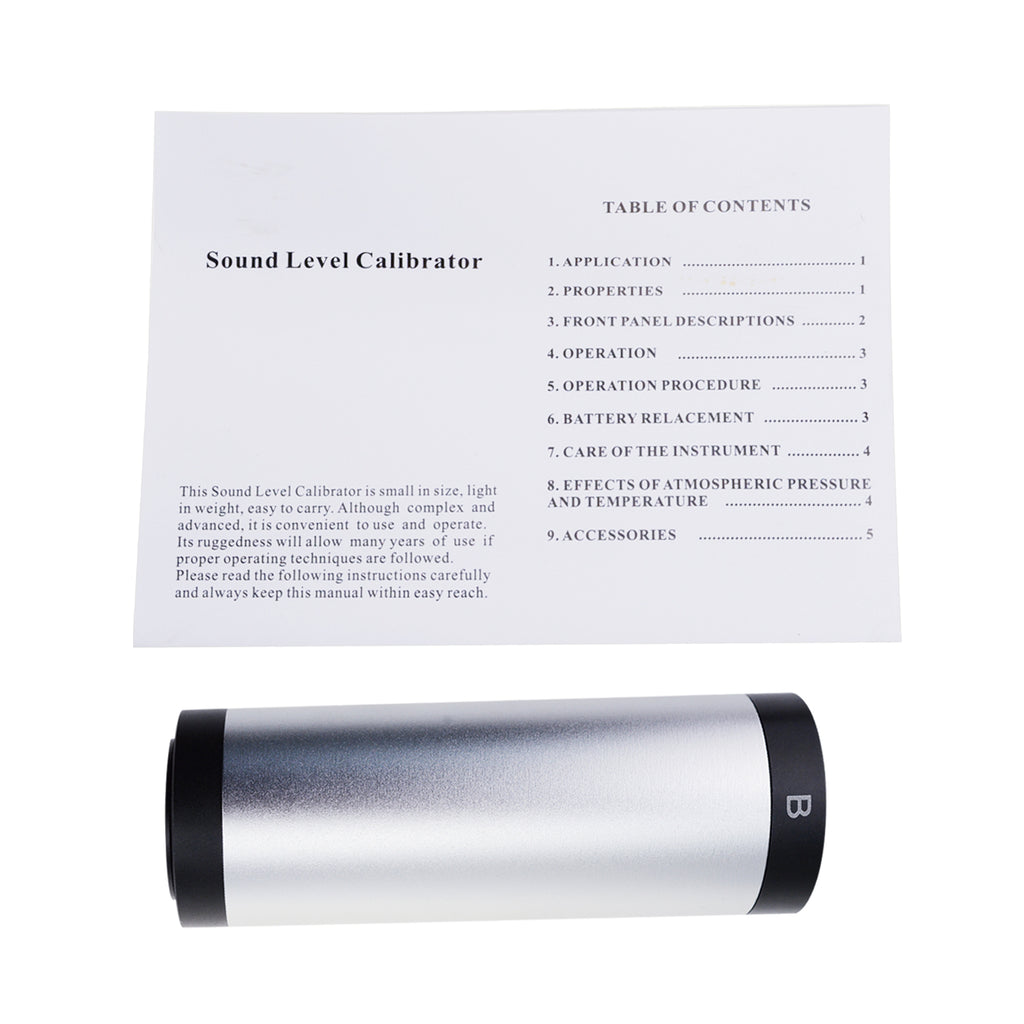

- 1 x Sound Level Meters Calibrator
- 1 x 9V Battery installed
- 1 x English Instruction Manual
- Standard factory packaging box
