CTTK-53 Network Cable Tester RJ45 RJ11 BNC 1394 Line Phone Wire Tracker

Out of stock
CTTK-53
This Cable tester finds the target wire required from numerous telephone wires and LAN cables. It has a function such as hunting, wire sorting, and circuit status testing. It also has features of q...
$72.90 USD
Share on:
This Cable tester finds the target wire required from numerous telephone wires and LAN cables. It has a function such as huntingwire sorting, and circuit status testing. It also has features of quickness and accuracy thus, it becomes an available tool for technicians in installations and maintenance of a weak current system, such as communication lines, comprehensive wiring circuit, etc. It is widely applicable to a telephone system, computer network, other metal wire circuit, and other fields.


Features:

  1. Hunt directly even when its connected with ethernet switch/router/PC terminal of different models startup
  2. Test 5E, 6E, telephone wire, coaxial cable, USB cable, 1394 line and other cables for troubleshooting
  3. RJ45 / RJ11 / BNC / USB / 1394 and other ports are included and the complex switch is not required
  4. LCD, the display results is more direct, more visual and clearer
  5. sound hint function of different circuit status
  6. 9V battery for power supply and low-voltage hint function


Specifications:

  • Display: Large screen LCD segmented display (effective visual area 54 x 26mm)
  • Cable Tested: RJ45/RJ11/BNC/USB/1394/ STP/UTP /Twin Twisted Cable/Coaxial Cable/Telephone Line and other different types
  • Cable Detected: RJ45/RJ11/BNC/USB/1394 and other metal wires
  • Operating Environment : -10 ~ 60°C
  • Signal Transmission Distance : >3km
  • Location of Wire Order Wand Cable Failure: Failure test, open circuit, short circuit, reversed position, crossing and series winding
  • Power : 2 x 9V battery
  • Dimension :
    • Emitter : 185 x 80 x 32mm
    • Receiver : 218 x 46 x 29mm
    • Remote Identifier : 107 x 30 x 24mm

Set Includes:

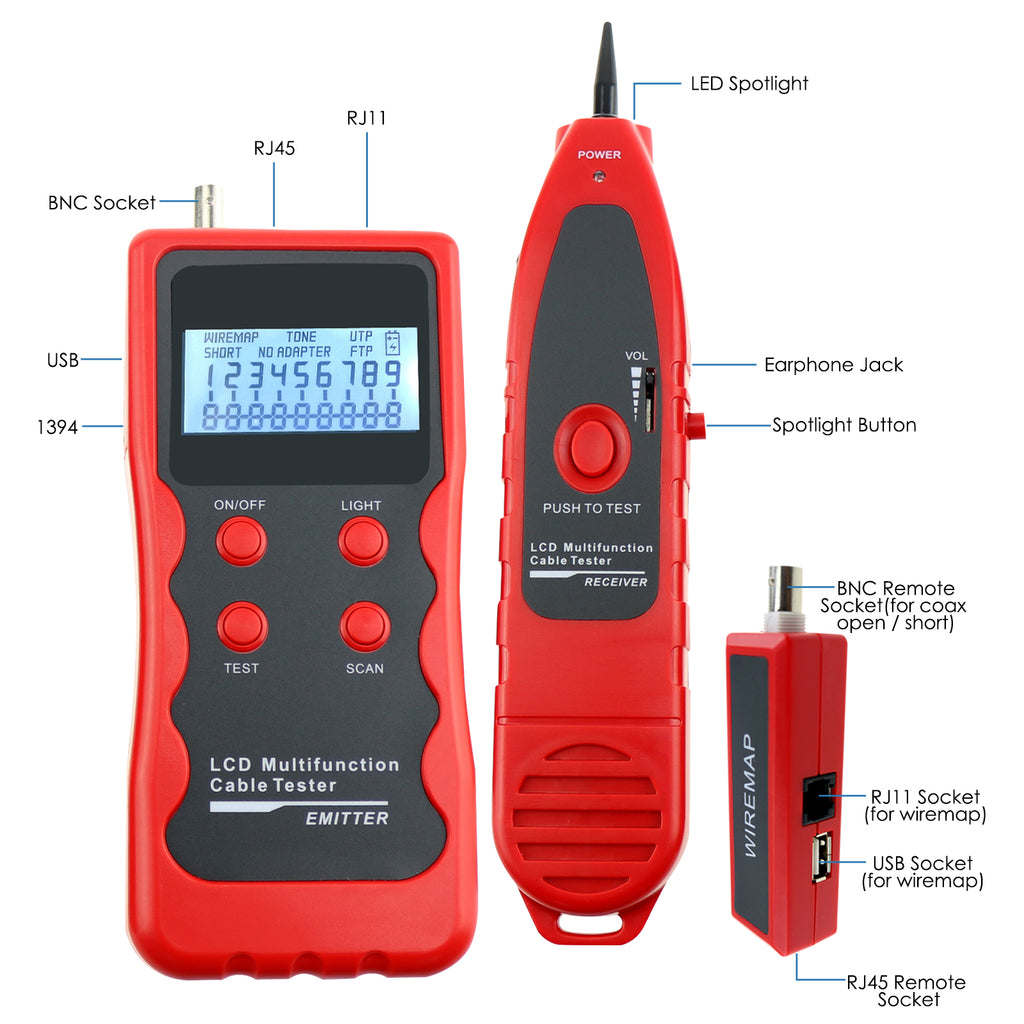

  • 1 x Cable tester
  • 1 x Receiver
  • 1 x Wire map
  • 2 x 9V Battery
  • 1 x Earphone
  • 1 x RJ11-to-Alligator converter
  • 1 x RJ45 Adapter cable
  • 1 x RJ11 Adapter cable
  • 1 x English Instruction Manual
  • 1 x Kit Bag
  • 1 x Quality Certificate
