TM-190 EMF ELF Multi-Field Meter RF Gauss Meter 0.02 ~ 2000mG (0.02 to 200 uT)

In stock
TM-190
The meter is equipped with three individual aerial sensors to measure EMFs. The overload indications can be displayed simultaneously on three axes (X, Y, Z, it can test the Electromagnetic field (l...
$164.90 USD
Share on:

The meter is equipped with three individual aerial sensors to measure EMFs. The overload indications can be displayed simultaneously on three axes (X, Y, Z, it can test the Electromagnetic field (low frequency), Electric field (low frequency) and RF Electric field (high frequency).

Features:

  1. 3 measurements: Electromagnetic field, Electric field, RF Strength field
  2. 4 inches Color TFT LCD with 4 digits
  3. Electromagnetic field, Electric field, RF Strength Warning Indicator: Good (in GREEN) / Normal (in YELLOW) / Warning (in RED)
  4. Data Hold Indication/Over Load display
  5. Language: English, Traditional/Simplified Chinese, Japanese, Spanish
  6. CE Marking and Calibration Certificate

Specifications:

  • Auto Power Off Time Setting: No; 1; 3; 5; 10; 15; 30
  • Keys/Alarm Sounds options: Enable(Sound Level setting:1/2/3); Disable
  • LCD display Brightness options: Low, Middle, High
  • Magnetic unit:Gauss(mG) or. Tesla(uT)
  • RF Strength Unit: uW/m²~mW/m², uW/cm², mV/m~V/m, mA/m, and dBm
  • RF Historical Records: Up to 20 groups
  • Magnetic Field:
    • Sensor Type: LF Magnetic Fields Triple axis(X,Y,Z)
    • Range: 0.02~20mG, 0.02~200µT.
    • Resolution: 0.01/0.1/1 mG or 0.01/0.1/1 µT.
    • Frequency response: 50Hz/60Hz
    • Accuracy: ±(15%+100dgt)
  • Electric Fields
    • Sensor Type: LF Electric Fields
    • Range: 50V/m to 2000V/m
    • Resolution: 1 V/m
    • Frequency response: 50Hz/60Hz
    • Accuracy: ± (7% + 50dgt).
  • RF Electric Strength:
    • Sensor Type: RF Strength
    • Range: 0.2μW/m²~554mW/m²
    • Resolution: 0.2μW/m², 0.02μA/m, 0.2mV/m, 0.02μW/cm², 1dB
    • Frequency range:50MHz to 3.5GHz.
    • Accuracy: ± 2dB at 2.45GHz

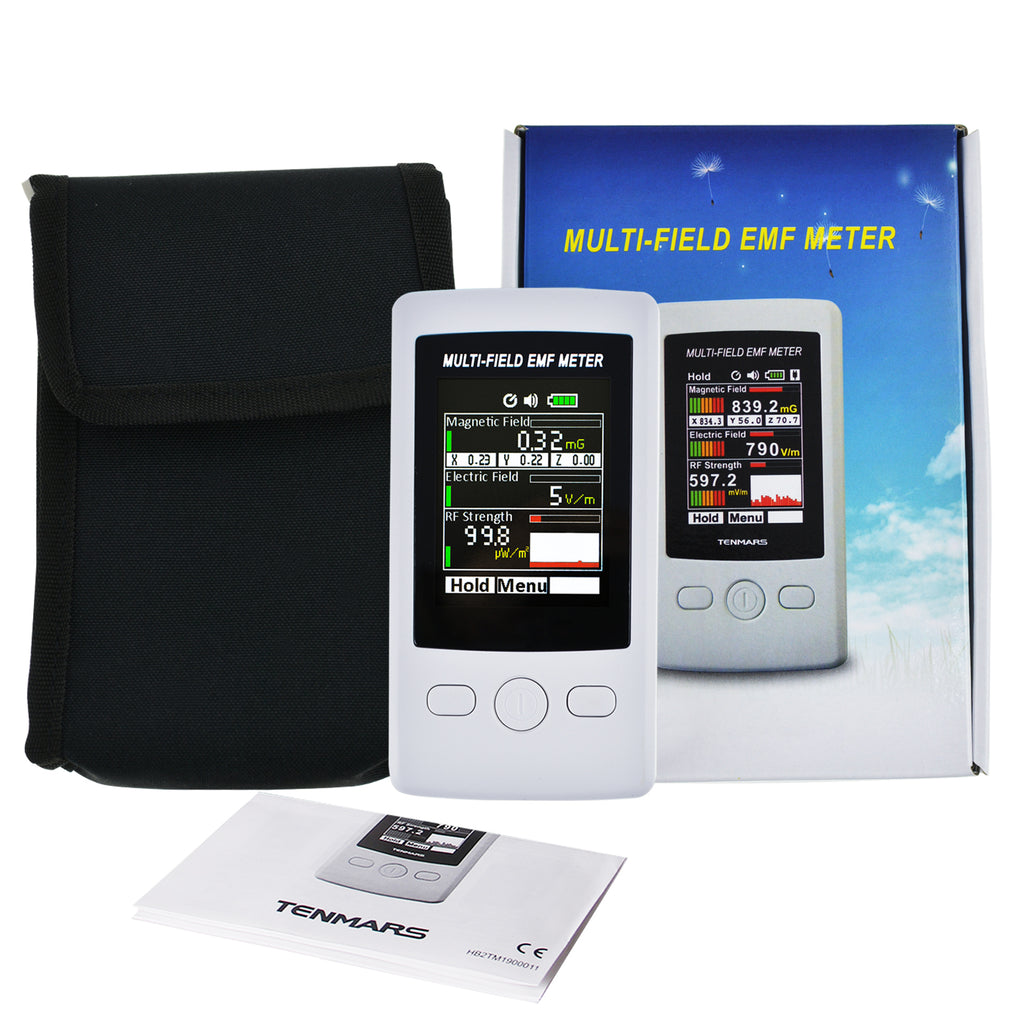

Set Includes:

  • 1 x Handheld Meter
  • 1 x English User Manual
  • 1 x Certificate of Calibration

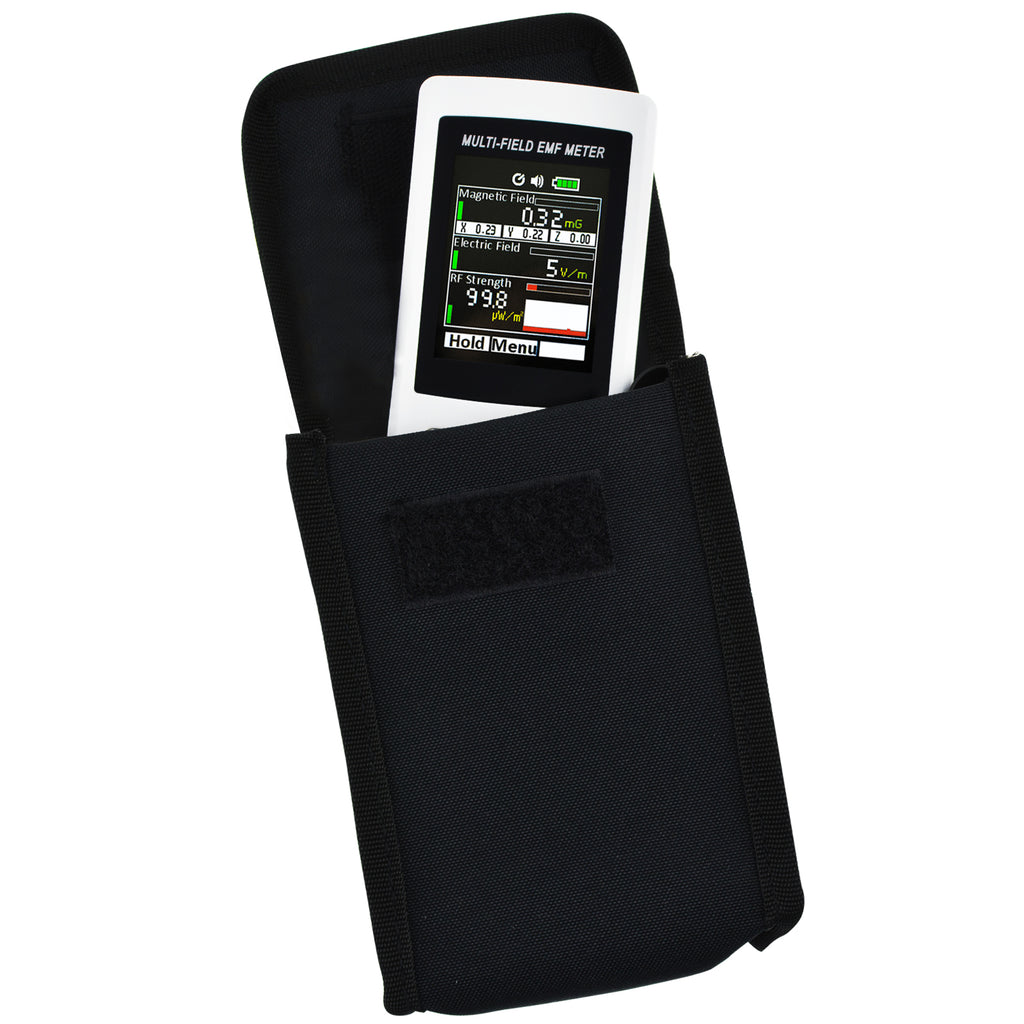

  • 1 x Handheld Pouch
  • 3 x AAA Alkaline Battery (1.5V)
