TMTK-897 Ultrasonic Digital 1.00-200.00mm Thickness Meter Metal/Non-Metal

In stock
TMTK-897
Is a handheld microprocessor-controlled ultrasonic thickness gauge specifically designed to measure the thickness of metallic and non-metallic materials such as aluminium, titanium, plastics, ceram...
$209.90 USD
Share on:

Is a handheld microprocessor-controlled ultrasonic thickness gauge specifically designed to measure the thickness of metallic and non-metallic materials such as aluminium, titanium, plastics, ceramics, glass, plastics including rubber and other good ultrasonic wave conductors.


Features:

  1. CE Approved
  2. Measure ultra thin materials from 1 mm thickness
  3. Microcomputer LSI circuit and crystal time base
  4. Capable of metering the thickness of a metal pipe
  5. With high power of emission and broad of receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
  6. Applicable to measure the thickness of many materials, e.g. Steel, Cast Iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.



Specification:

  • Operating Principle: ULTRASONIC
  • LCD display : 4 digits, 10 mm LCD
  • Measuring method: Ultrasonic pulse echo

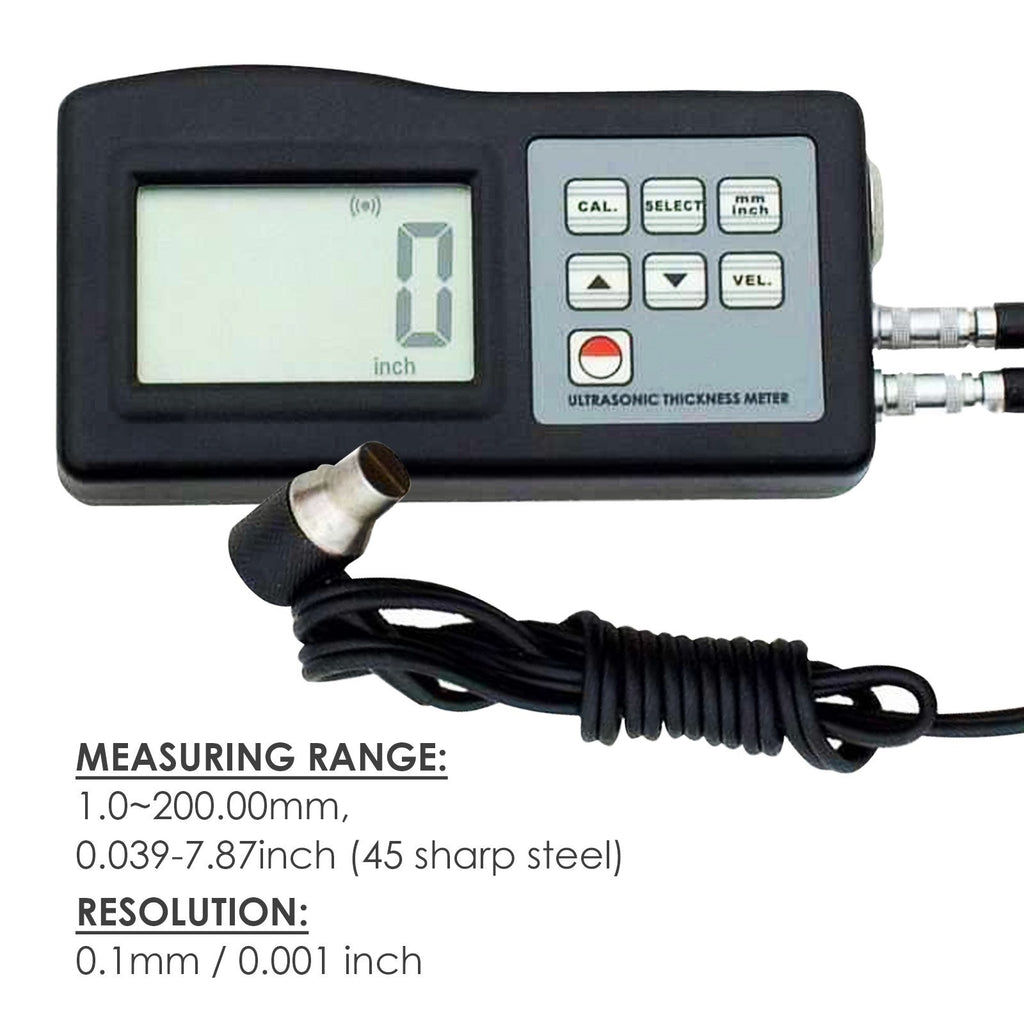

  • Measuring range (metric/imperial)1.0~200.00mm, 0.039-7.87inch (45 sharp steel)
  • Resolution: 0.1mm / 0.001 inch
  • Accuracy: ±(0.5%n+0.1)
  • Sound velocity: 500 - 9000m/s
  • Diameter of sensor : 8 mm (0.31' inch)
  • Length of sensor : 90 cm (35' inch)
  • Weight of sensor : approx. 40g

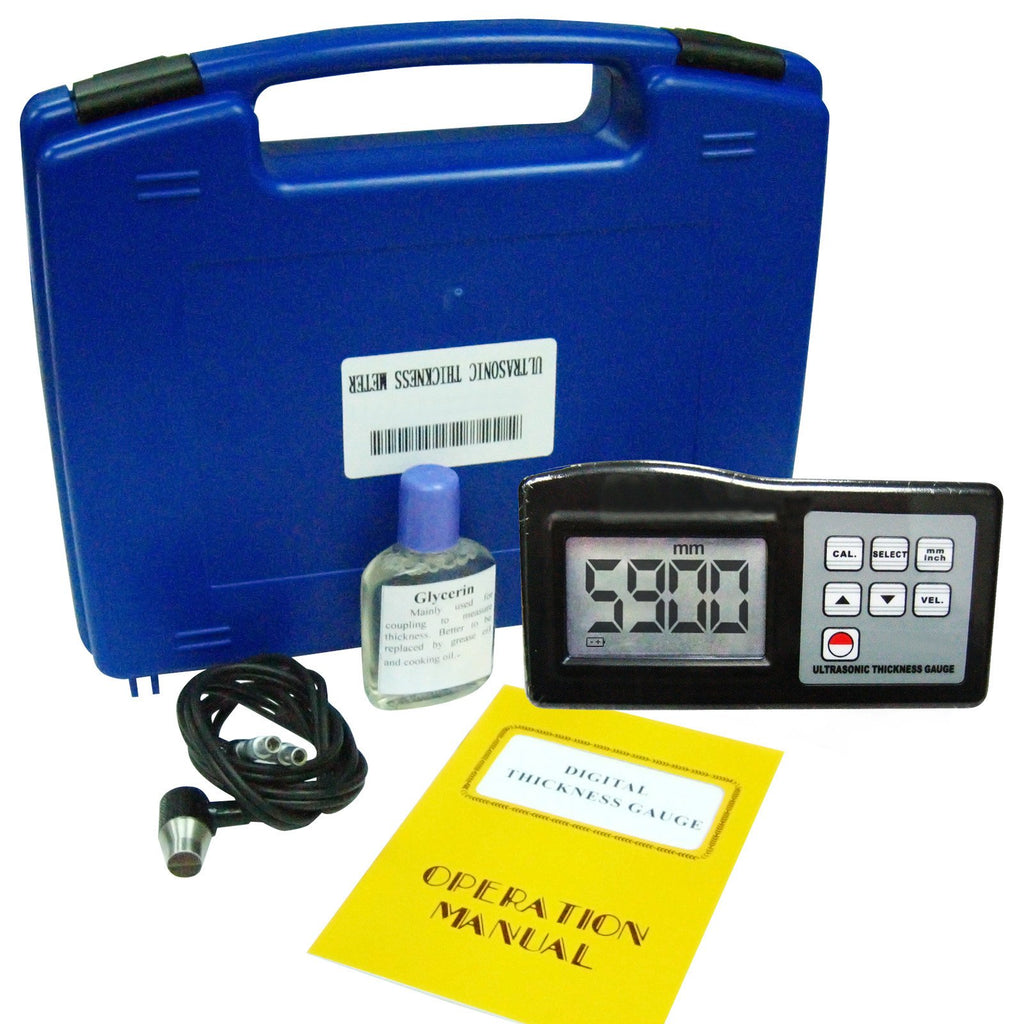

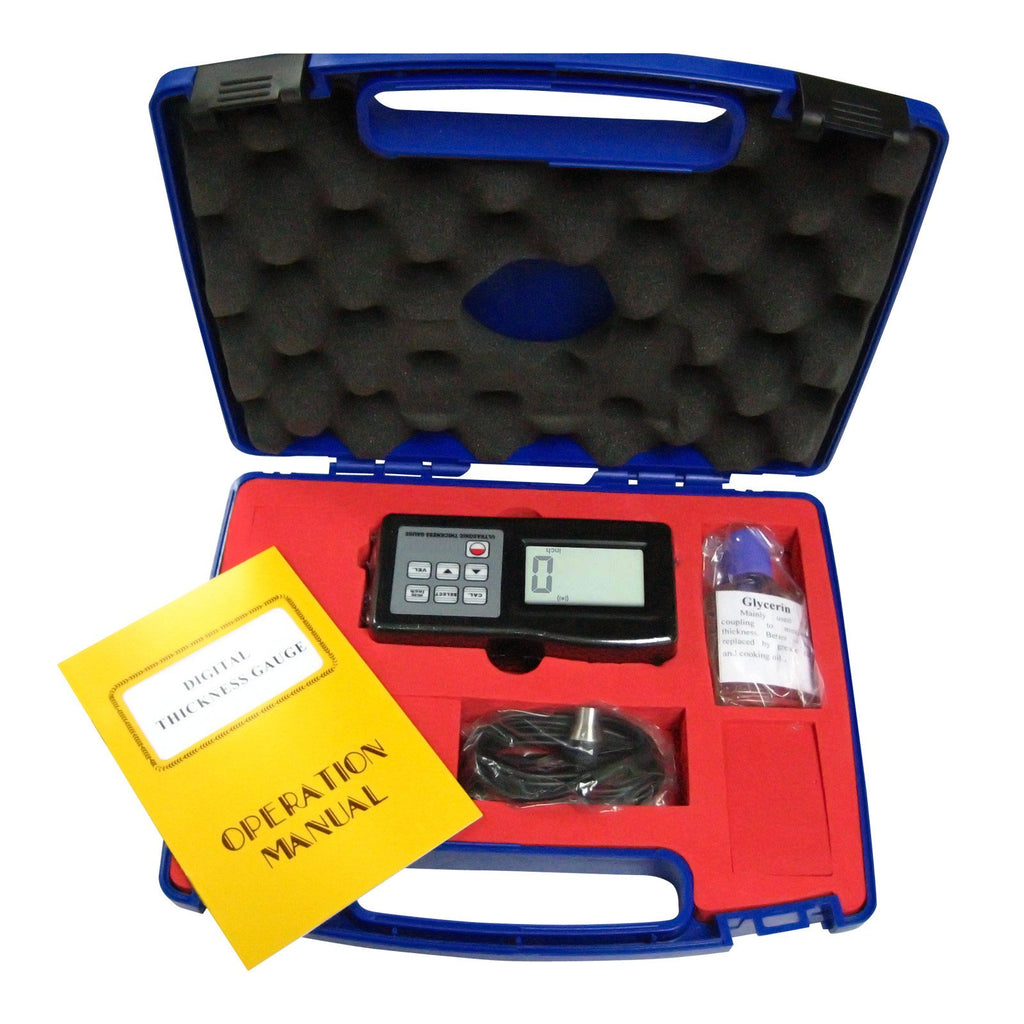

Set Includes:

  • 1 x Ultrasonic Thickness Gauge
  • 1 x bottle of Glycerin
  • 1 x Ultrasonic sensor
  • 1 x Operating Manual
  • 1 x Protective Carrying Case
