TMTK-763FN Paint Coating Thickness Meter Gauge Tester F/NF Probes 99 Groups Measure Aluminum & Iron

In stock
TMTK-763FN
This advanced coating thickness meter with wide measuring range for automotive and painting applications. Uses magnetic induction & eddy current principle to measure the thickness of magnetic a...
$223.50 USD
Share on:

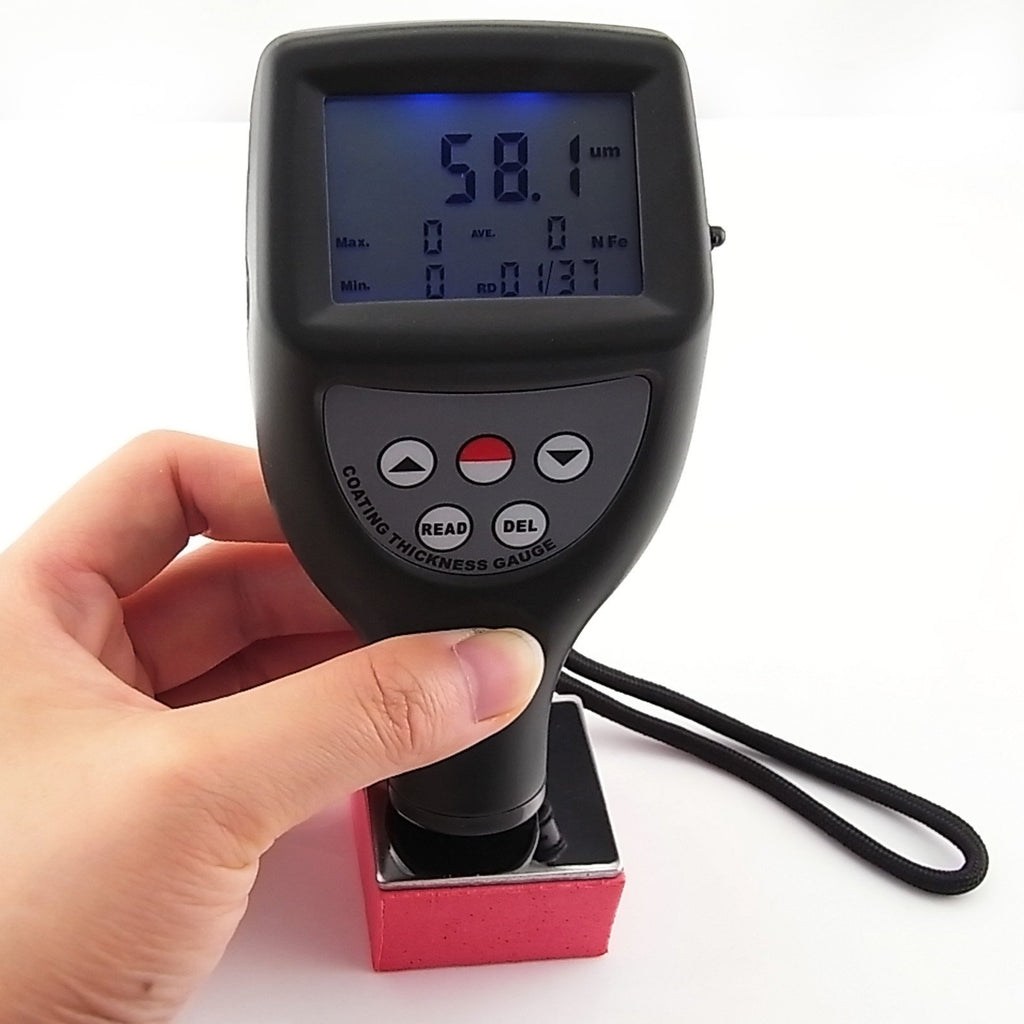

This advanced coating thickness meter with wide measuring range for automotive and painting applications. Uses magnetic induction & eddy current principle to measure the thickness of magnetic and non-magnetic surface and detect the thickness of a nonmagnetic coating on a magnetic substrate (ferrous, F) or an insulating coating on a non-magnetic conductive substrate (non-ferrous, NF).

Features:

  1. Stores up to 99 groups of measurement
  2. With backlight function
  3. Meets the standards of both ISO2178 and ISO2361
  4. Durable light weight ABS plastic housing
  5. Wide measuring range and high resolution
  6. Automatic substrate recognition
  7. Built-in F & NF probe
  8. Has CE marking
  9. Digital display with no guessing errors
  10. Single & Continuous measurement mode
  11. Switchable between mils and microns
  12. Manual and automatic shut down
  13. Used the exclusive Micro-computer LSI circuit and crystal time base
  14. Low Battery Indicator
  15. Automatic or Manual Power off
  16. Automatic Calibration



Specification

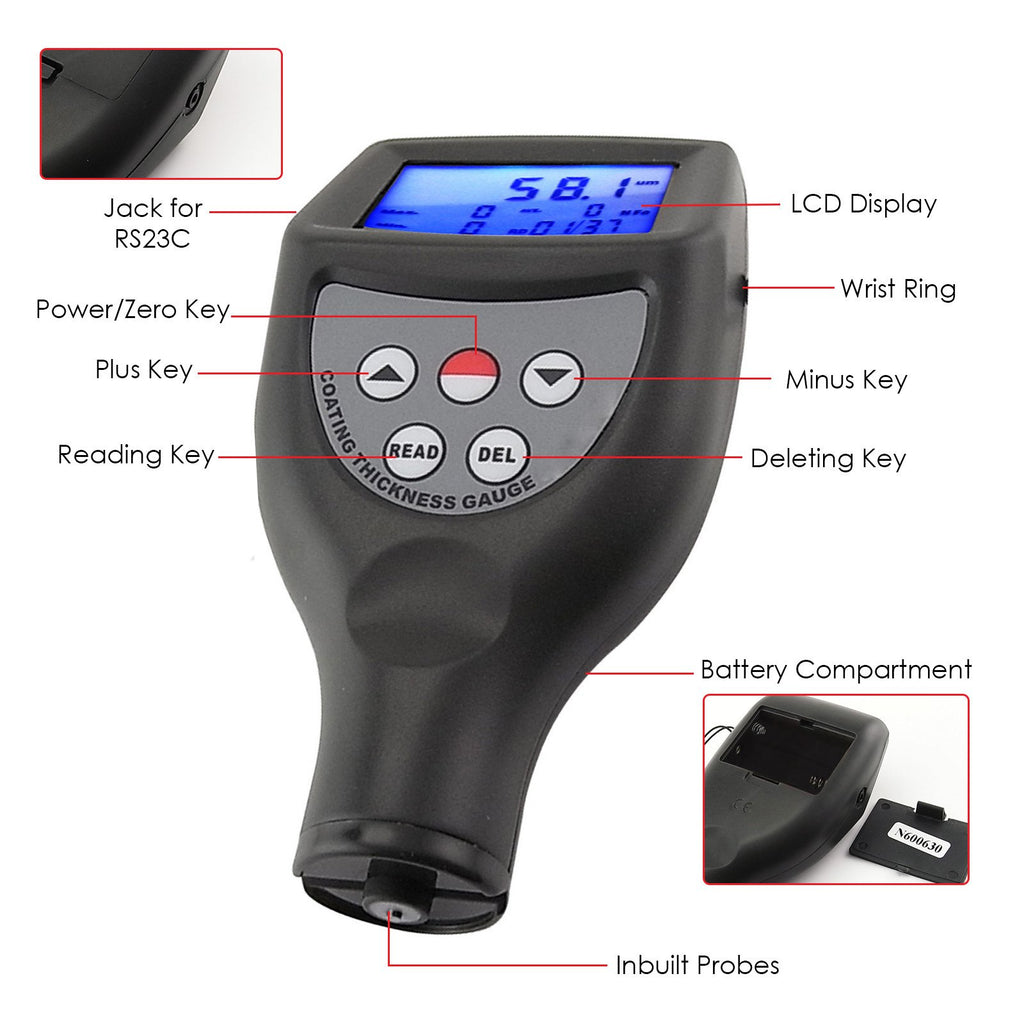

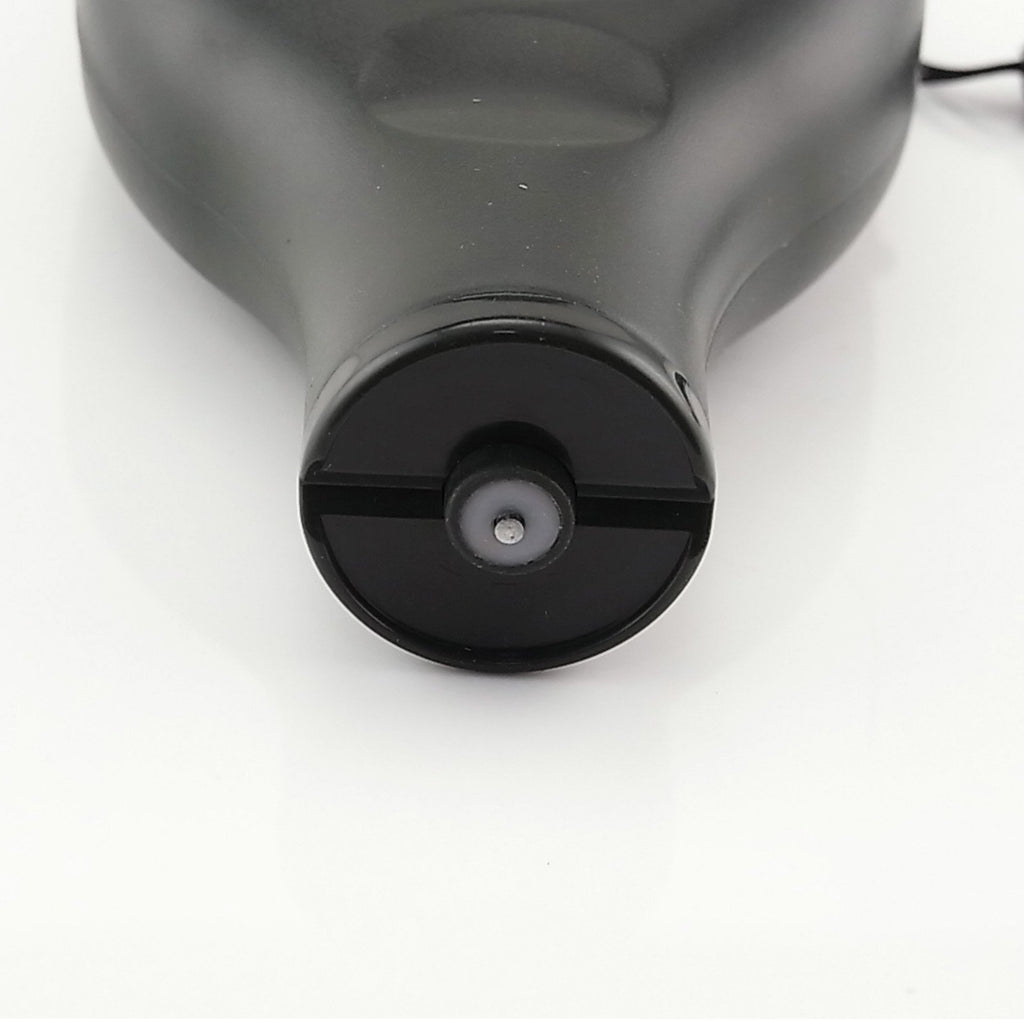

  • Probes: Built-in F probe & NF probe
  • Screen Display : 4 digits, 10mm LCD

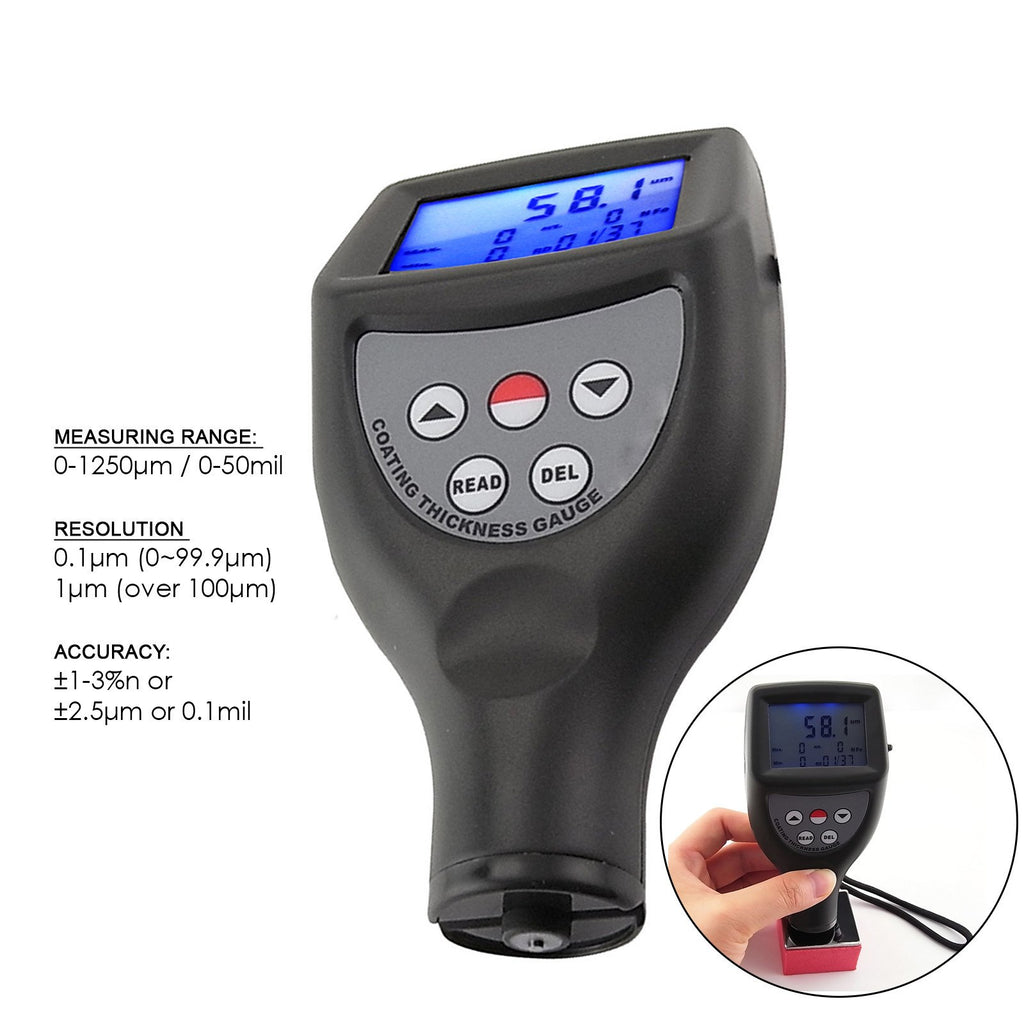

  • Coating Thickness Range: 0-1250μm / 0-50mil
  • Resolution
    • 0.1μm (0~99.9μm)
    • 1μm (over 100μm)
  • Accuracy: ±1-3%n or ±2.5μm or 0.1mil (which ever is greater)
  • PC Interface: RS232C interface (CD and cable are not included in the set)

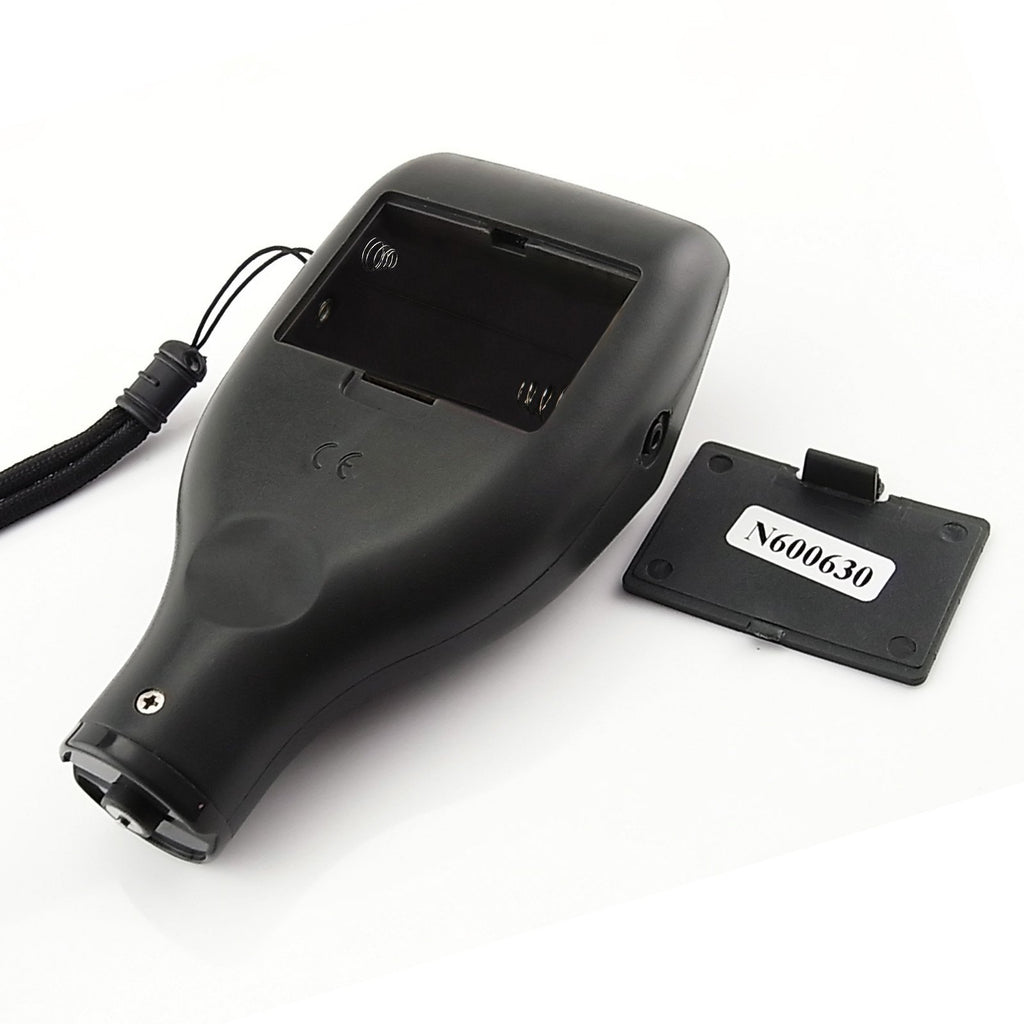

  • Power supply: 2 x 1.5V AAA battery
  • Operating Condition:
    • Temperature: 0~50°C (32°F-104°F)
    • Humidity: <95%
  • Automatic substrate recognition without guessing

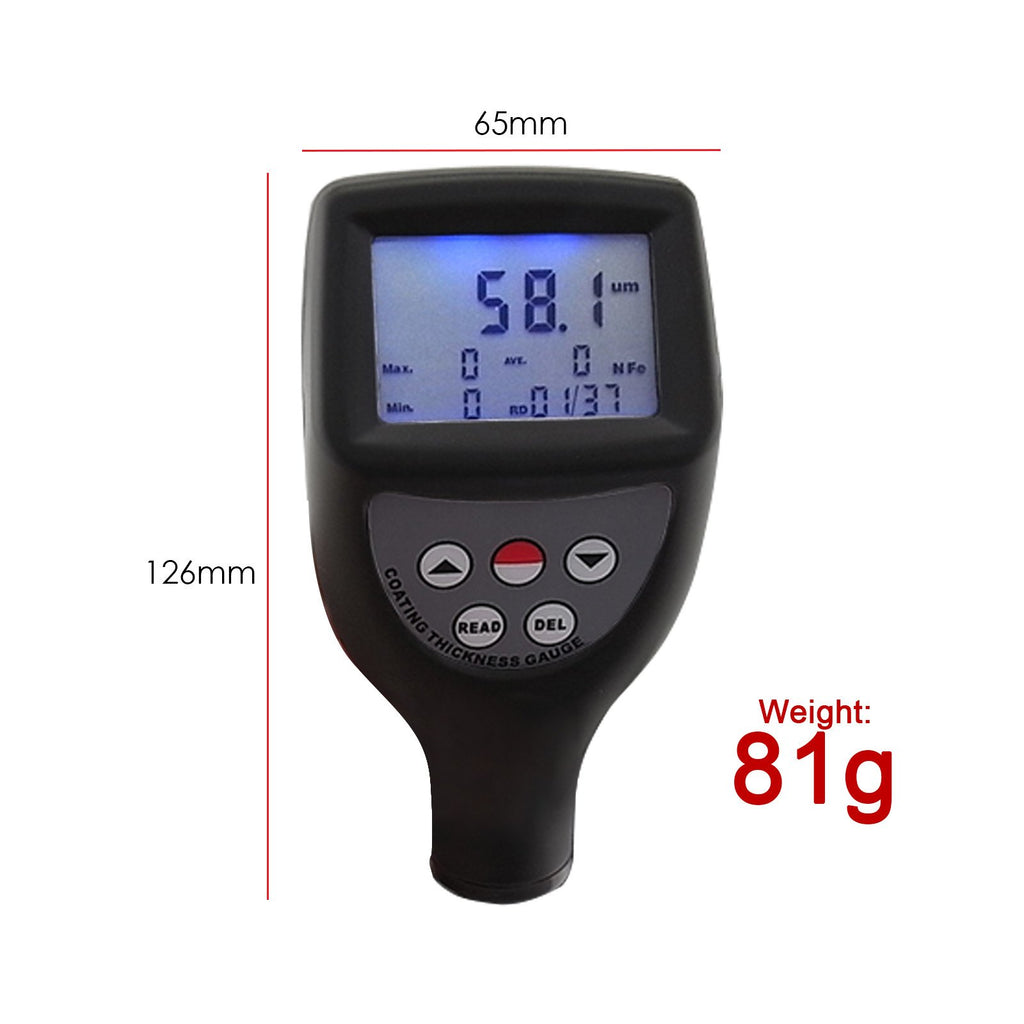

  • Dimensions: 126 x 65 x 35mm (5.0 x 2.6 x 1.6 inch)
  • Weight: 81g (not including battery)

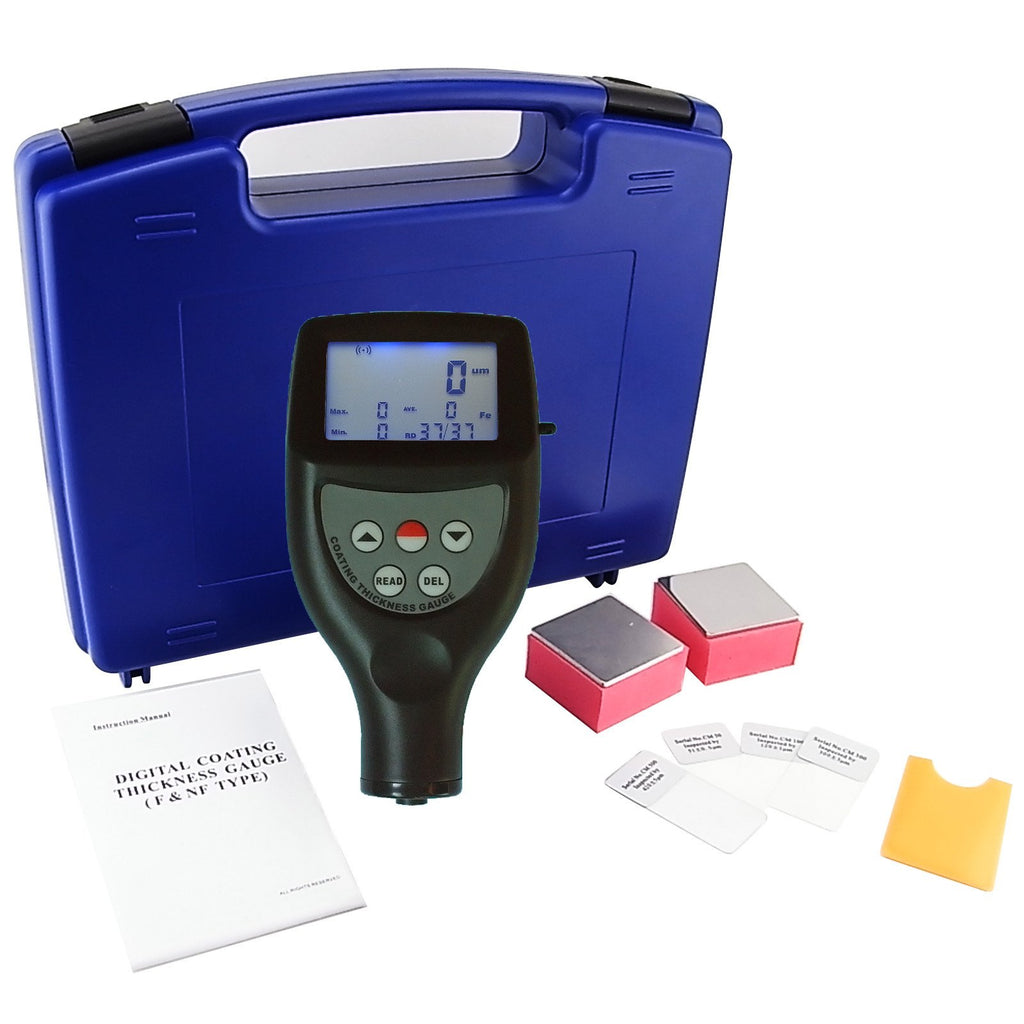

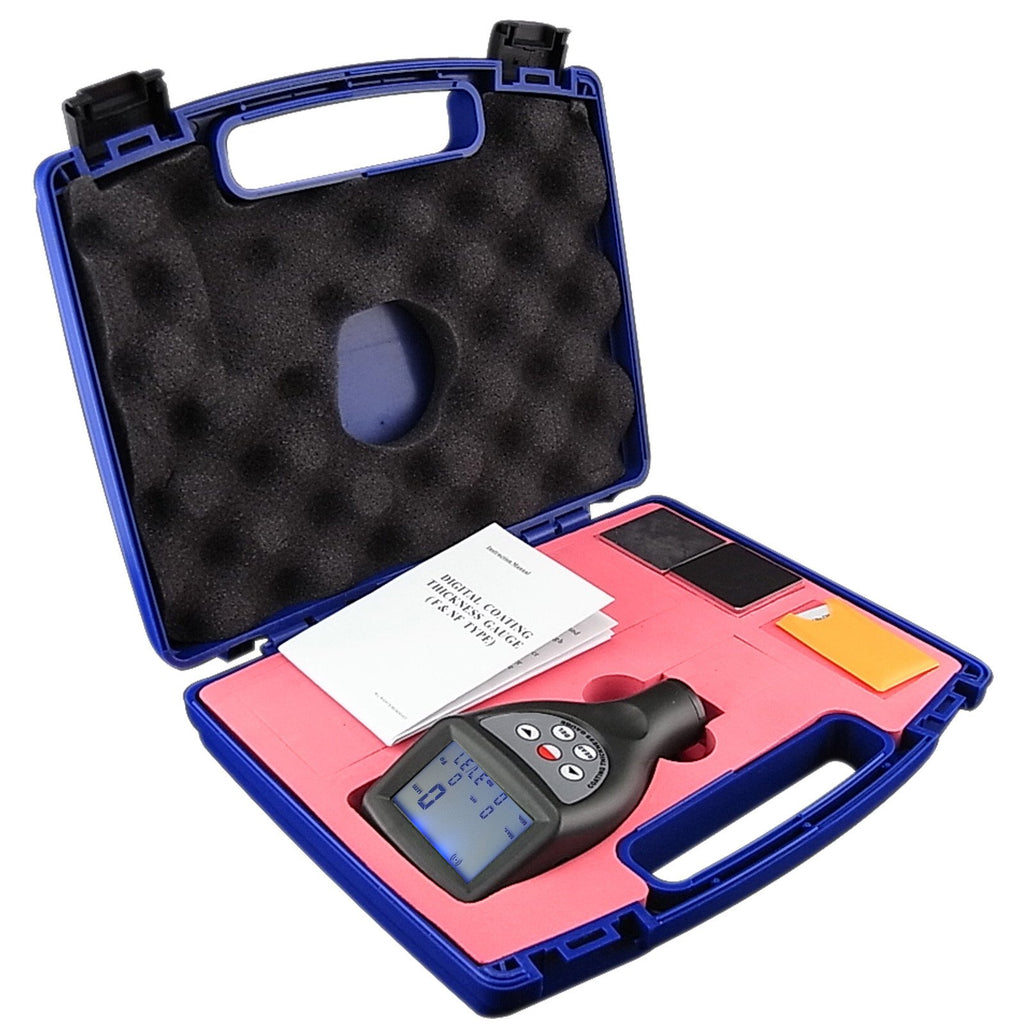

Set Includes:

  • 1 x Coating Thickness Meter

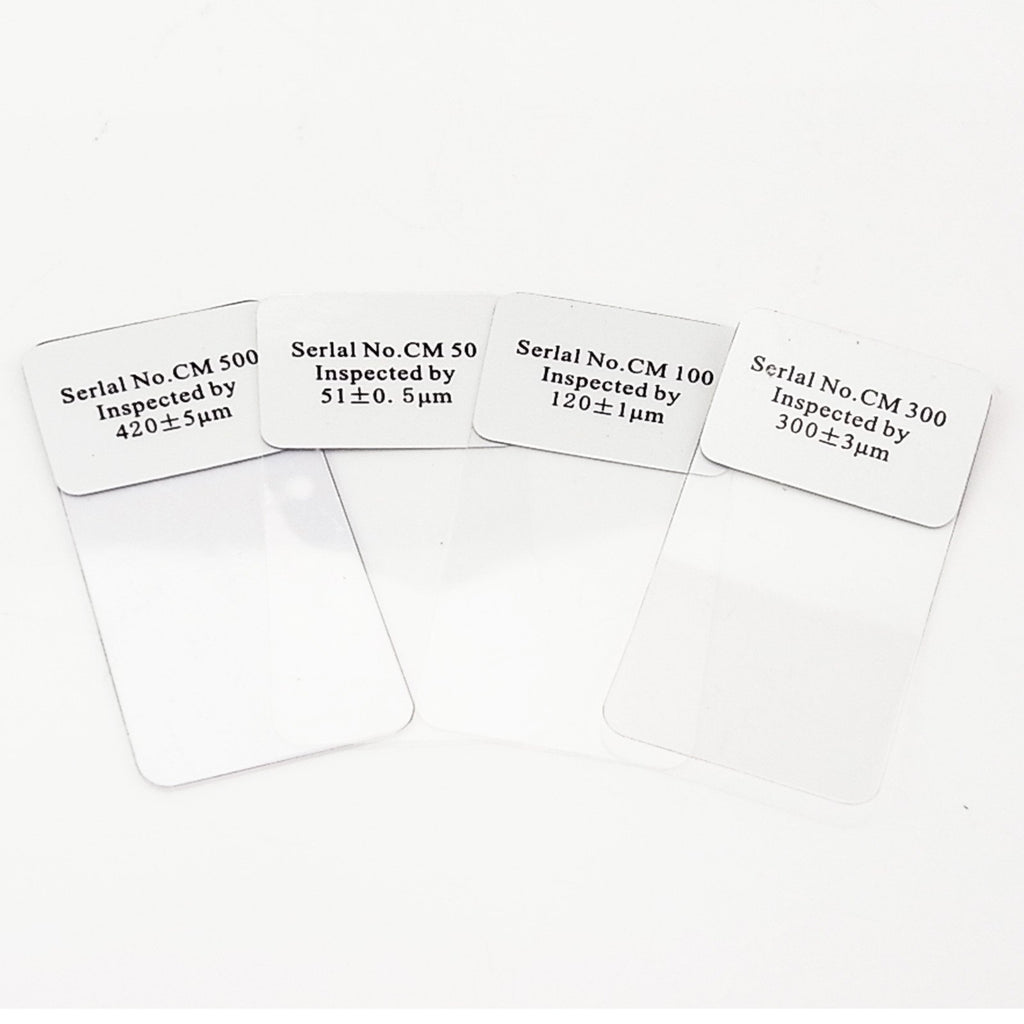

  • 4 x Calibration foils
  • 1 x Aluminum substrates
  • 1 x Iron substrates
  • 1 x English Instruction Manual
  • 1 x Sturdy & Protective Storage Case
