TMTK-762FN Digital Paint Coating Thickness Meter Gauge F/NF Probe Magnetic Induction / Eddy Current

In stock
TMTK-762FN
A coating thickness meter that conquers the difficulties of non-destructive measuring of coating thickness on both magnetic and non-magnetic base that can be used on many applications even on appli...
$274.90 USD
Share on:

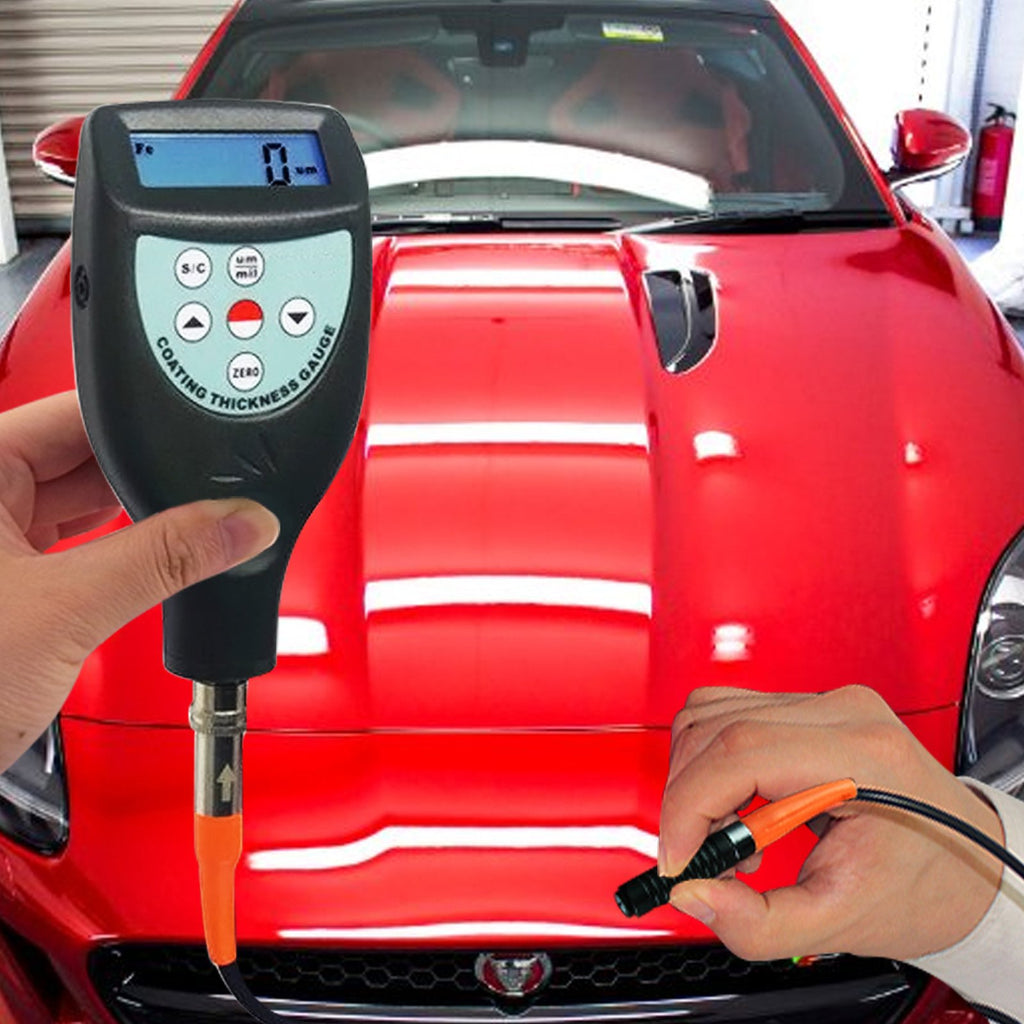

A coating thickness meter that conquers the difficulties of non-destructive measuring of coating thickness on both magnetic and non-magnetic base that can be used on many applications even on applications that require greater precision. It is the most advanced and top quality rugged meter that uses magnetic induction and Eddy current principle to measure the thickness of a magnetic coating on non-magnetic base.



Features:

  1. Capable to measure magnetic & nonmagnetic materials in high resolution
  2. Wide measuring range
  3. CE marking
  4. Conforms and passed the international standards ASTM, DIN, BS, and ISO-2178 as well as ISO-2360
  5. With automatic substrate recognition
  6. Provides single & continuous measurement mode
  7. With manual and automatic shut down
  8. With Zero Calibration for both F & NF probes
  9. Lightweight and provides single-handed menu navigation


Specification:

  • Operating principle: magnetic induction/eddy current (F/NF)
  • Display: 4 digits, 10mm LCD
  • Measuring Range: 0-1250um/0-50mil
  • Resolution: 0.1um (0~99.9um), 1um (over 100um)
  • Accuracy: ±1-3%n or ±2.5um or 0.1mil(which ever is greater)
  • Power supply: 4 x 1.5V AAA (UM-4) battery
  • Operating Conditions: 0~50°C (32°F-104°F) Temperature, <80% Humidity
  • With 2 separate probe(s)
  • Automatic substrate recognition without guessing / choosing the probes
  • Dimensions: 126 x 65 x 27mm
  • Weight: 81g (not including battery)


Set Includes:

  • 1 x Paint Coating Thickness Meter
  • 4 Calibration foils
  • 1 x F Probe
  • 1 x NF Probe
  • 1 x Aluminum & Iron substrates
  • 1 x English Operations Manual
  • 1 x Protective Carrying Case
