TK494PLUS Android Smartphone Thermal Imager – Turn Your Phone into a Professional IR Camera Temperature Measurement with Photo Video Capture

In stock
TK494PLUS
Key Features: ✔ High-Resolution IR Imaging (256×192 Vanadium Oxide Detector)✔ Real-Time Temperature Measurement (-15°C to 550°C / 5°F to 1022°F)✔ 10 Color Palettes (White Hot, Black Hot, Rainbow, I...
$221.90 USD
Share on:

Key Features:

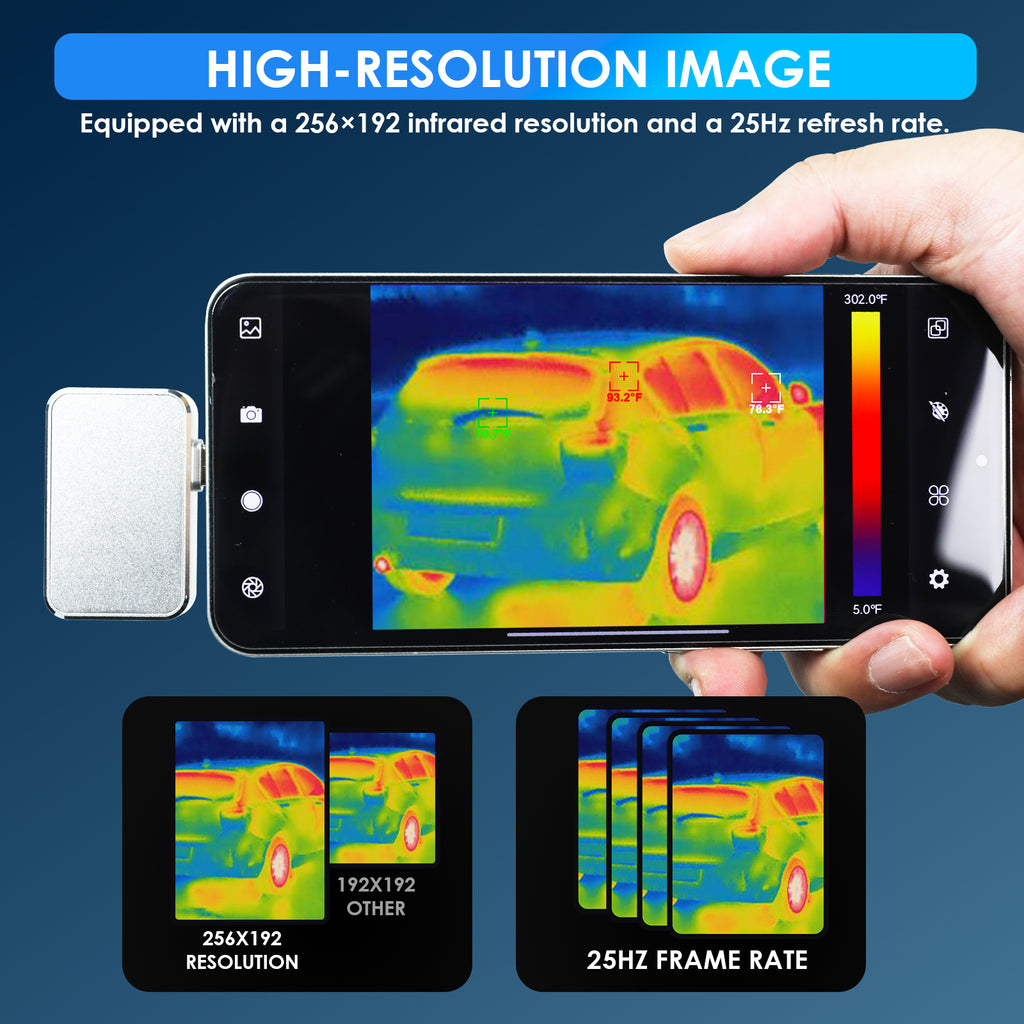

✔ High-Resolution IR Imaging (256×192 Vanadium Oxide Detector)

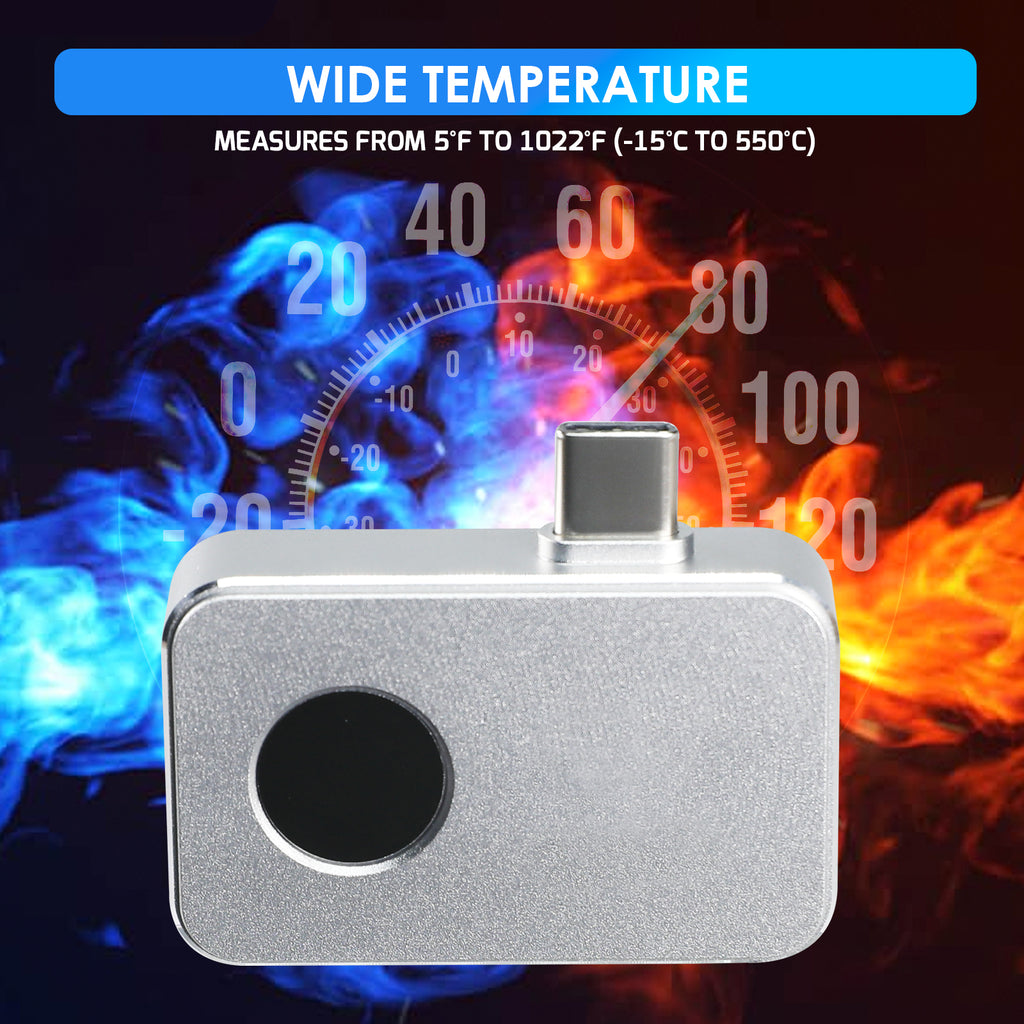

✔ Real-Time Temperature Measurement (-15°C to 550°C / 5°F to 1022°F)
✔ 10 Color Palettes (White Hot, Black Hot, Rainbow, Iron Red & more)

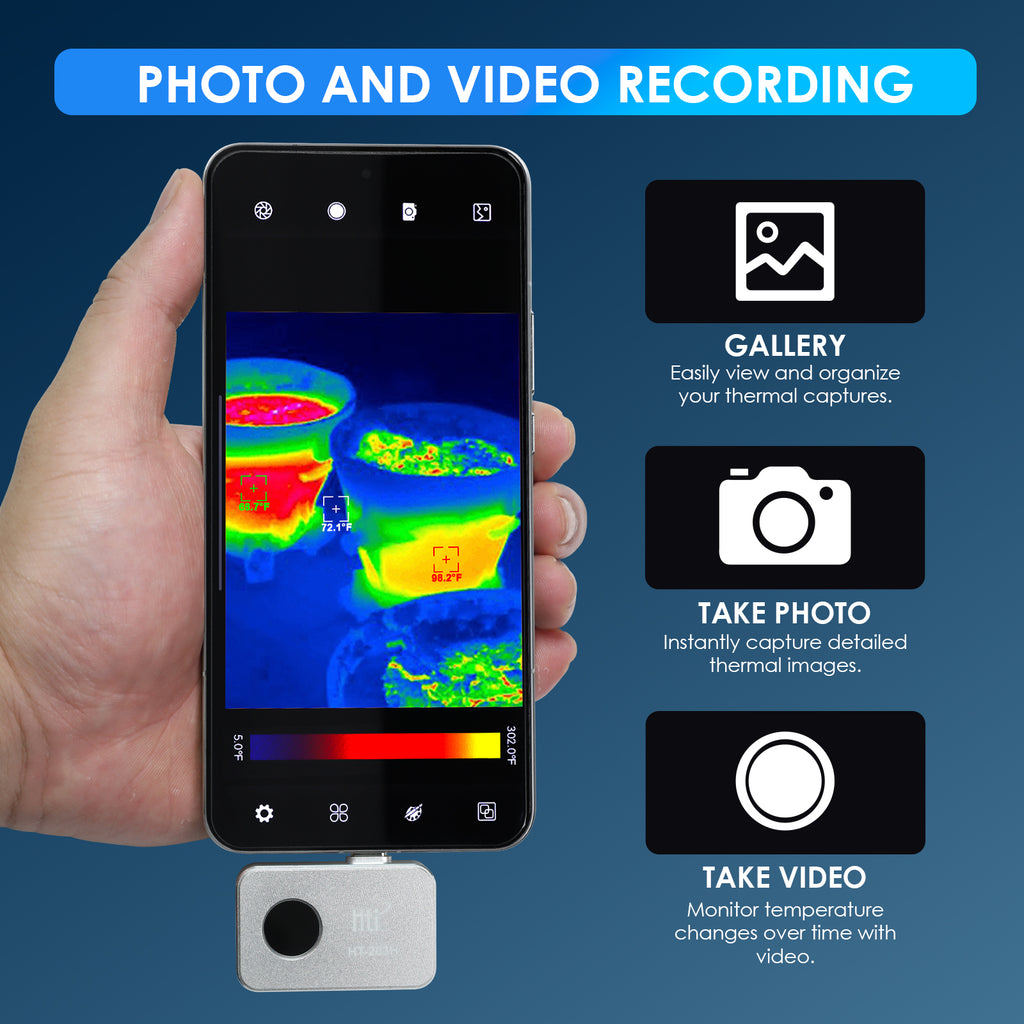

✔ Photo & Video Recording (Save as JPG/MP4)

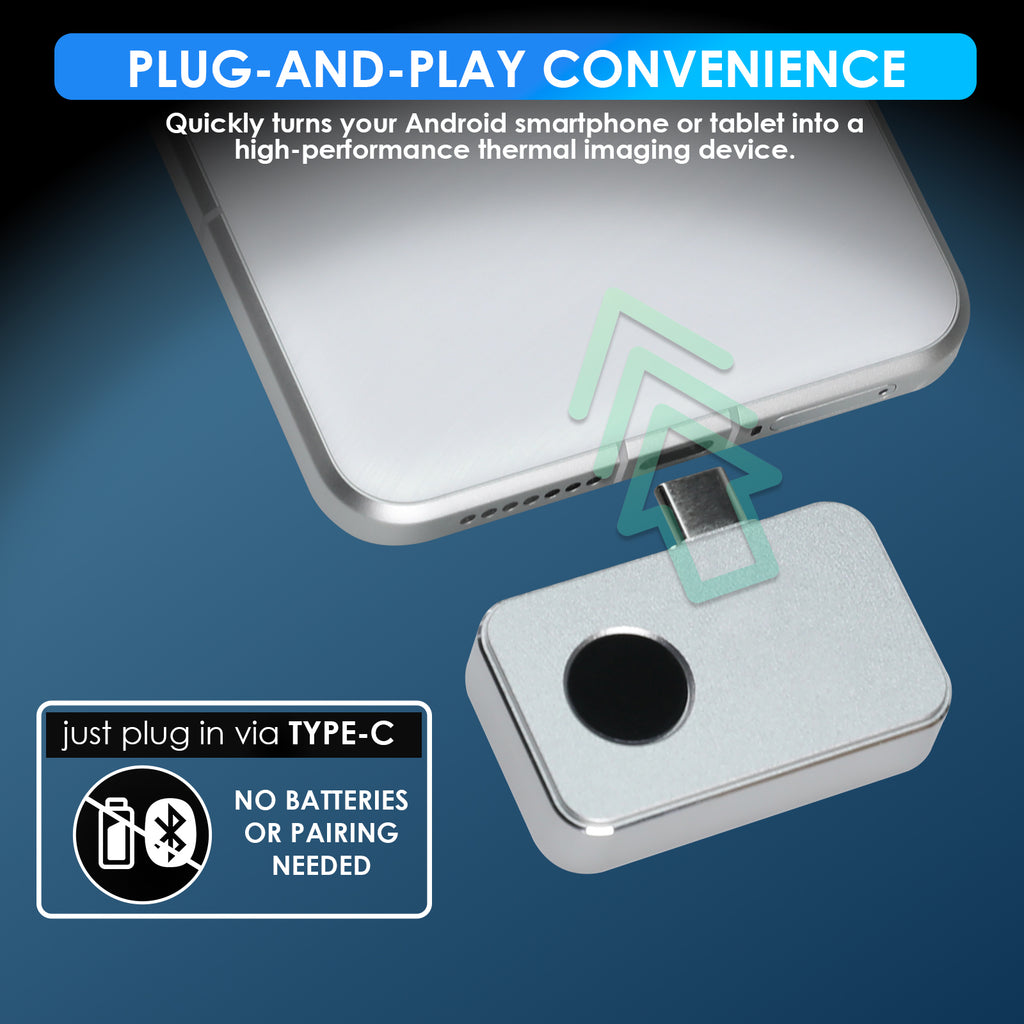

✔ Plug & Play via OTG (No Battery Needed!)

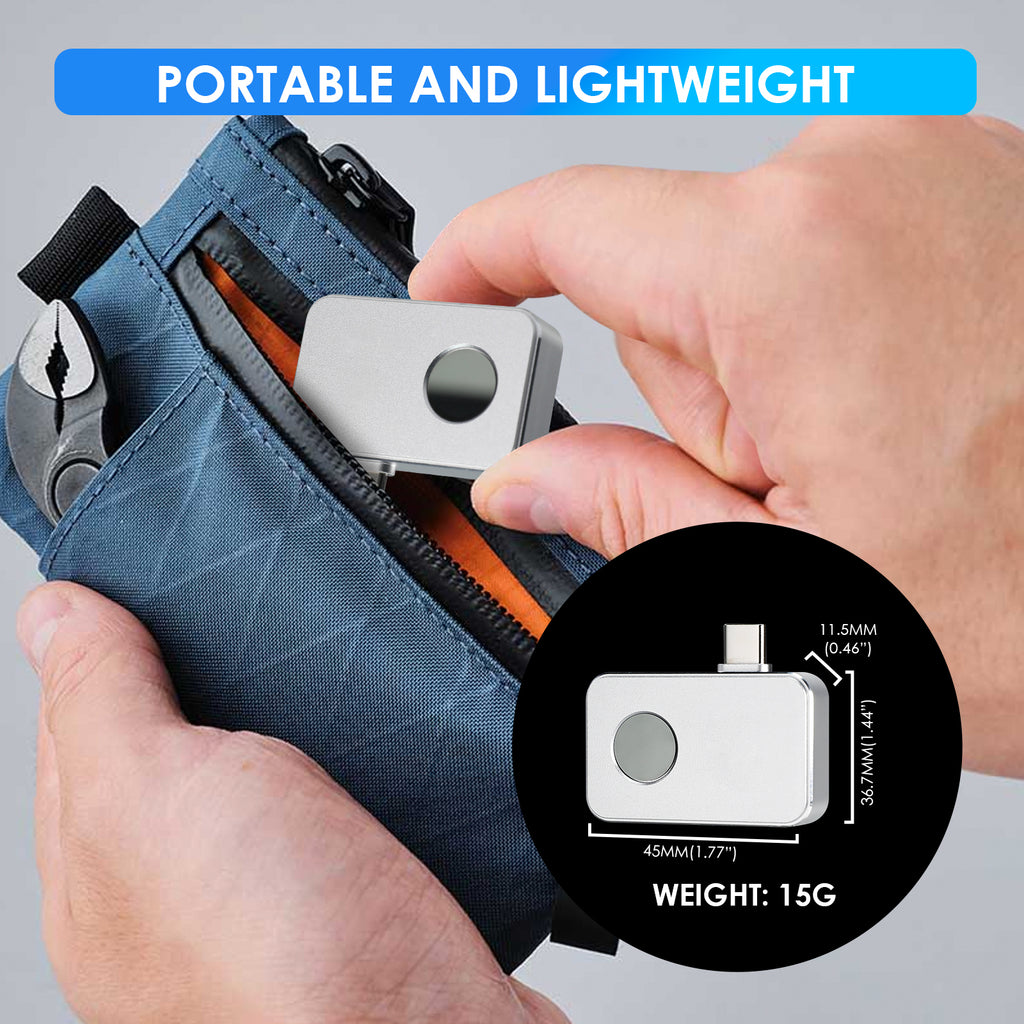

✔ Compact & Lightweight (Only 15g – Take It Anywhere!)

📱 Compatibility:
Android Only (Requires OTG Support – Must Be Enabled)

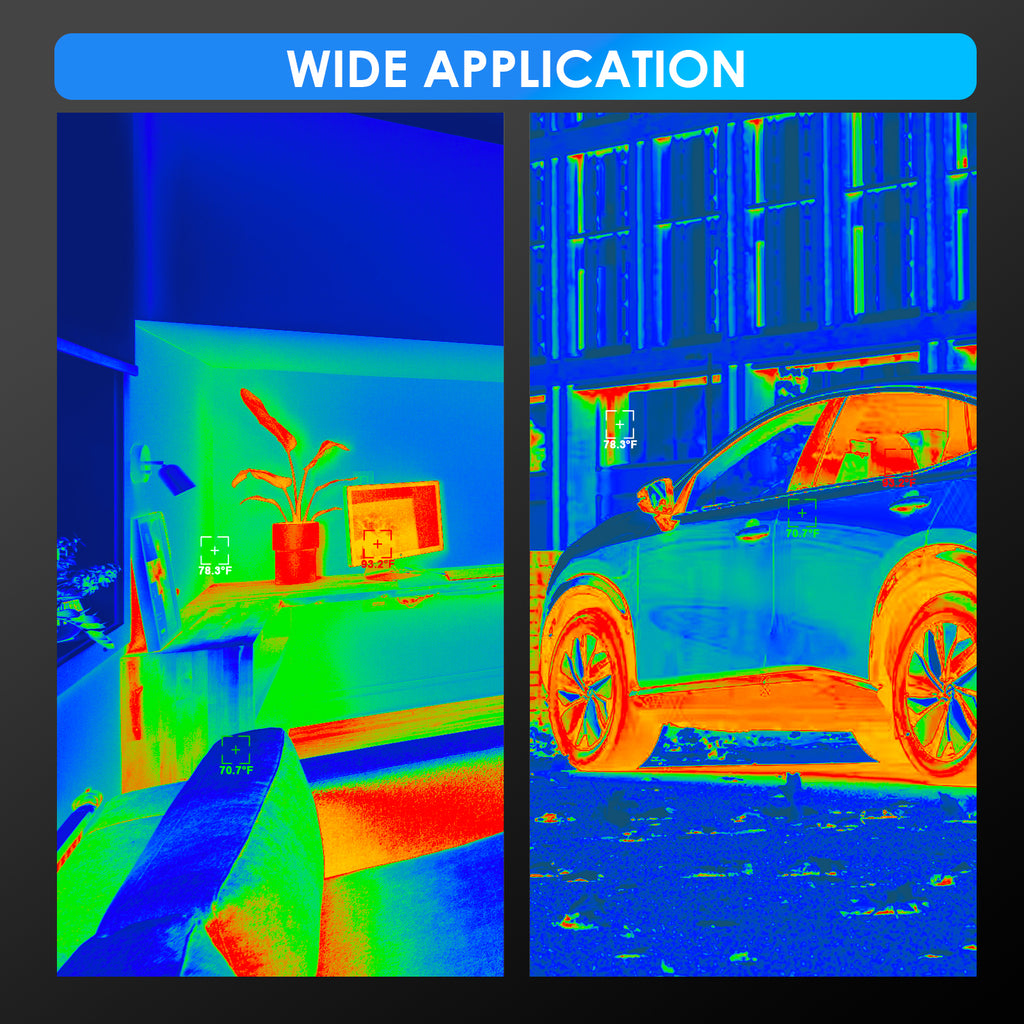

Perfect for:

  • DIY home inspections (detect heat leaks, moisture, and insulation issues)
  • Electrical & HVAC maintenance (find faulty wiring, overheating circuits)
  • Automotive diagnostics (locate engine heat issues)
  • Outdoor adventures (night vision, wildlife tracking)
  • Plumbing & energy audits (identify hidden pipe leaks)

Specifications

  • Infrared
    • Detector type: Vanadium Oxide Uncooled Infrared Focal Plane
    • Infrared image resolution: 256 x 192
    • Pixel spacing: 12μm
    • Focal length: 3.2mm
    • Angle of view: 56°(H)×42°(V)
    • IFOV: 3.75mrad
    • Working band: 8~14μm
    • NETD: <50mk@25℃,F#1.0
    • Image frame rate: ≤25Hz
    • Focusing mode: Free Focus
  • Display

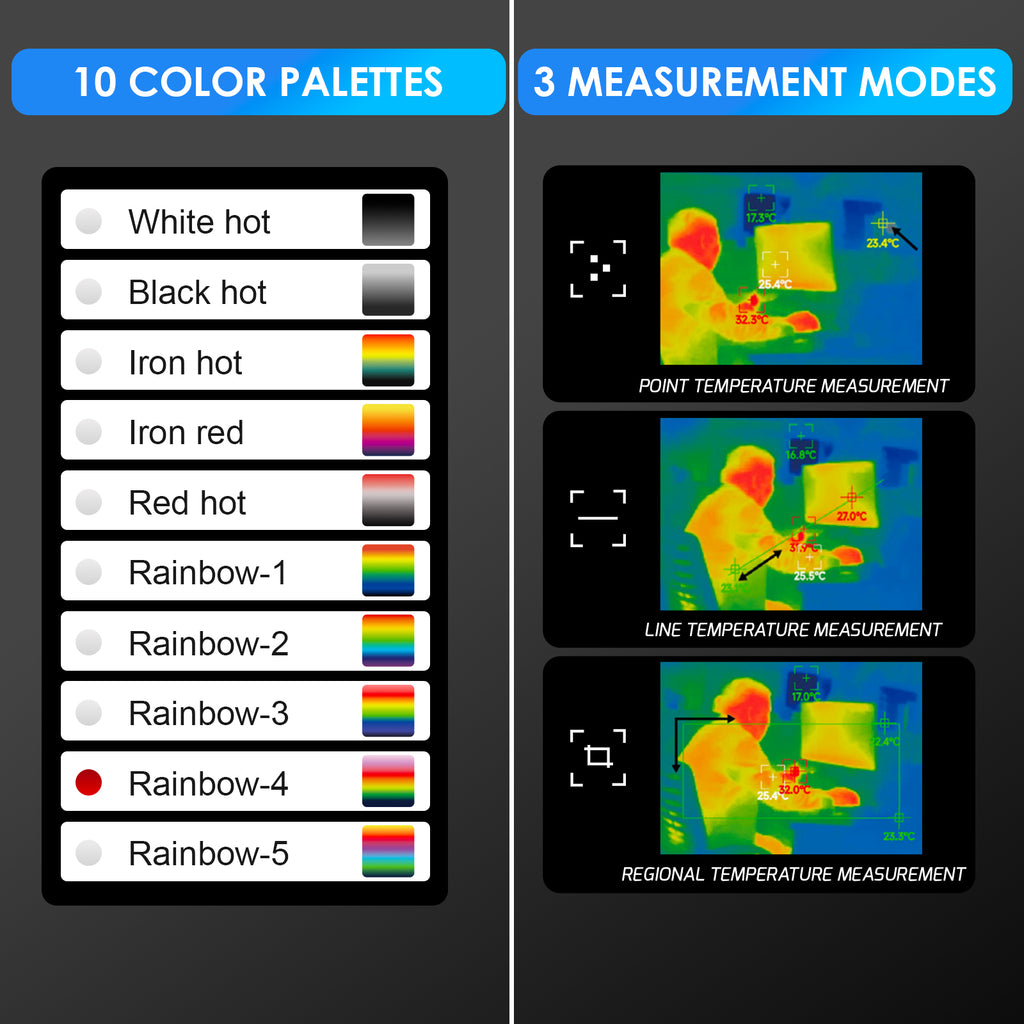

    • 10 Palettes: white hot, black hot, iron hot, iron red,red hot, rainbow - 1,rainbow - 2,rainbow - 3, rainbow - 4, rainbow - 5
  • Temperature measurement function
    • Measurement Method: point, line, and regional temperature measurement
    • Range: -15~150℃ (5~302℉)and 150~550℃(302~1022℉)Automatic gear shifting not supported
    • Measuring Distance: 0.25m~5m
    • Accuracy: -15~-10℃ ±3℃; -10~550℃ ±2℃ or ±2%
  • System function
    • Camera/Video: Supported
    • Picture /Video Format: JPG / MP4
    • Language: Chinese, English, Russian
    • Power Consumption: ≤0.35W
    • External Interface: USB Type-C, DC5V power supply
  • Working Temperature: -10~75℃
  • Storage Temperature: -45~85℃
  • Dimension: 45 x 36.7 x 11.5mm
  • Weight: approx. 15gms

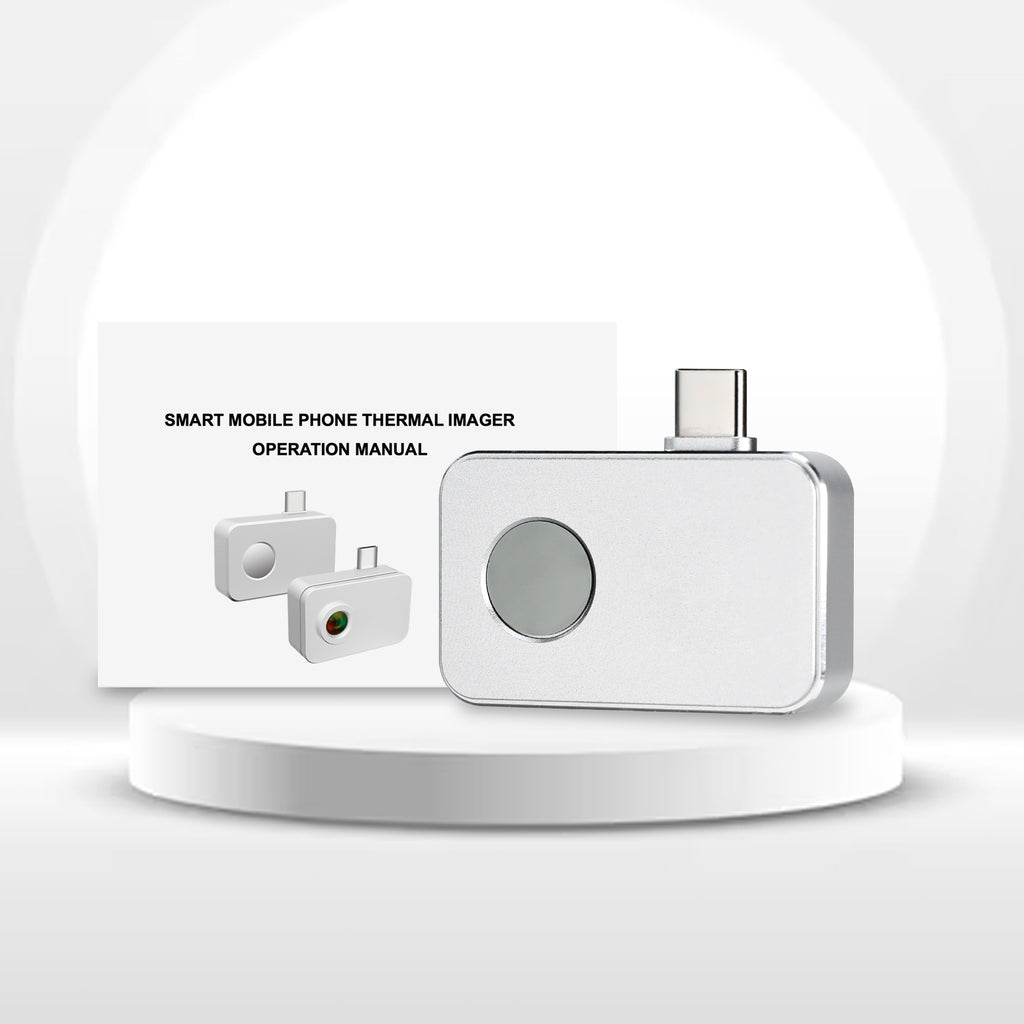

📦 What’s Included:

  • 1x Mobile Phone Thermal Imager
  • 1x Type-C Cable
  • English User Guide
