TK523PLUS Digital Clamp Meter – AC/DC Multimeter with Non-Contact Voltage, Capacitance, Resistance, Frequency, Diode & Temperature Testing for Electricians & HVAC
In stock
TK523PLUS

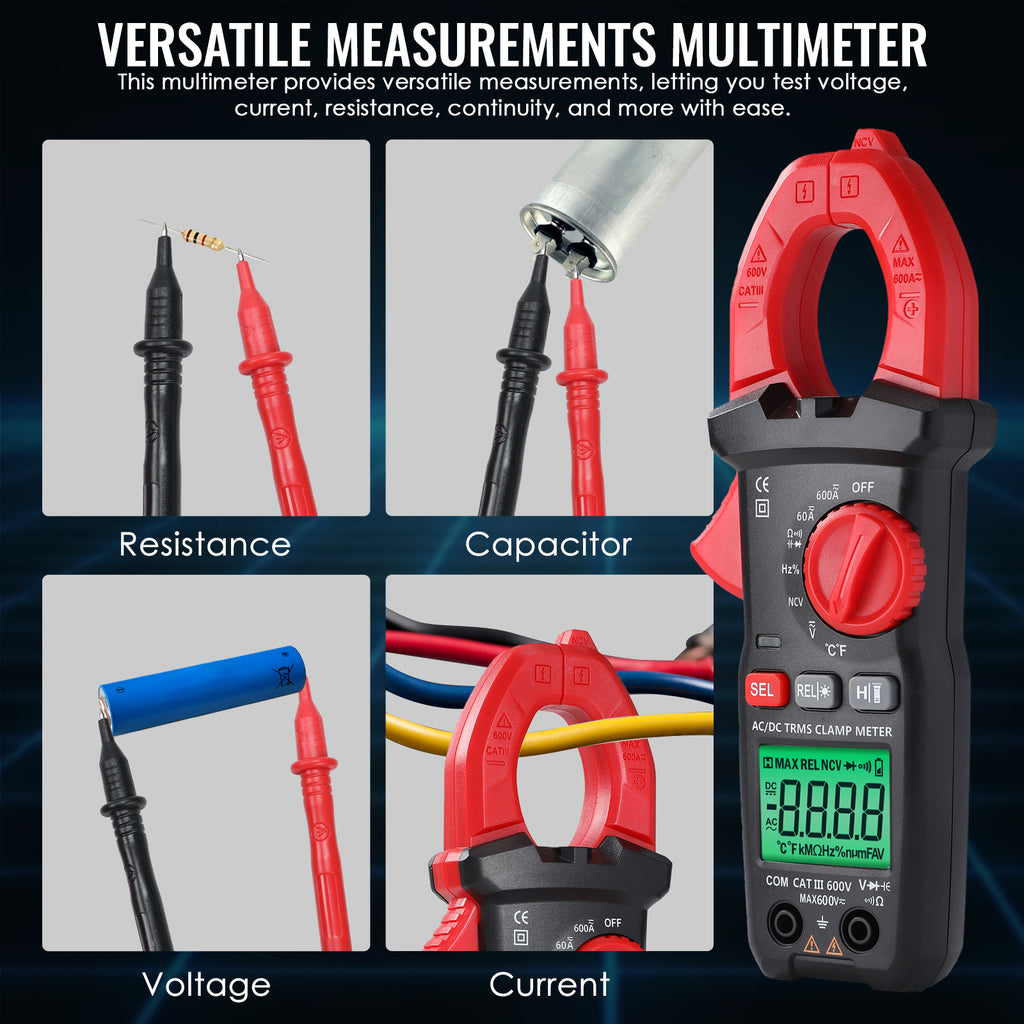

Get accurate, reliable readings from a clamp meter built for one-handed operation. This AC/DC clamp multimeter measures current, voltage, resistance, capacitance, frequency, duty cycle, temperature...
Get accurate, reliable readings from a clamp meter built for one-handed operation. This AC/DC clamp multimeter measures current, voltage, resistance, capacitance, frequency, duty cycle, temperature, and includes diode and line-connection testing — all with full-range overload protection for safe daily use.
The wide jaw opening and non-contact voltage (NCV) detection make it easy to check live circuits without direct contact, while the built-in light helps in dim workspaces. Whether you're doing electrical maintenance, automotive diagnostics, HVAC work, or general home repairs, this clamp meter covers the full range of everyday measurement tasks in one durable tool.

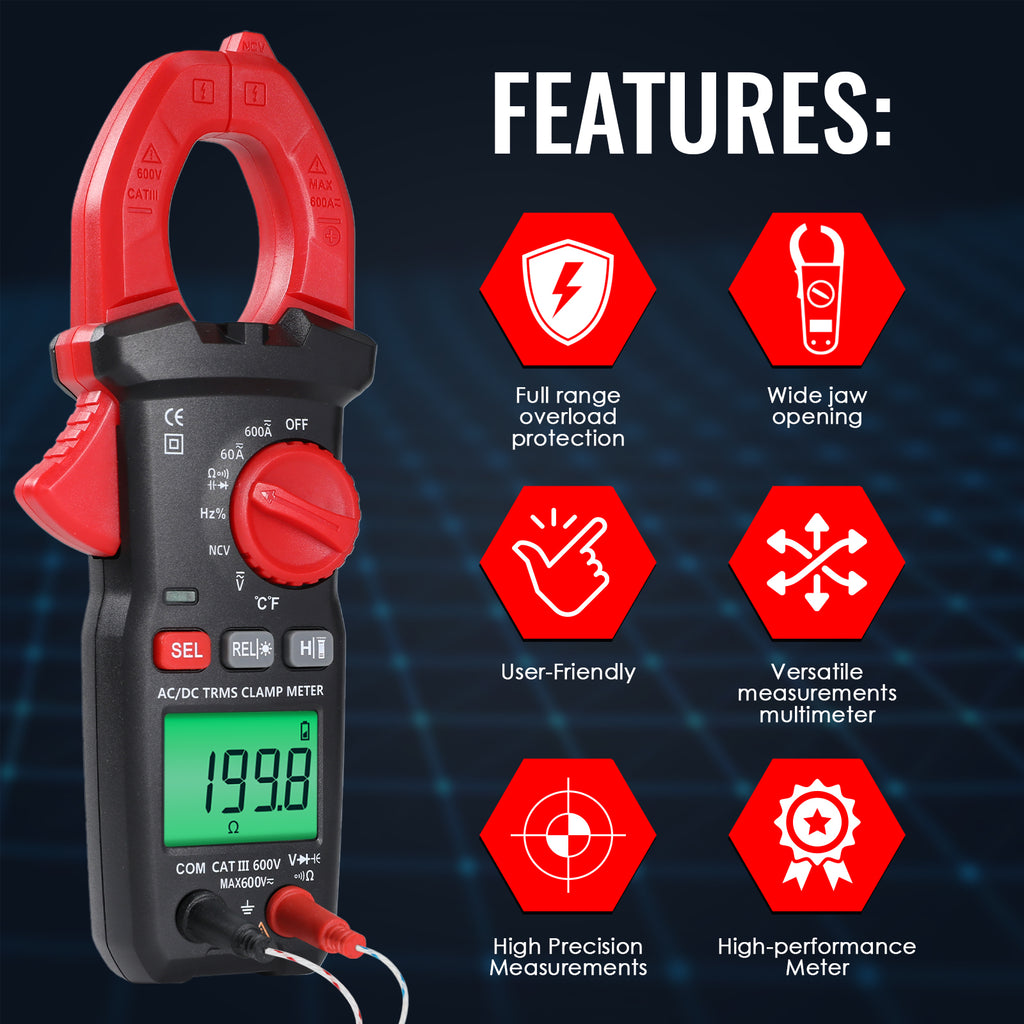

Features:
- Automatic measuring function and range selection
- Full-range overload protection
- Wide jaw opening, one-hand operation

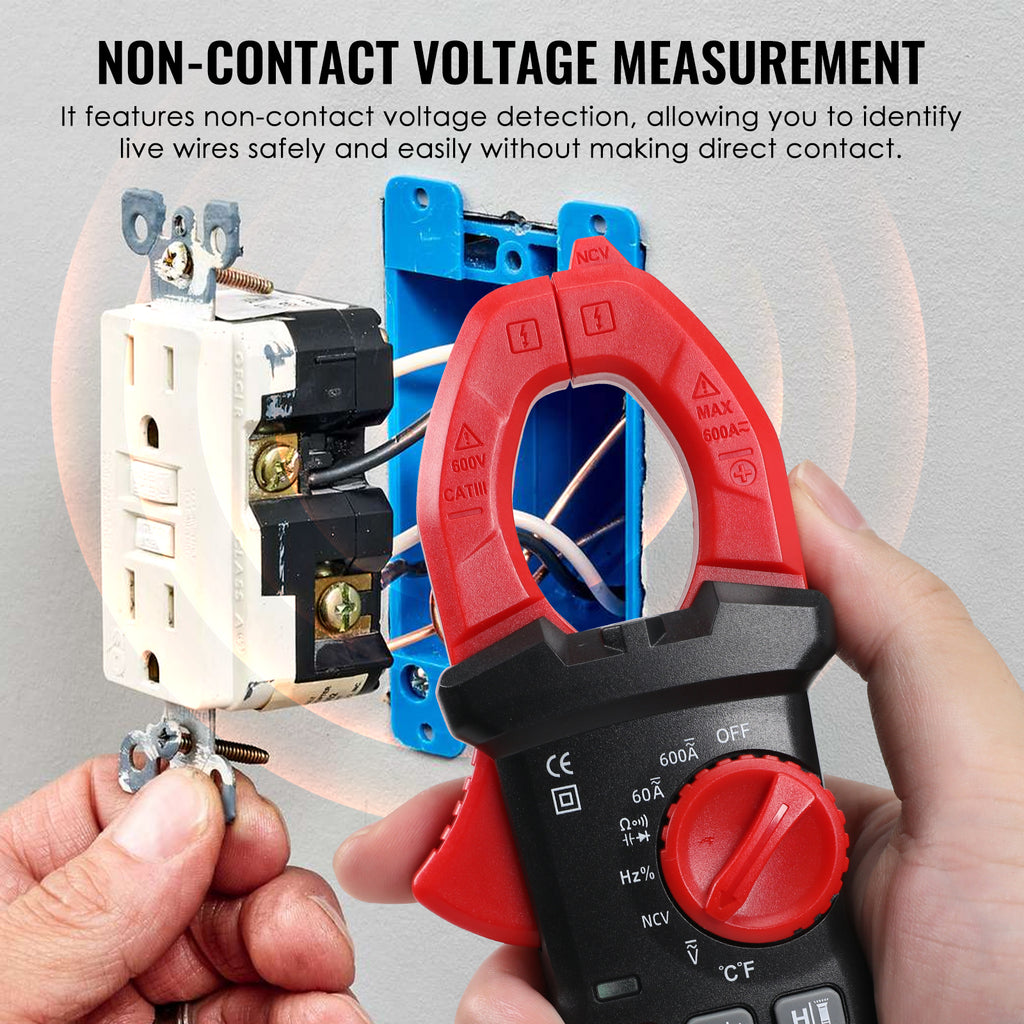

- Non-contact voltage (NCV) detection
- Continuity test with audible beep
- Intelligent IC with double-integral A/D conversion
- HOLD and backlight functions

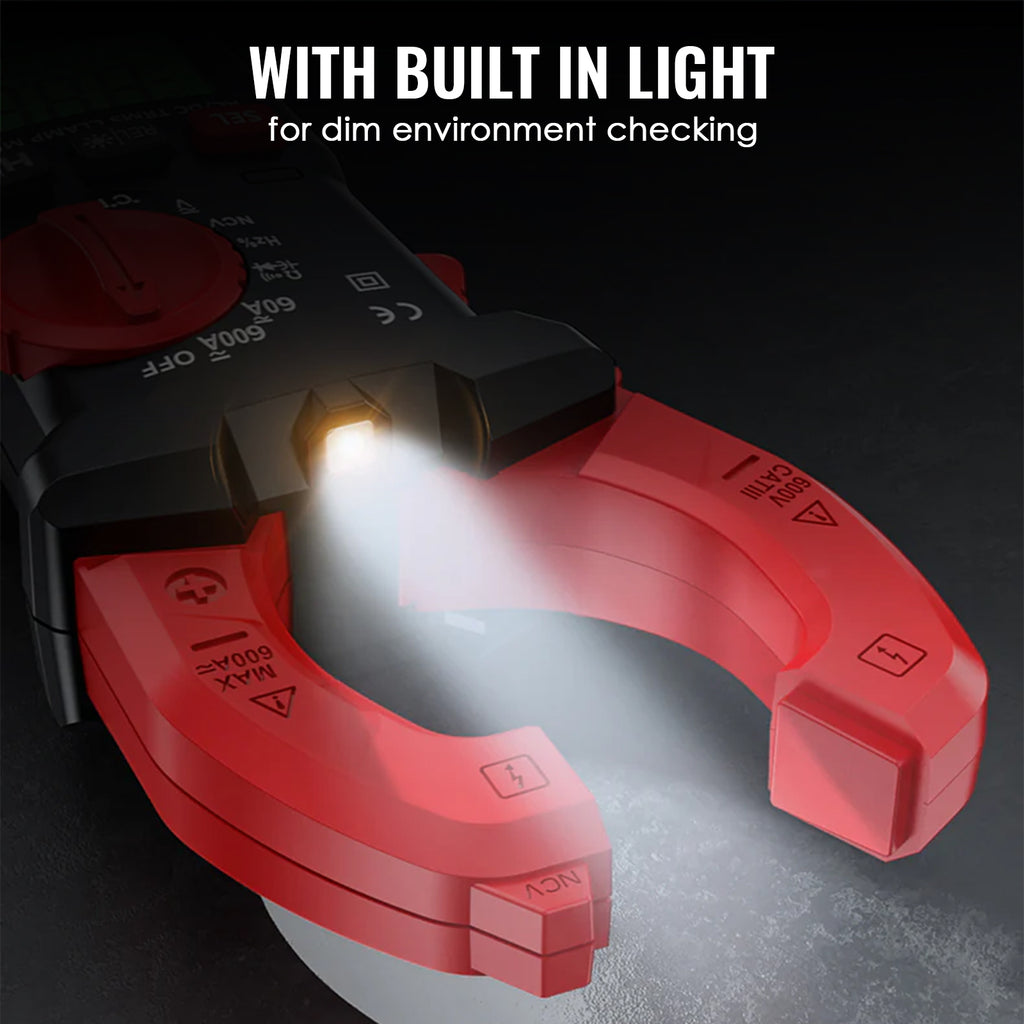

- Built-in light for dim environments
- Durable clamp head, 600V max allowable voltage

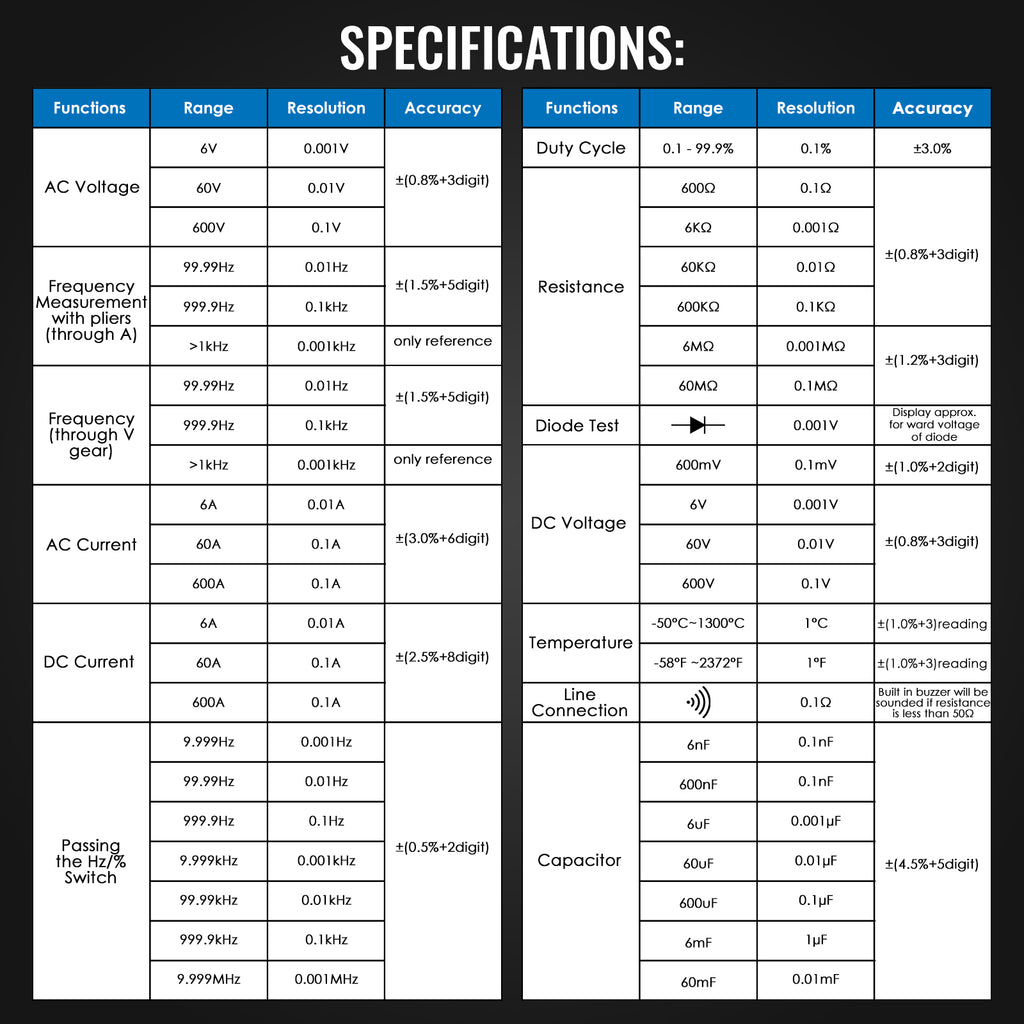

Specifications:
- Display: LCD, 6000 count max value
- Polarity: Automatic indicator ('-' for negative)
- Overload display: "OL" / "-OL"
- Sampling rate: ~3 times/second
- Temperature coefficient: <0.1x accuracy/°C
- Auto shutdown: after 15 minutes
- Power: 1.5V AAA battery

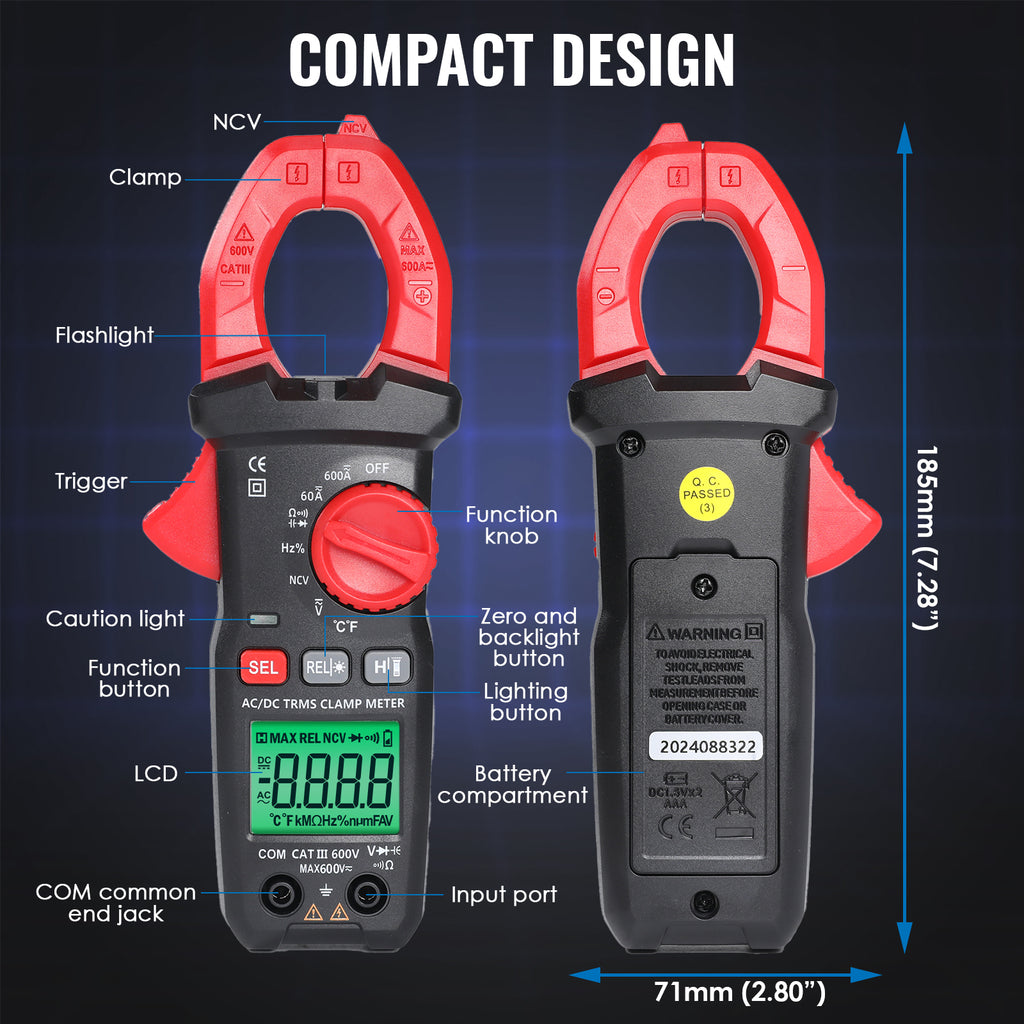

- Meter dimensions: 185 x 71 x 35mm
- Jaw opening: 26mm
- Operating temperature: 0–40°C
- Storage temperature: -10–50°C

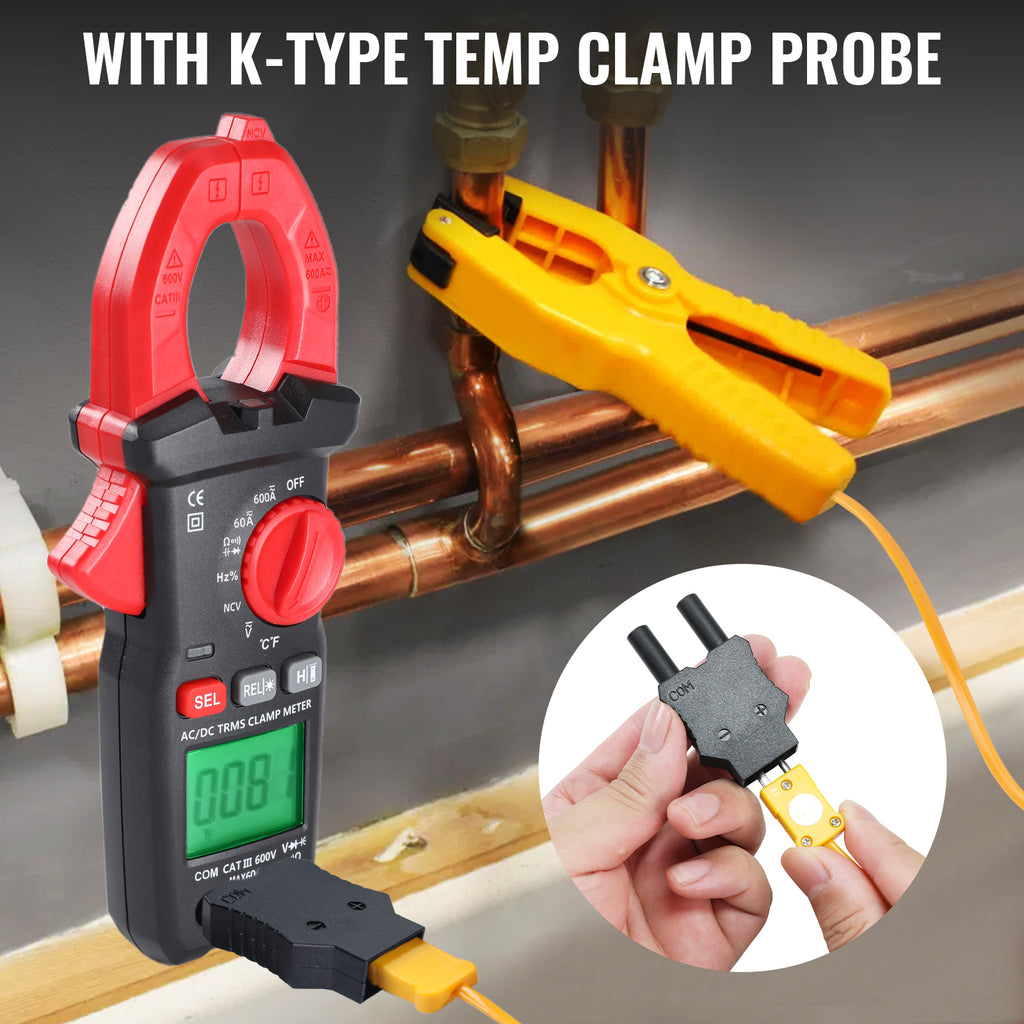

- K-type temp clamp probe range: -40–200°C (-40–392°F)

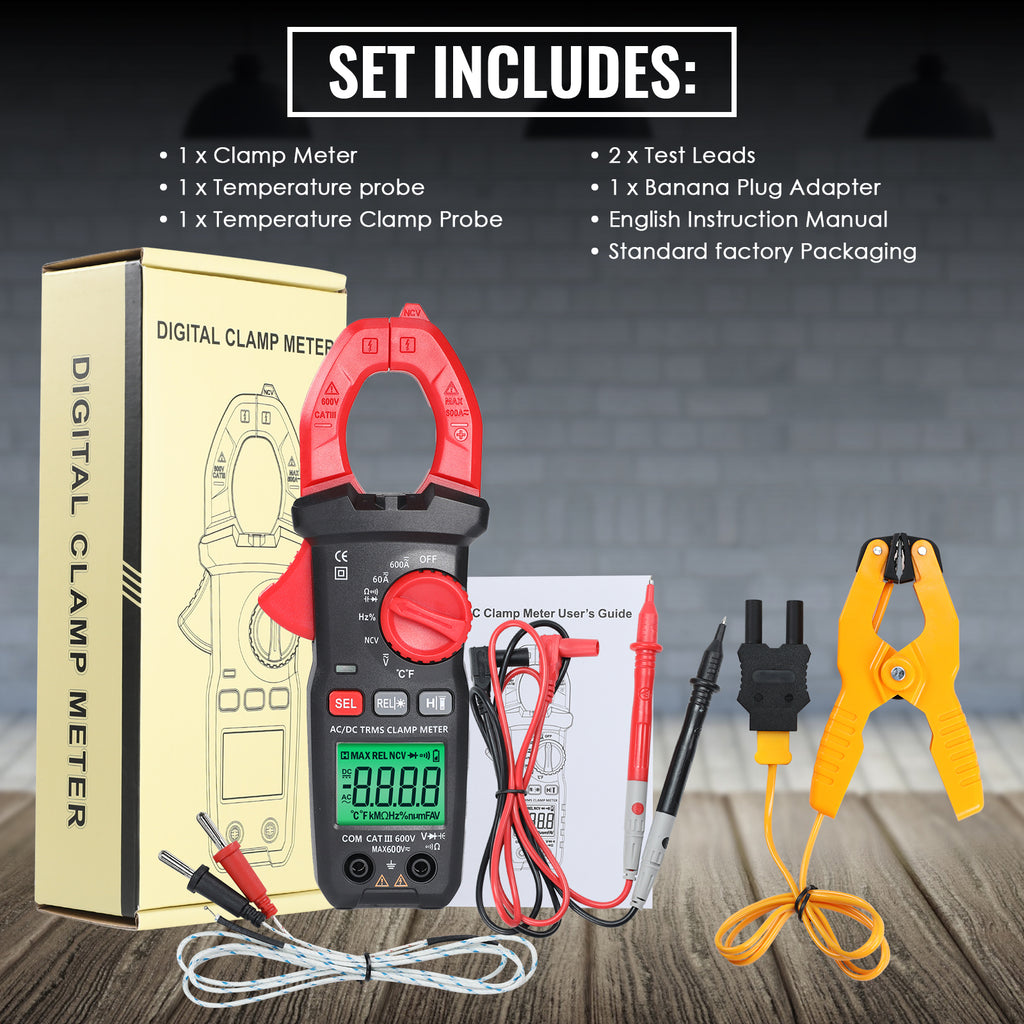

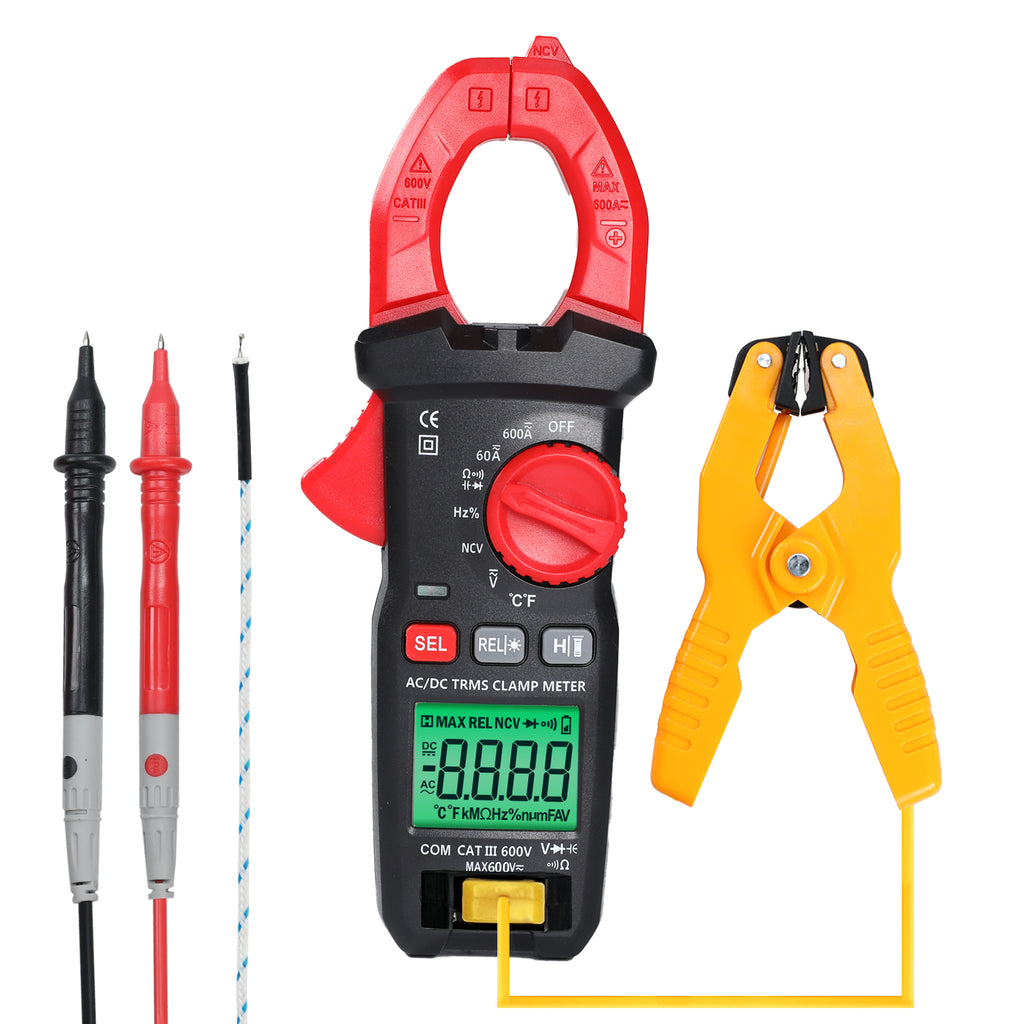

Set Includes:
- 1 x Clamp Meter
- 1 x Temperature probe
- 1 x Temperature Clamp Probe
- 1 x Banana Plug Adapter
- 2 x Test Leads
- Instruction Manual
