TK508PLUS Tweezer-Style LCR Meter – Portable Resistance/Capacitance/Inductance Tester with Diode Test, 100Hz/1kHz/10kHz, Color Display
In stock
TK508PLUS

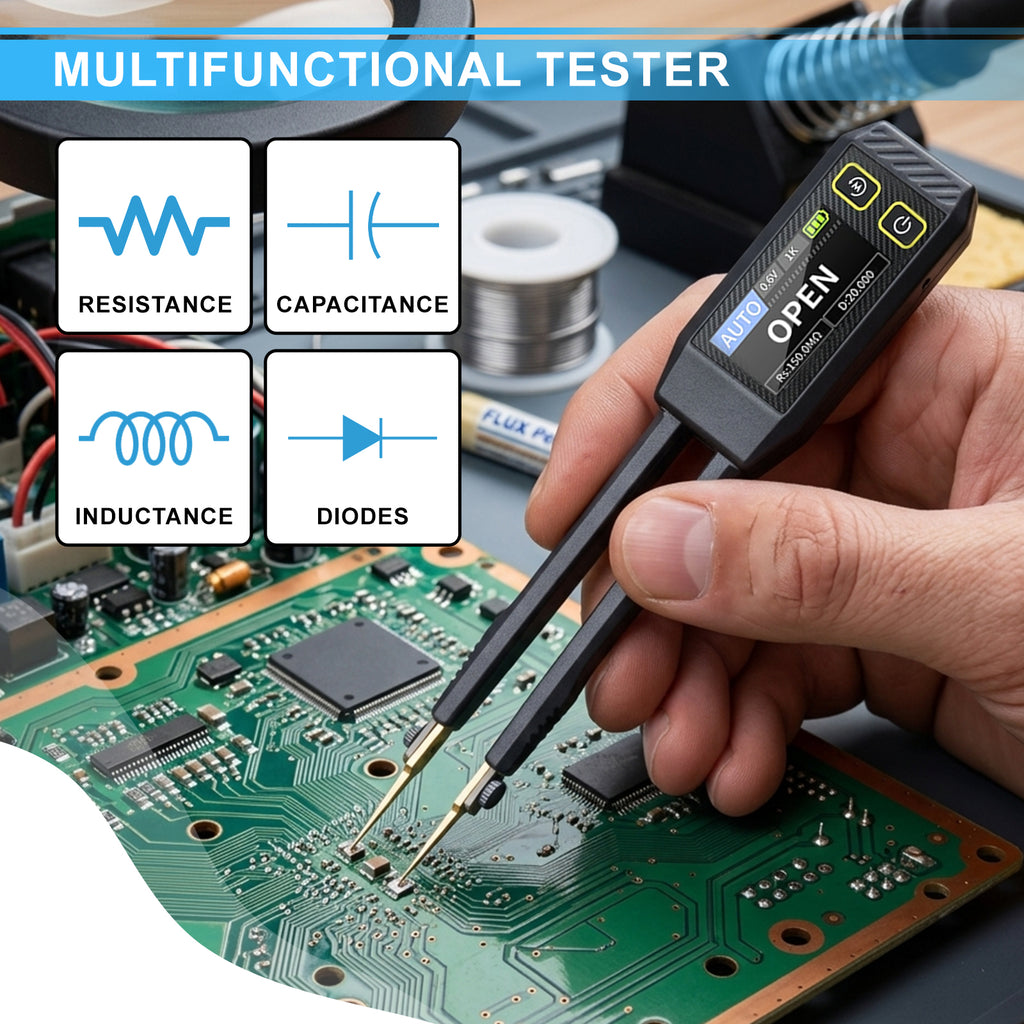

Test small components with precision using this tweezer-style LCR meter, built for resistance, capacitance, inductance, and diode measurements in tight spaces. The ergonomic tweezer design lets you...

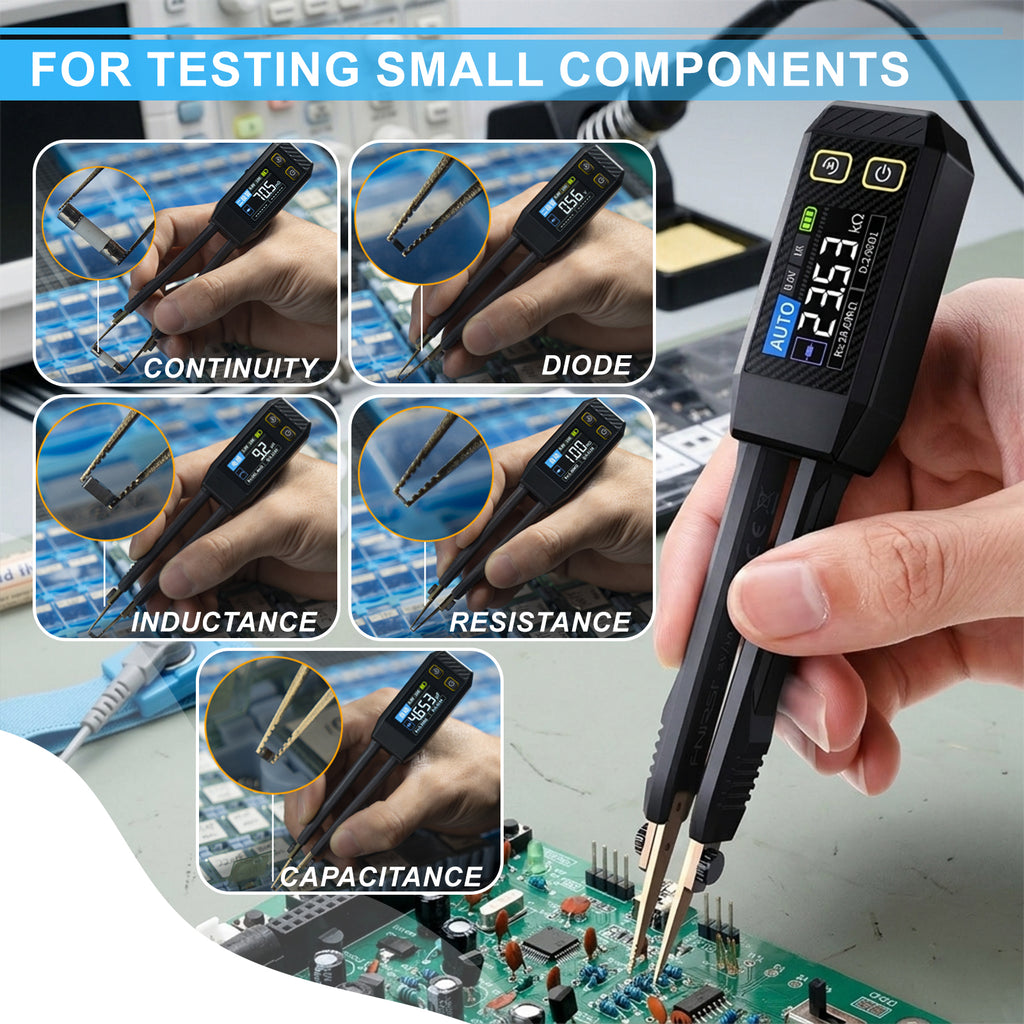

Test small components with precision using this tweezer-style LCR meter, built for resistance, capacitance, inductance, and diode measurements in tight spaces. The ergonomic tweezer design lets you probe SMD components directly, while the 1.14-inch color screen and magnetic back keep it easy to handle on the bench or in the field.

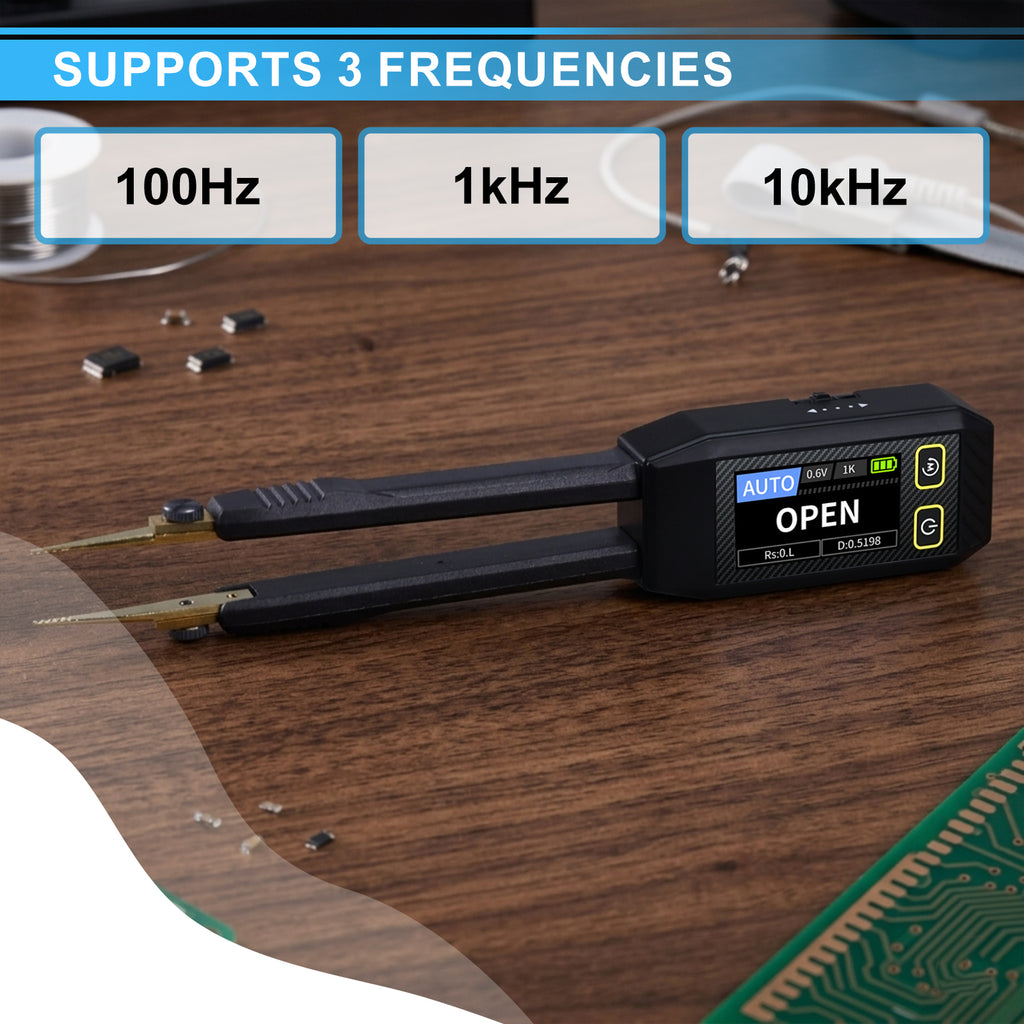

With three selectable test frequencies (100Hz, 1kHz, 10kHz) and a rechargeable battery, it's built for engineers, technicians, and hobbyists who need a reliable, grab-and-go component tester.

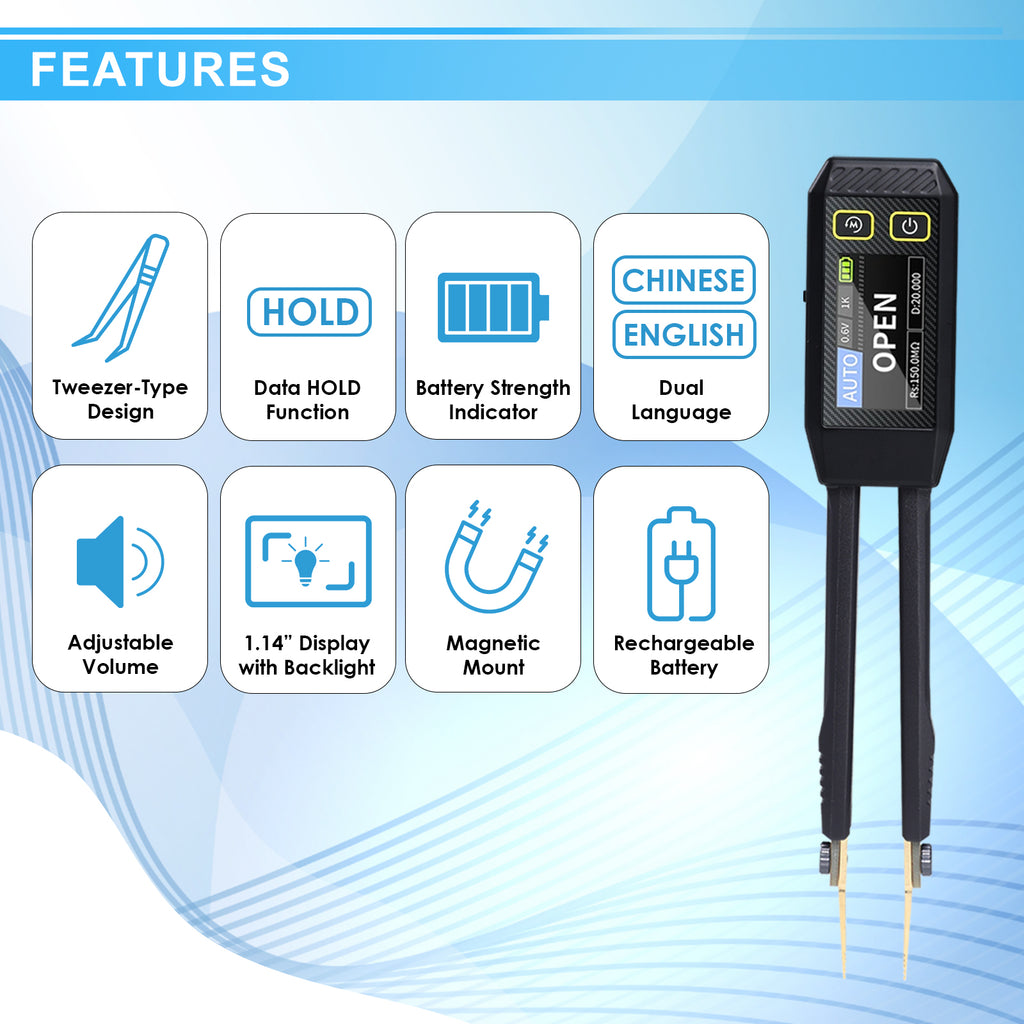

Features:
- Tweezer-type probe design for small/SMD components
- Data HOLD function
- Battery strength indicator
- Dual language display (English/Chinese)
- Adjustable volume and screen brightness
- Factory reset option
- Magnetic back for hands-free use
- Rechargeable battery, USB Type-C charging
Specifications:

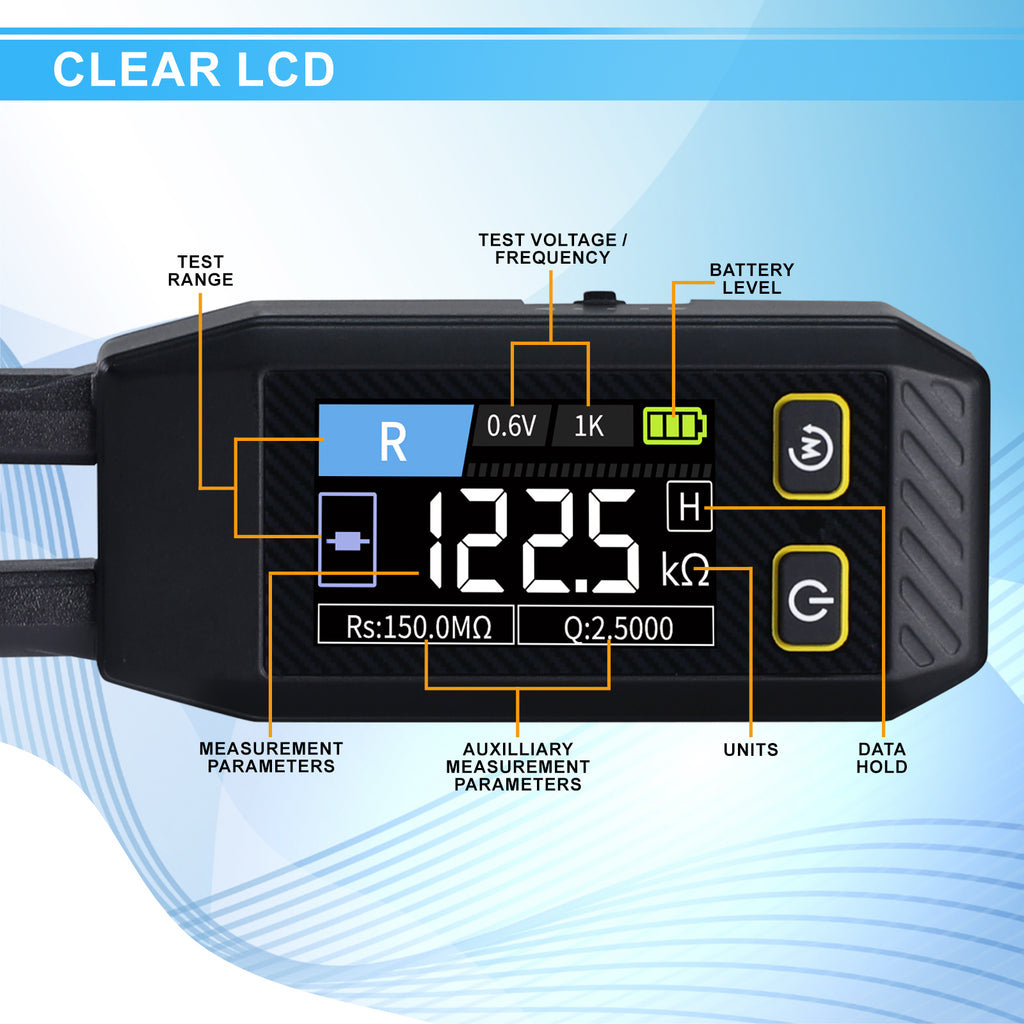

- Screen: 1.14" color display
- Volume adjustment: 0–5 levels
- Brightness adjustment: 0–100 (progress bar)
- Auto power-off: adjustable to 5/15/30 min
- Battery: 250mAh rechargeable lithium
- Charging: USB Type-C, 5V/1A

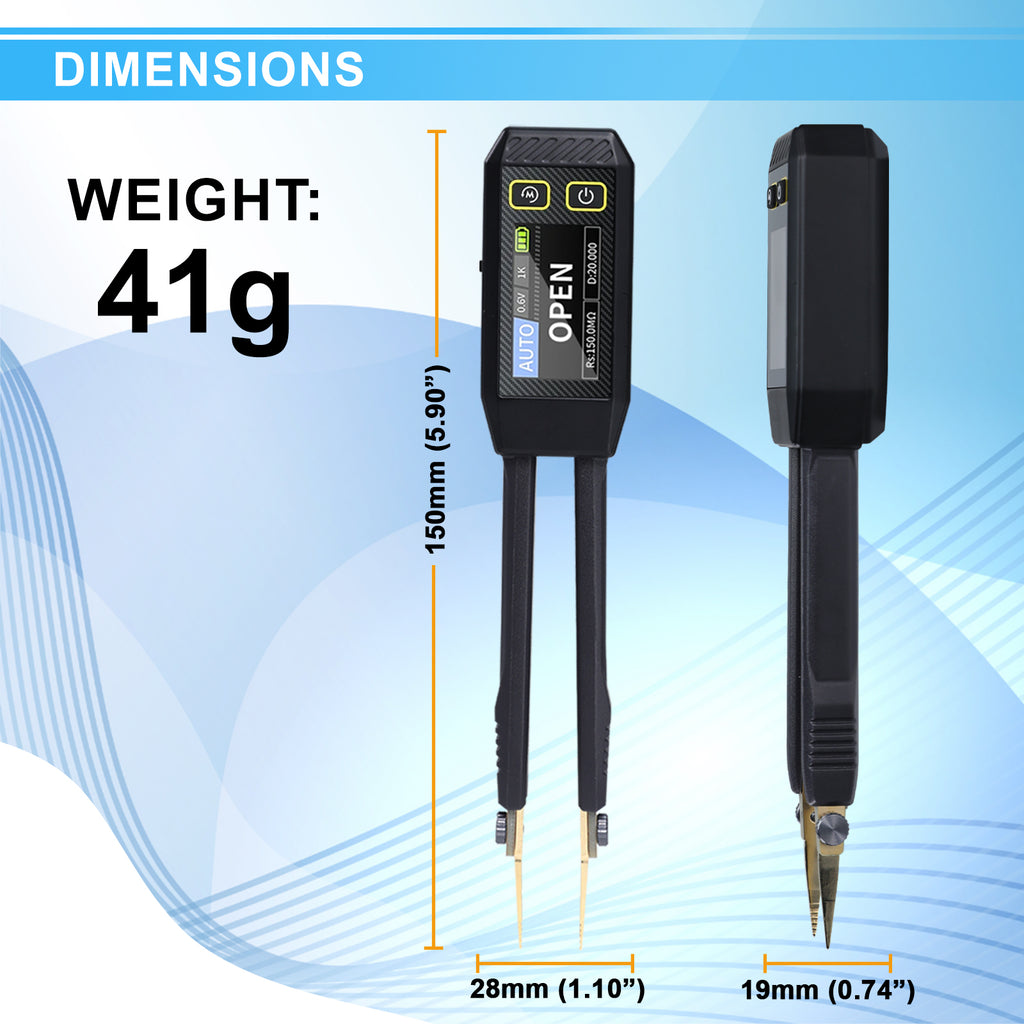

- Dimensions: 28 x 19 x 150mm
- Weight: ~41g
Measurement Accuracy by Frequency:
| Type | Range | 100Hz | 1kHz | 10kHz |
|---|---|---|---|---|
| Capacitance | 1mF–22mF | 5%±3 | 5%±3 | — |
| 1µF–1mF | 2%±3 | 2%±3 | 2%±3 | |
| 1nF–1µF | 2%±3 | 0.5%±3 | 0.5%±3 | |
| 1pF–1nF | — | 2%±3 | 2%±3 | |
| Inductance | 1H–10H | 5%±3 | 5%±3 | — |
| 1mH–1H | 2%±3 | 2%±3 | 2%±3 | |
| 10µH–1mH | 2%±3 | 0.5%±3 | 0.5%±3 | |
| 1µH–10µH | — | — | 2%±3 | |
| Resistance | 1MΩ–10MΩ | 5%±3 | 5%±3 | — |
| 1kΩ–1MΩ | 1%±3 | 0.5%±3 | 1%±3 | |
| 1Ω–1kΩ | 1%±3 | 0.5%±3 | 0.5%±3 | |
| 10mΩ–1Ω | 2%±3 | 2%±3 | 2%±3 |

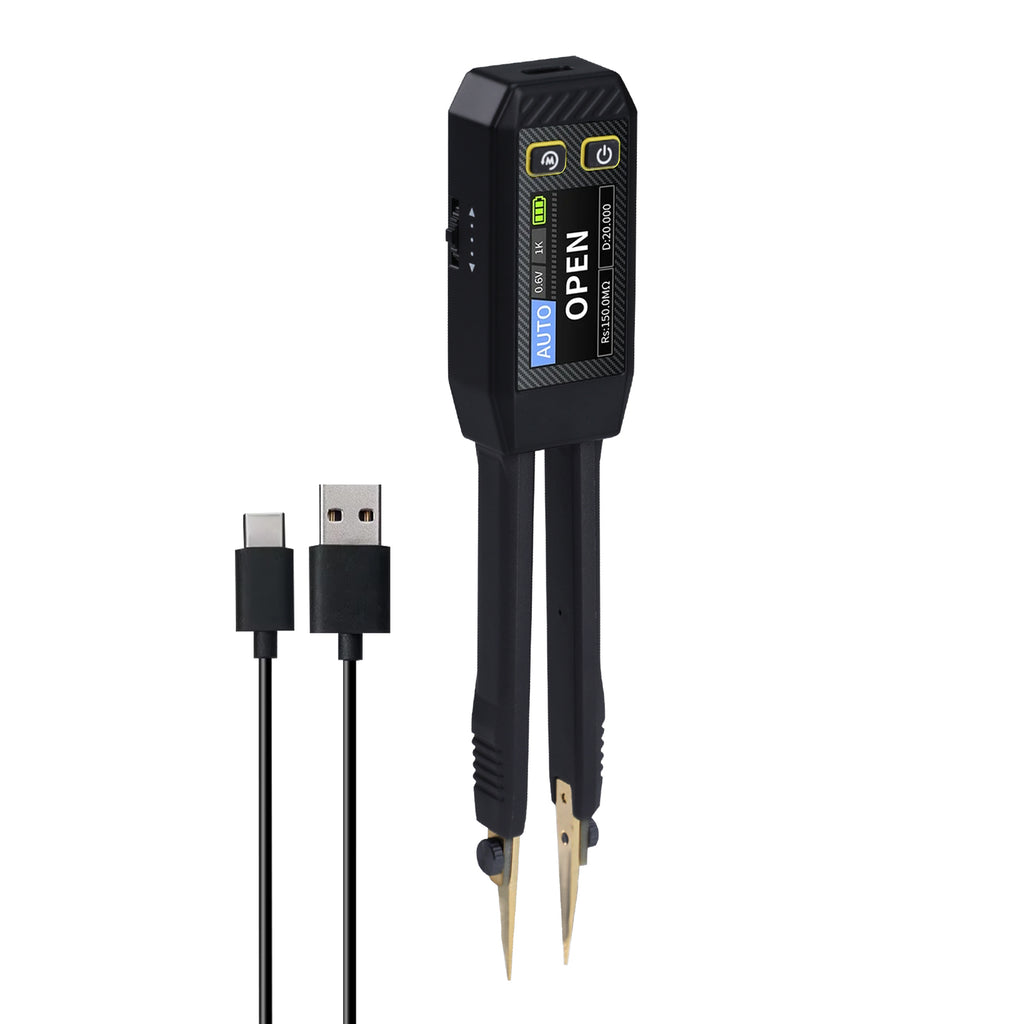

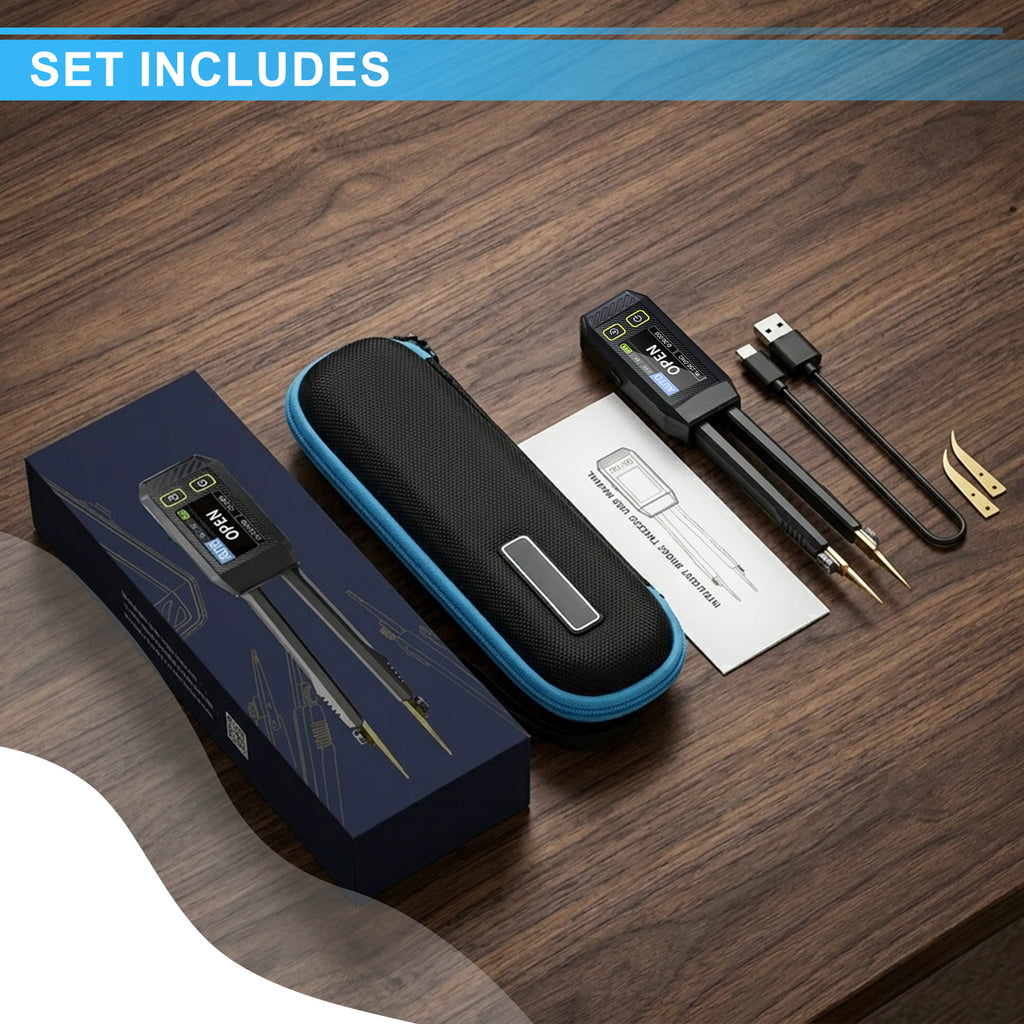

Set Includes:
- 1 x LCR Meter
- 1 x USB Type-C Charging Cable
- Instruction Manual
