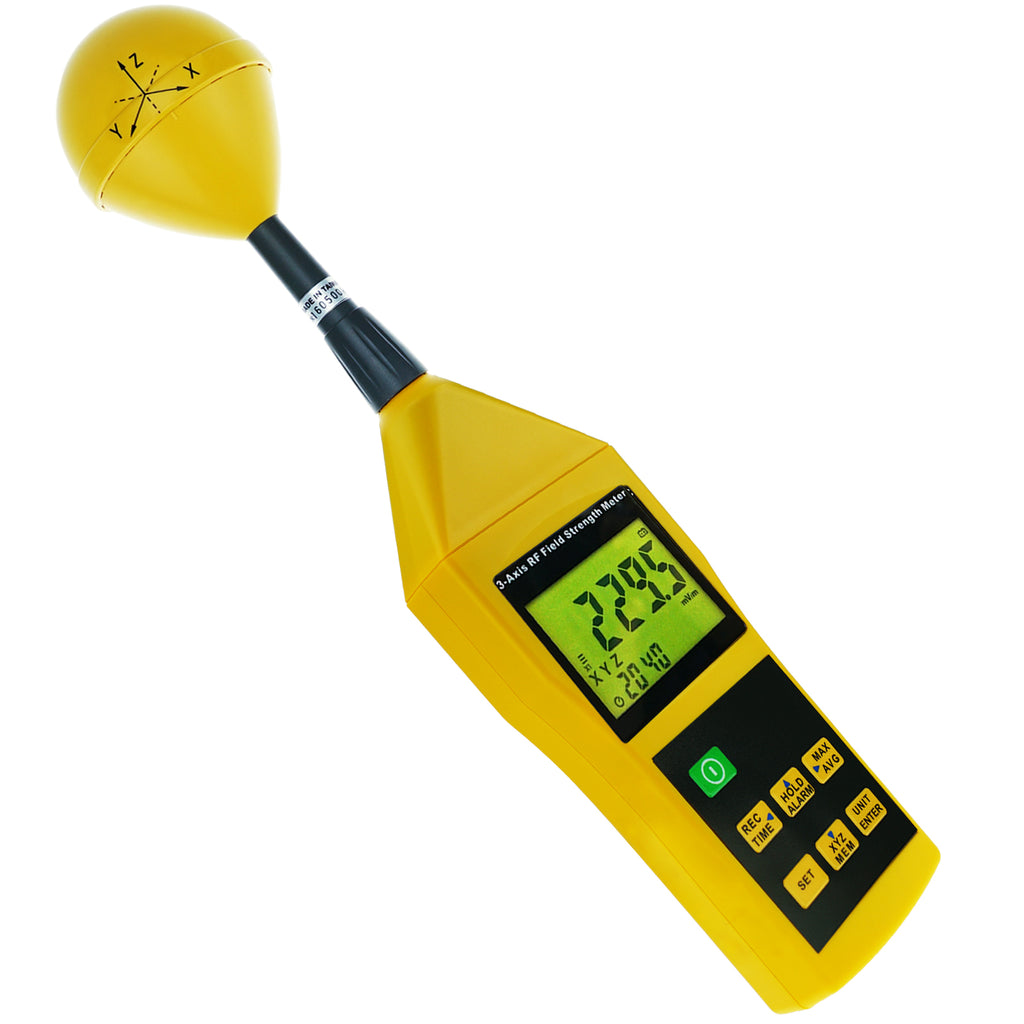

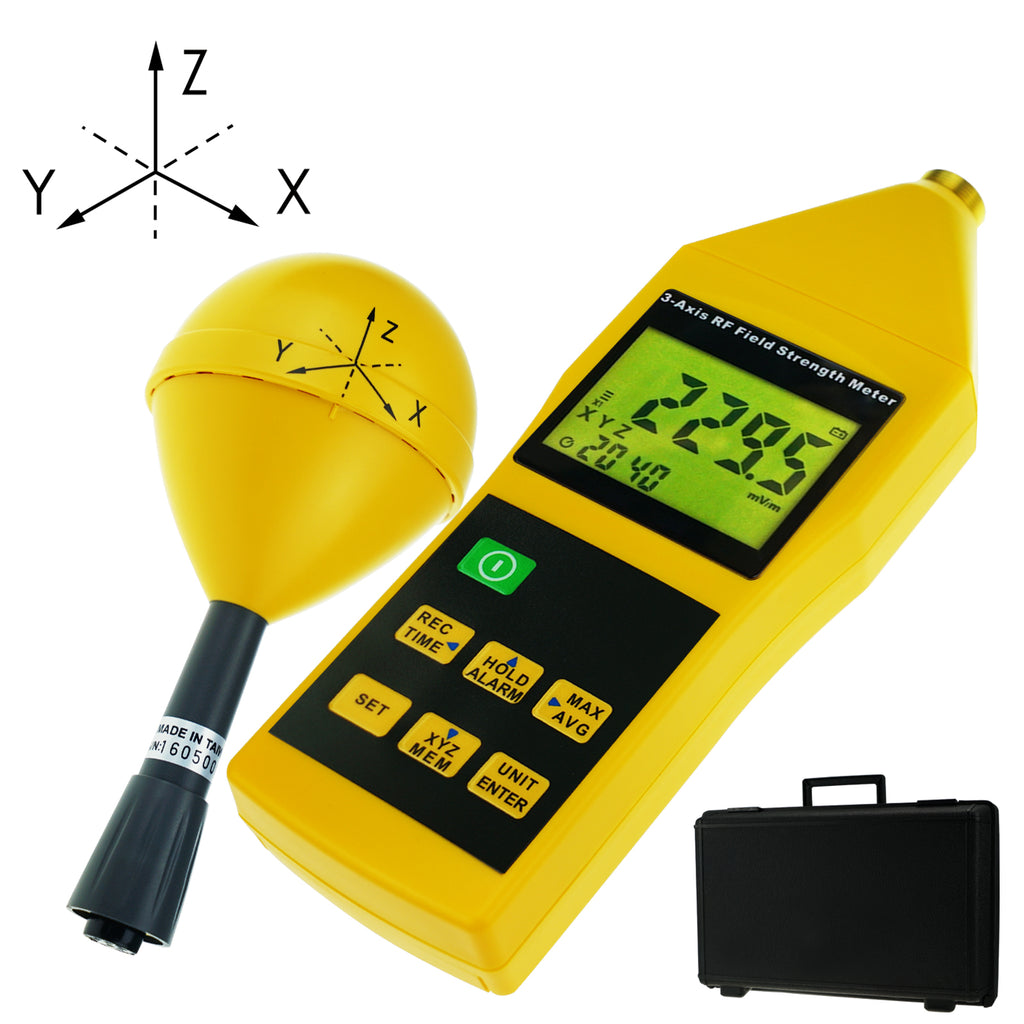

TM-196 Triple Axis RF Field Strength Meter Electromagnetic Radiation Tester Detector 10MHz to 8GHz

In stock
TM-196 is designed for measuring and monitoring Radio Frequency(RF) electromagnetic field strength of 38mV to 11V/m and capable of measuring the frequency range of 10Mz~8GHz. Best for: High freque...
$306.90 USD
Share on:

TM-196 is designed for measuring and monitoring Radio Frequency(RF) electromagnetic field strength of 38mV to 11V/m and capable of measuring the frequency range of 10Mz~8GHz.

Best for:

  1. High frequency(RF) electromagnetic wave field strength measurement
  2. RF power measurement for transmitters
  3. Wireless communication(CW, TDMA, GSM, DECT) application

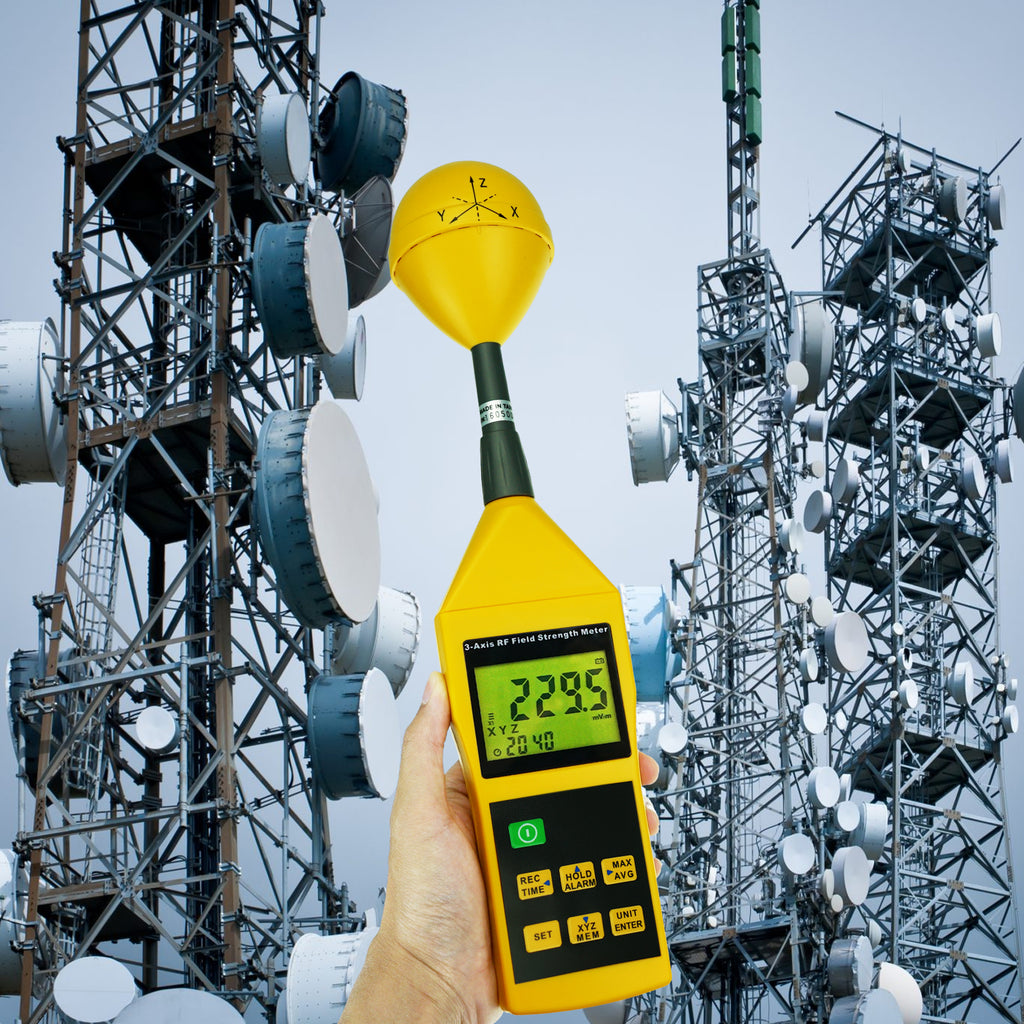

  4. Mobile phone base station antenna radiation power density measurement
  5. Wireless LAN(Wi-Fi) detection, installation
  6. Spy camera, wireless bug finder
  7. Cellular/Cordless phone radiation safety level
  8. Microwave oven leakage detection
  9. Personal living environment EMF safety



  • Measurement range: 50mV/m ~ 11V/m
  • Frequency range: 10MHz ~ 8GHz

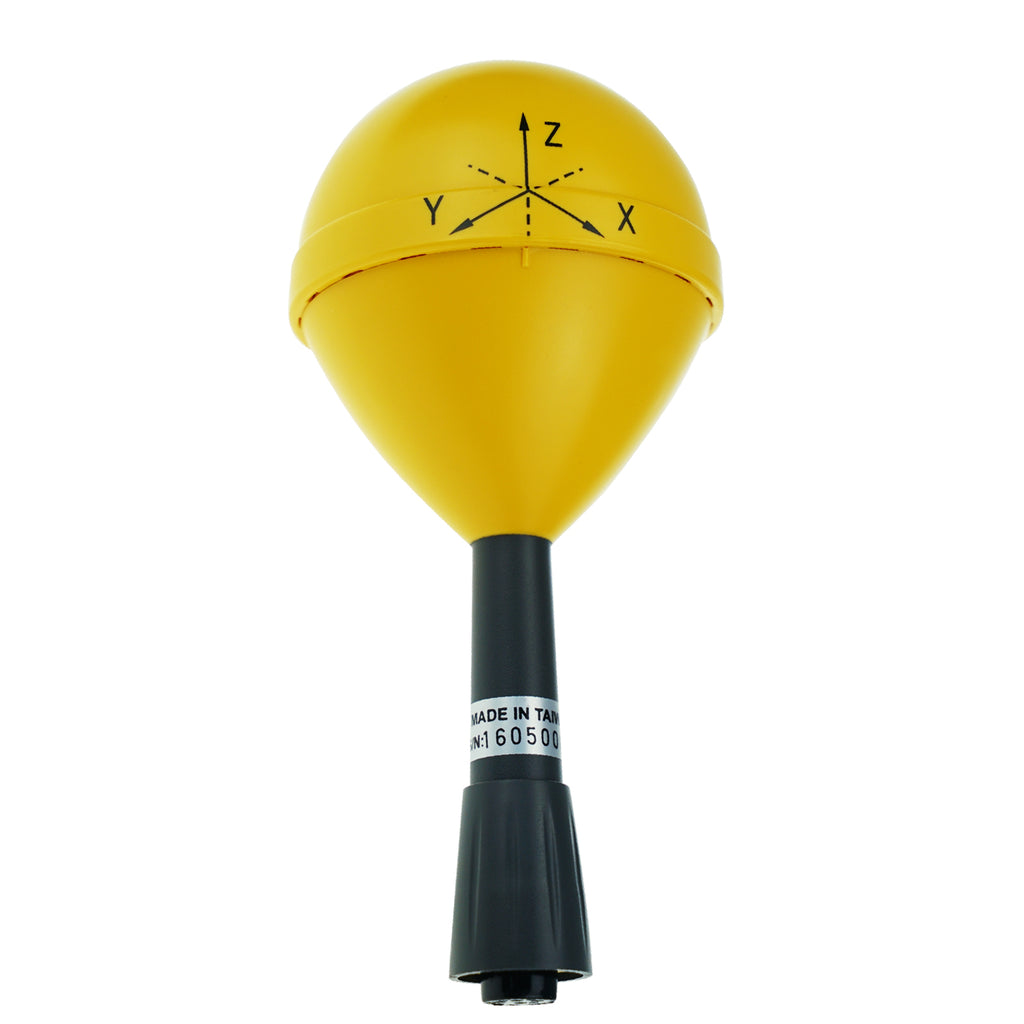

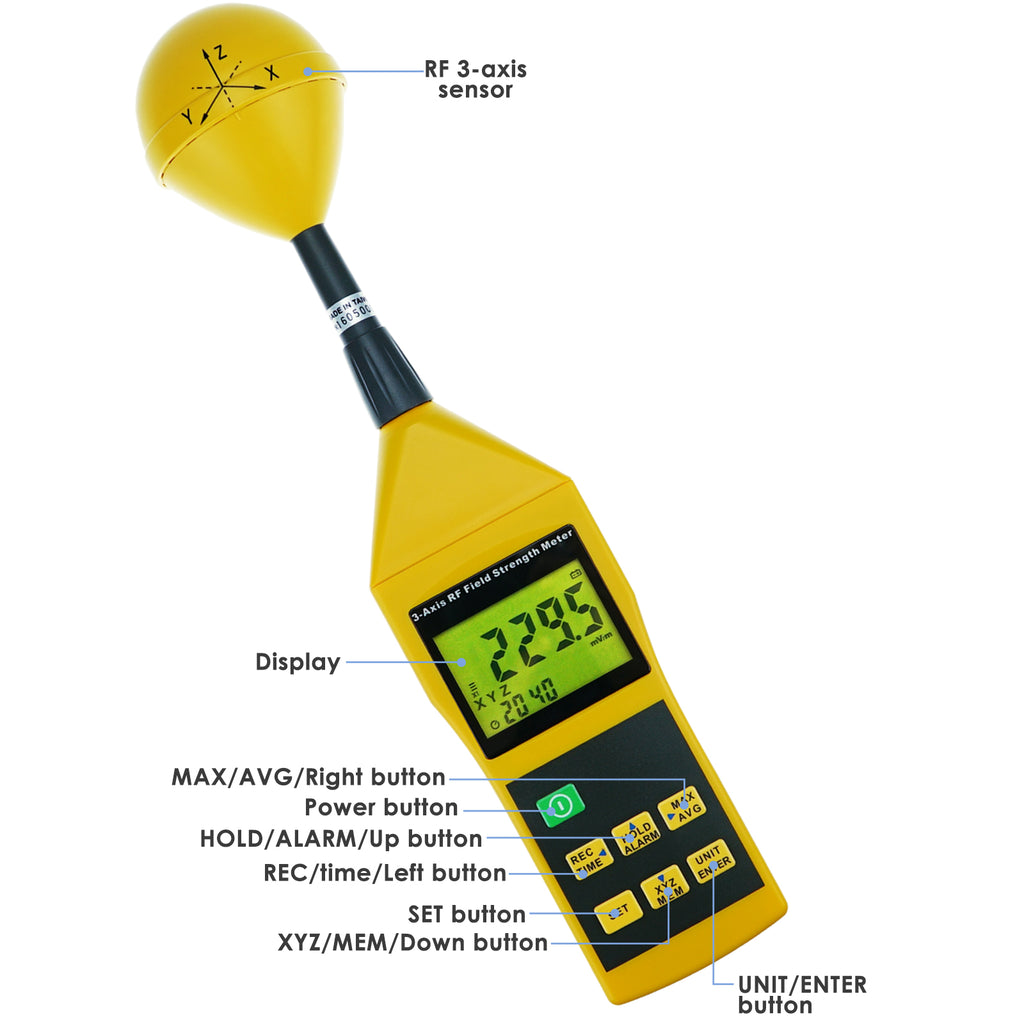

  • Sensor axis display selection: All axis, X axis, Y axis, Z axis
  • Directional characteristic: Isotropic, Tri axis
  • Low battery indication
  • Data Hold function
  • Over Load indication

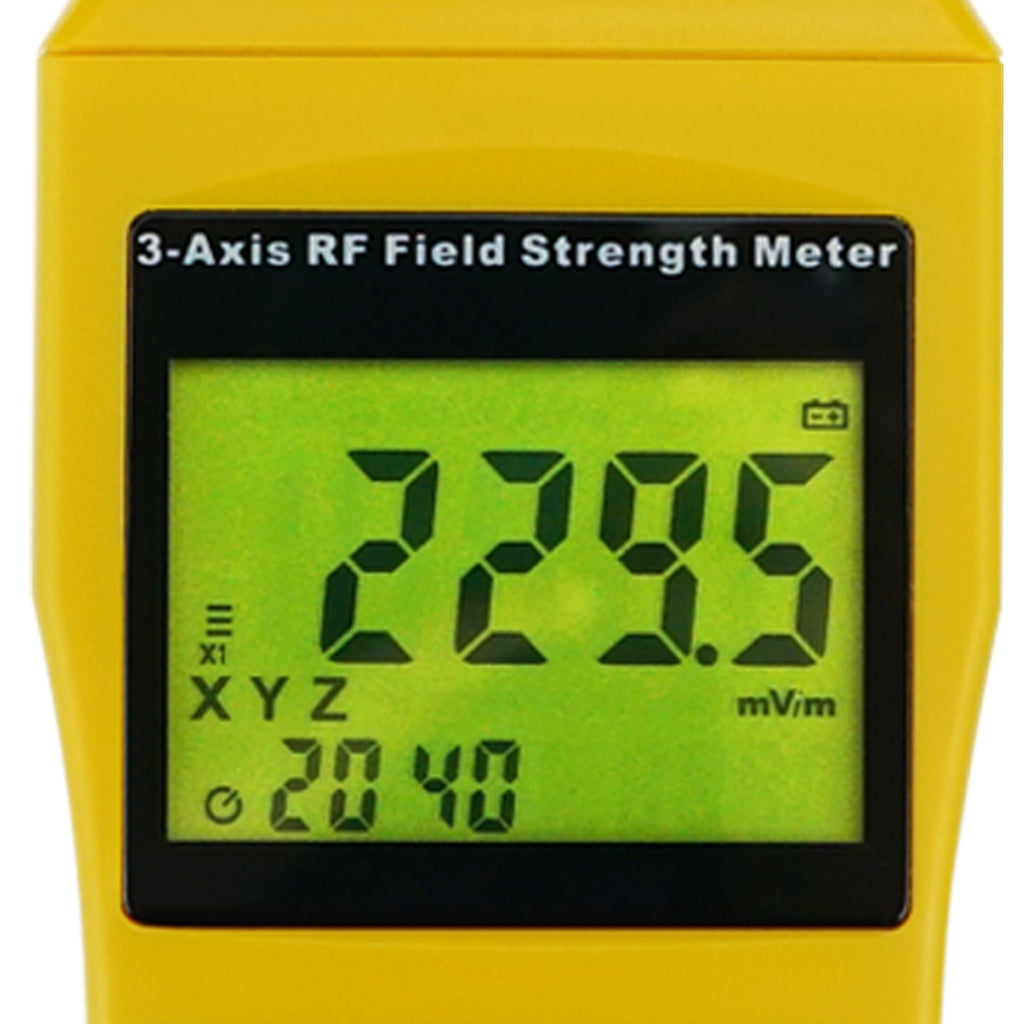

  • Analogue bar graph display
  • Clock LCD display
  • Units: mV/m , V/m , µA/m , mA/m , µW/m2 , mW/m2 , µW/cm2
  • Display resolution: 0.1mV/m, 0.01V/m, 0.1µA/m, 0.1mA/m, 0.001µW/m2, 0.01mW/m2, 0.001µW/cm2
  • Alarm function: adjustable threshold with ON/ OFF
  • Sample rate: 1.5 times per second
  • Display value: instantaneous measured value, maximum value, average value, maximum average value
  • Calibration factor CAL setting range: 0.10 to 9.99
  • Manual data memory and read storage: 200 data sets
  • Auto power off: adjustable threshold 0-99 minutes

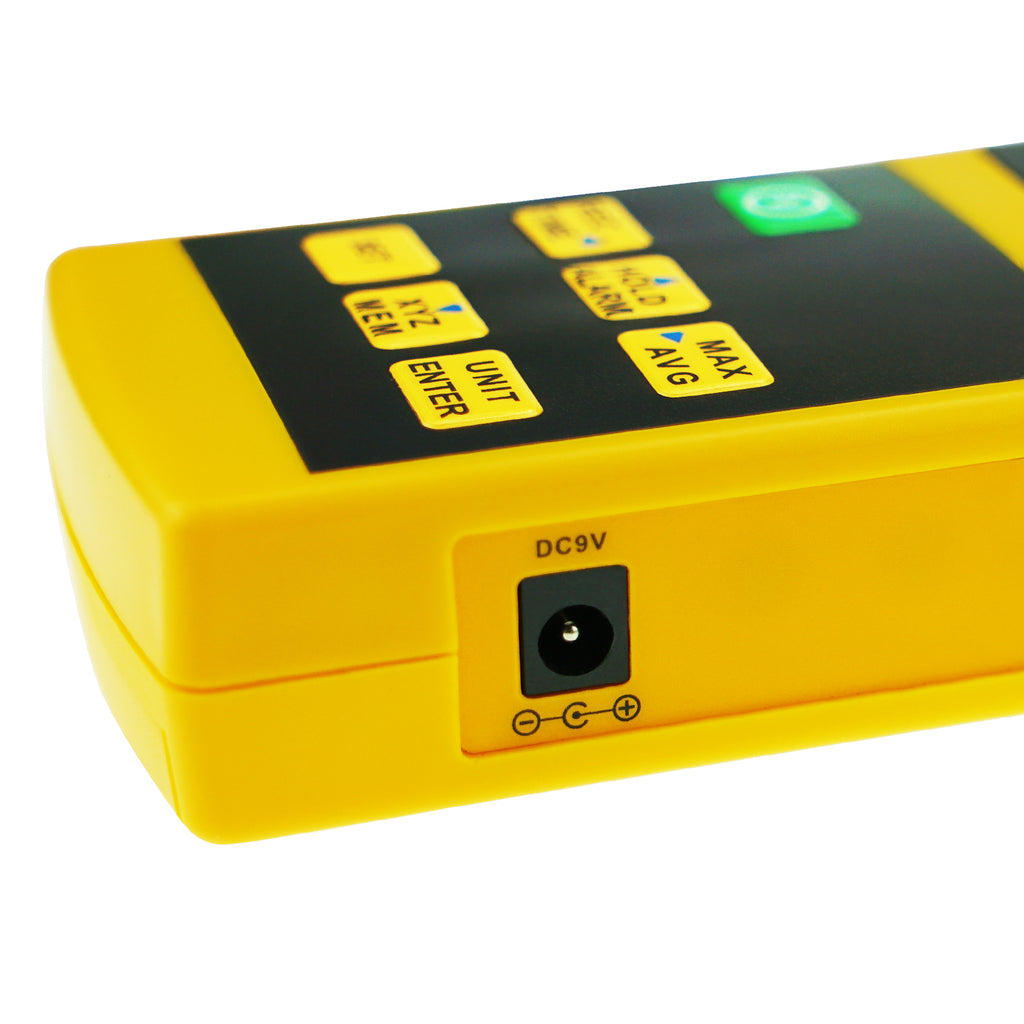

  • Power supply: 9V battery or external AC to DC adapter

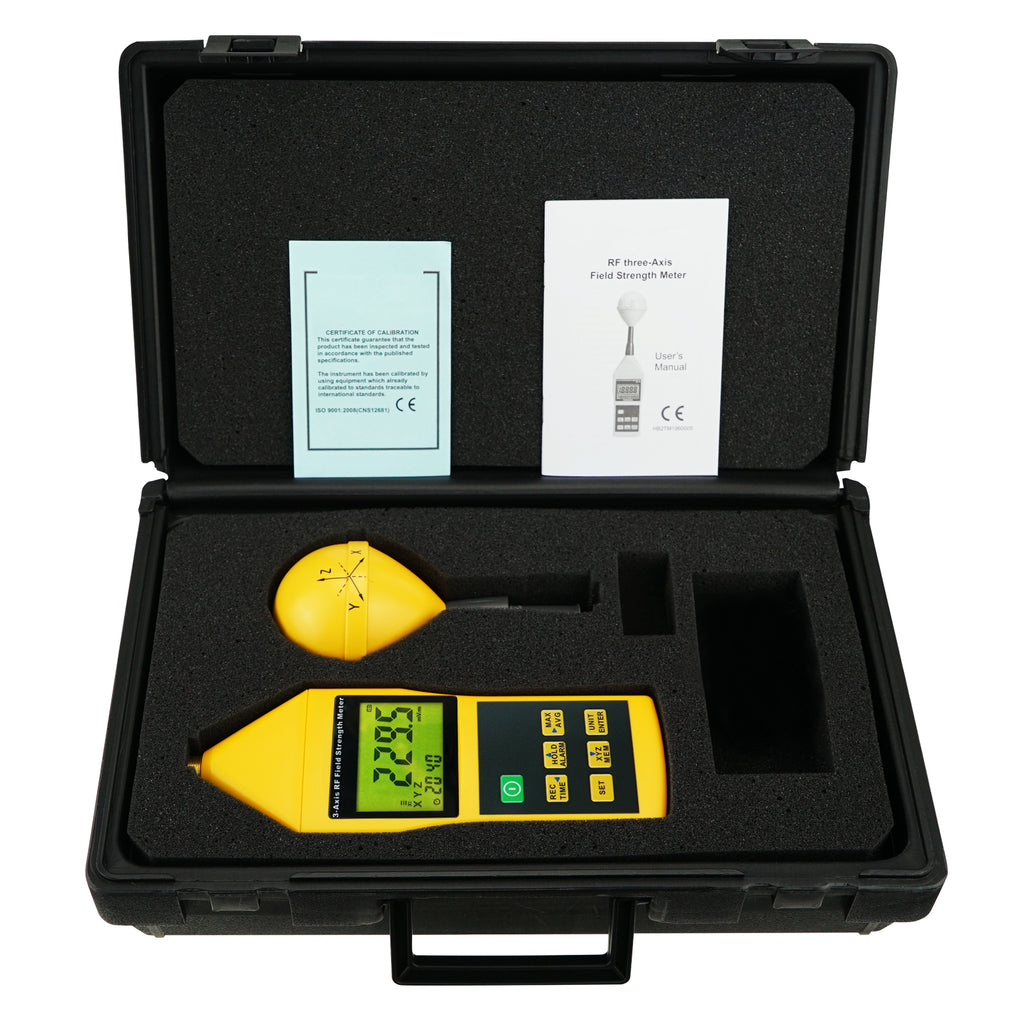

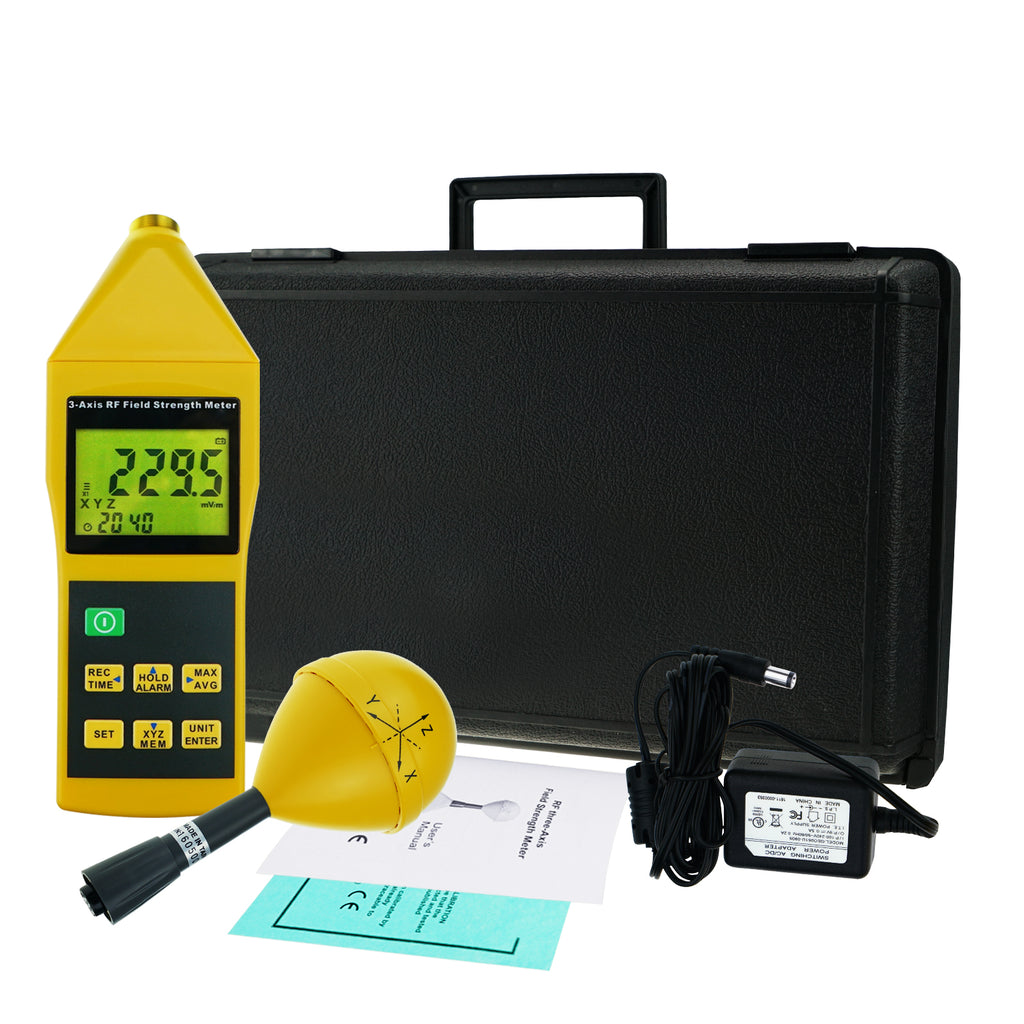

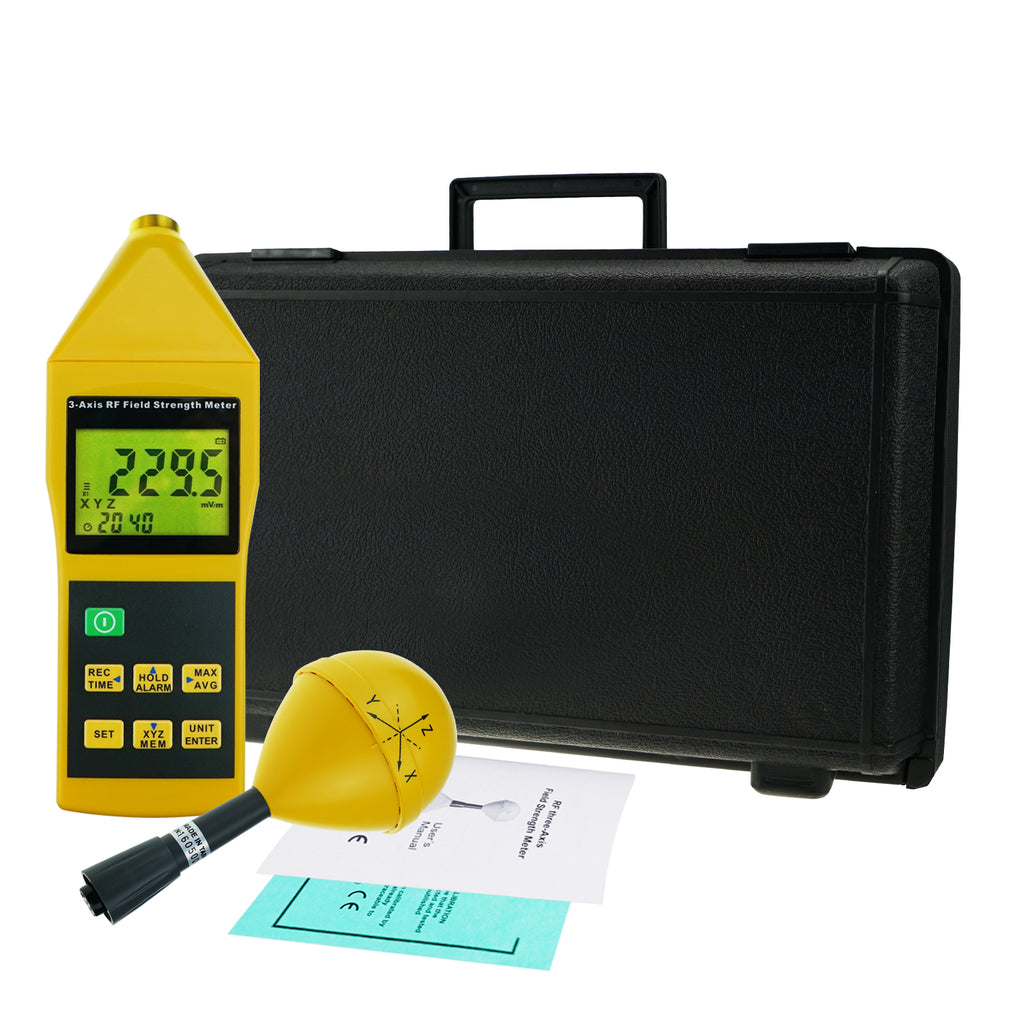

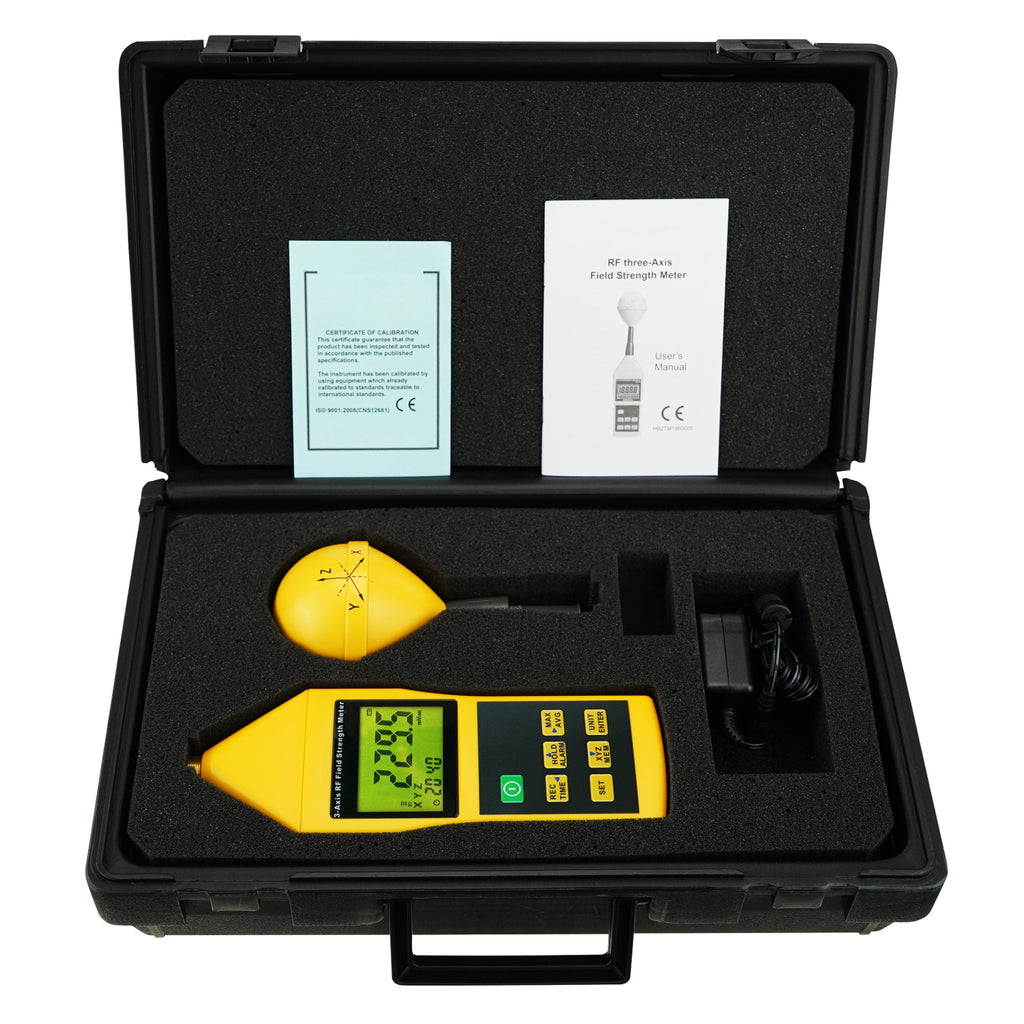

Set Includes:

  • 1 x 3-Axis RF Meter
  • 1 x 9V battery
  • 1 x AC adaptor
  • 1 x Calibration certificate
  • 1 x English Manual
  • 1 x Protective hard case with foam
