This sound level meter datalogger can be used for a very broad field of application such as machines, traffic, vehicle, architectural acoustics, environmental noise and electric noise, ship, office environment, workshop, flight, and other noise. Fit for industry environment protecting, working, sanitation, teaching research and other departments.
- CE marking
- Multifunctional wide range and built-in calibration signal of 94dB at 1kHz (sinusoidal)
- 4 measurement parameters
- Lp (sound level)
- Leq (equivalent continuous A sound level)
- Lmax (maximum sound level)
- LN (percent of all readings over alarm value set)
- Slow / Fast response time
- Gathered data in meter can be saved, retrieved and deleted and downloaded or transfer to computer directly plus it can also be exported to MS Excel.
- With adjustable alarm set and an LED alarm output
- With 0-1.3V, 10mV/dB DC output and auto range selection
- Manual or adjustable Auto Power off time
- Built-in battery condition indicator
- Standardization: IEC651 Type 2 , ANSI S1. 4 Type 2

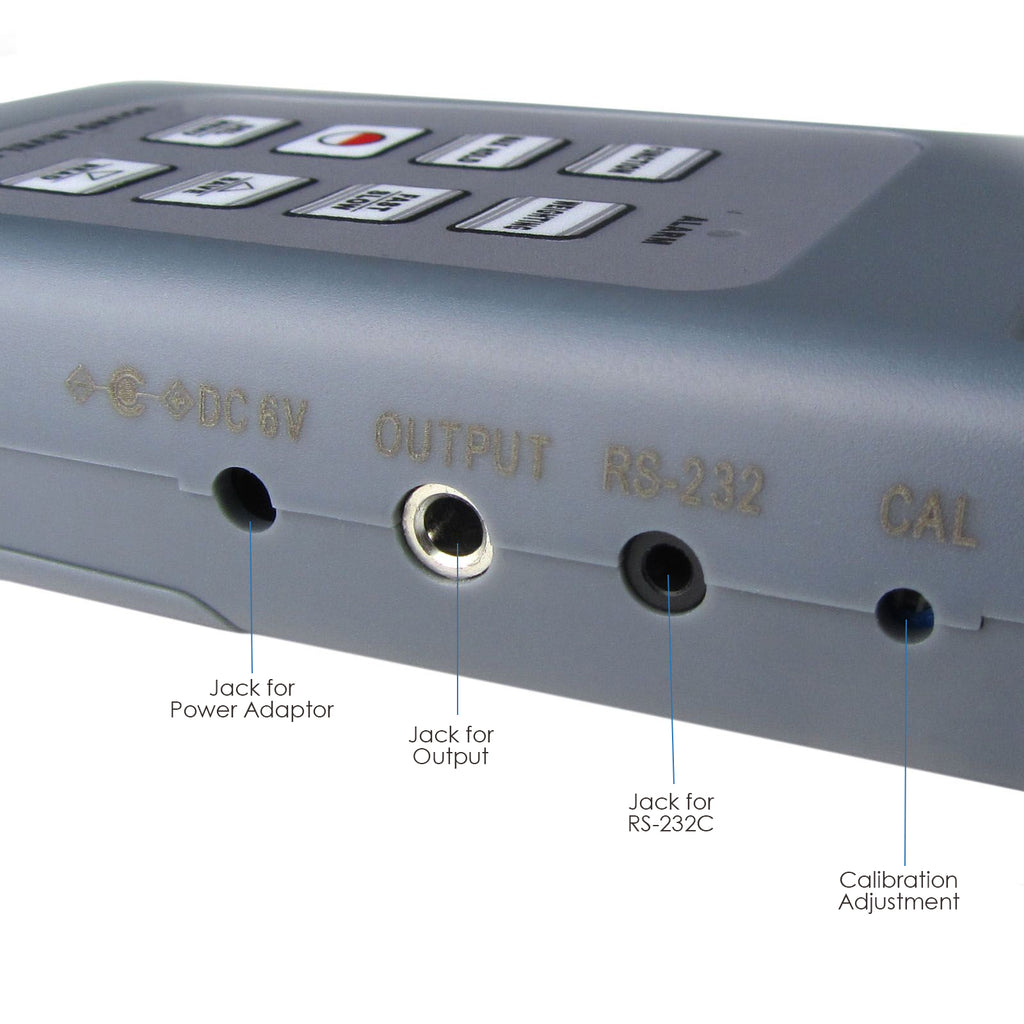

- PC interface: CD Software + RS232C Jack-to-Serial Cable with FREE Serial to USB Adapter
- Support WIN 8
- Lp : 30~130dB (A) ,35~130dB (C) , 35~130dB (F)
- Leq : 30-130dB (10s,1m,5m,10m,5m,30m,1h,8h,24h interval)
- LN. : 0-100%
- Resolution: 0.1dB
- Accuracy: ±1dB
- Frequency range: 20.0 ~ 12,500Hz
- Frequency weighting: A,C & F (Flat)
- Built-in calibration signals : 94dB at 1kHz (sinusoidal)
- Memory: 30 groups max
- Time weighting: FAST125mS, SLOW: 1 sec.
- DC output: 0~1.3V,10mv/dB

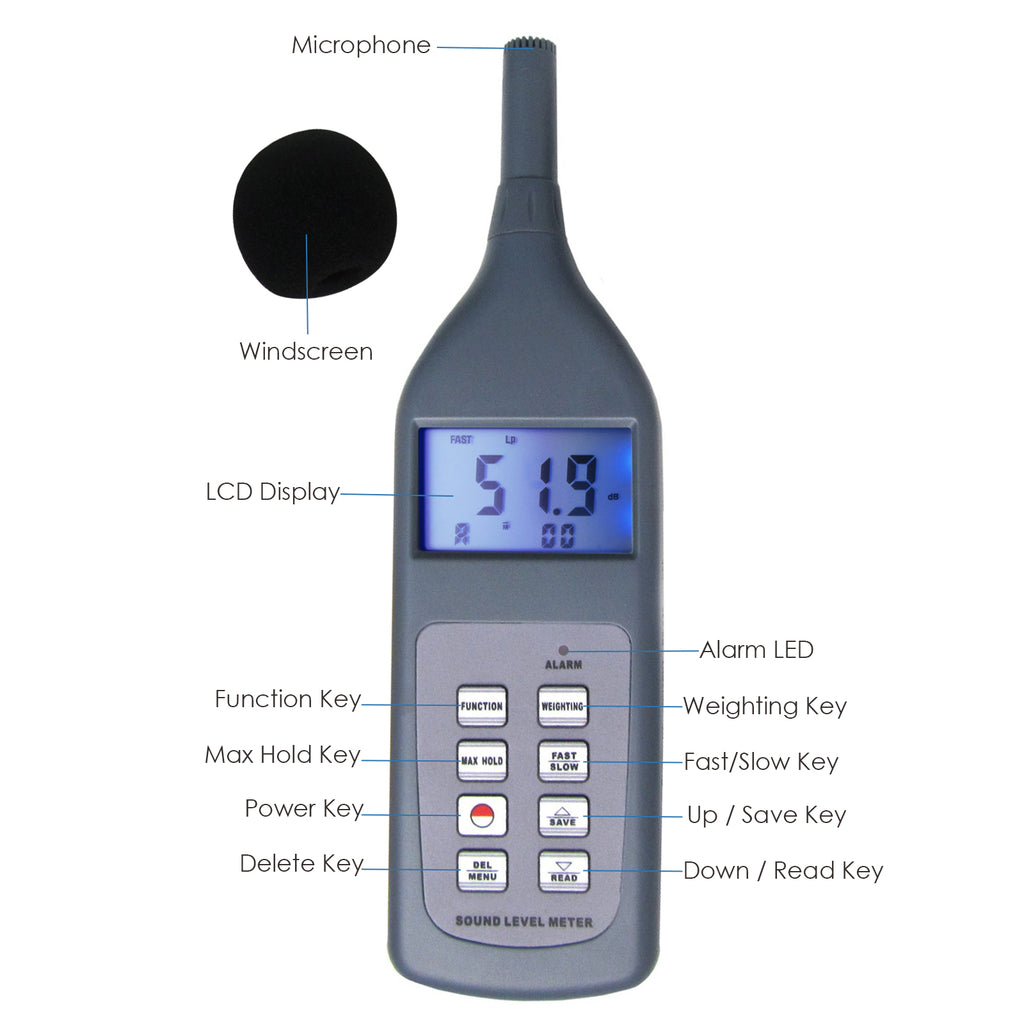

- Microphone: 0.5" Electret condenser microphone

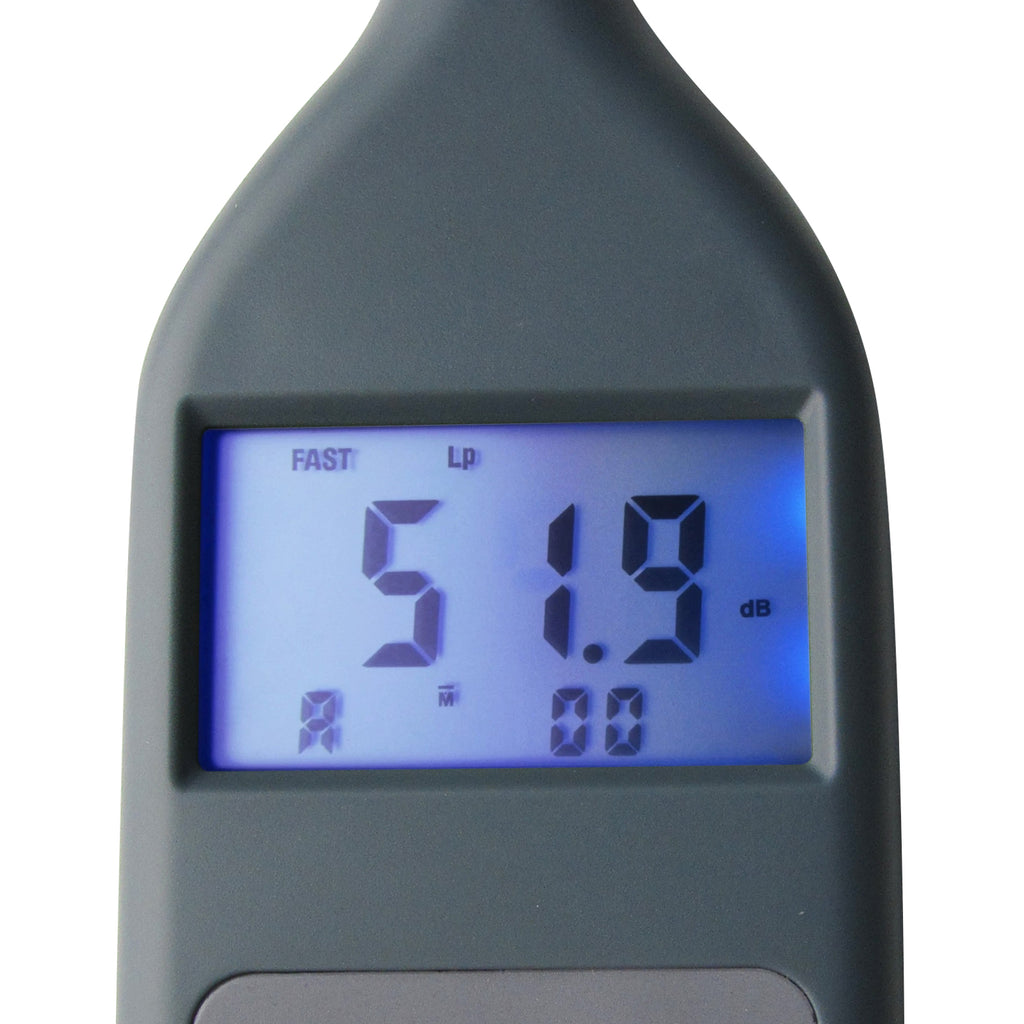

- Display: 14mm (0.55") LCD Screen with backlight
- Alarm: electron, adjusable,30~130dB set, LED and optional relay contact (NC) output

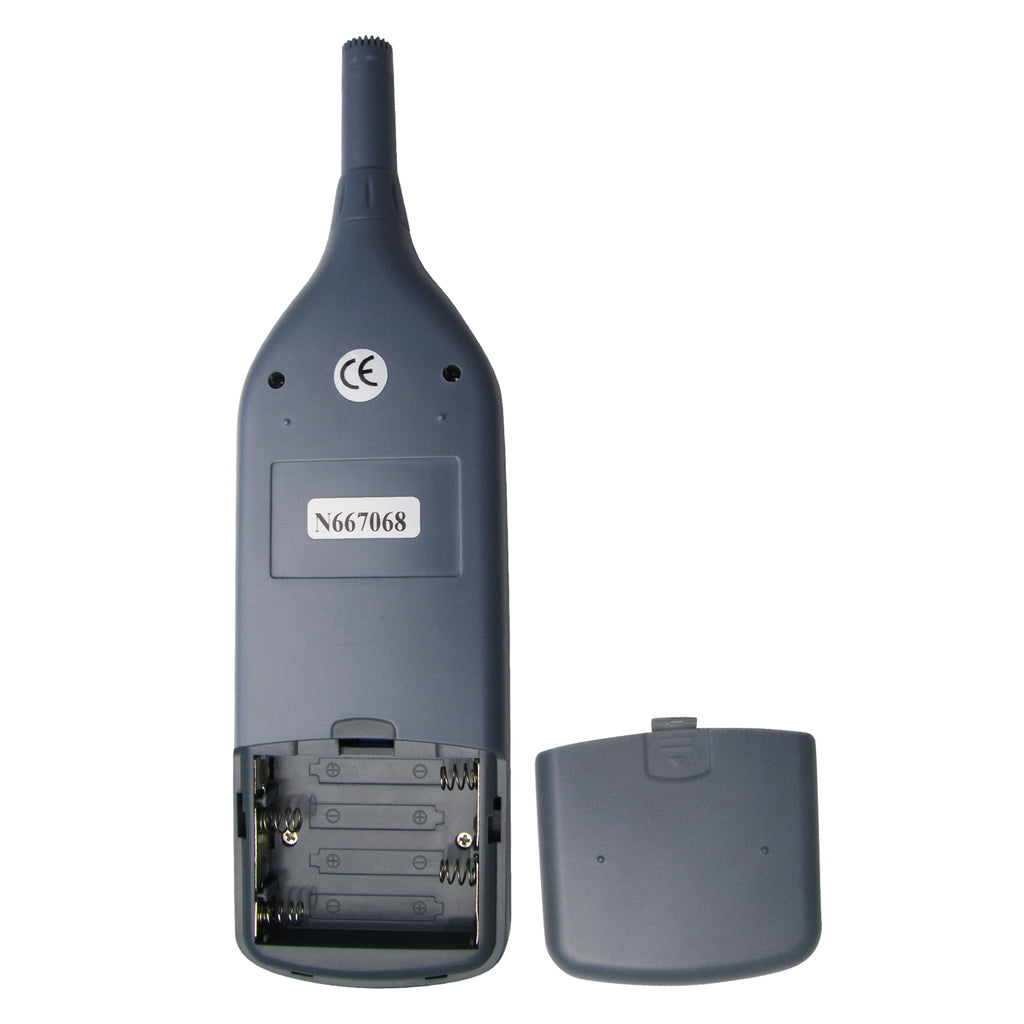

- Power supply: 4x1.5v AAA (UM-4 battery) or External 6V DC 100mA (not included)

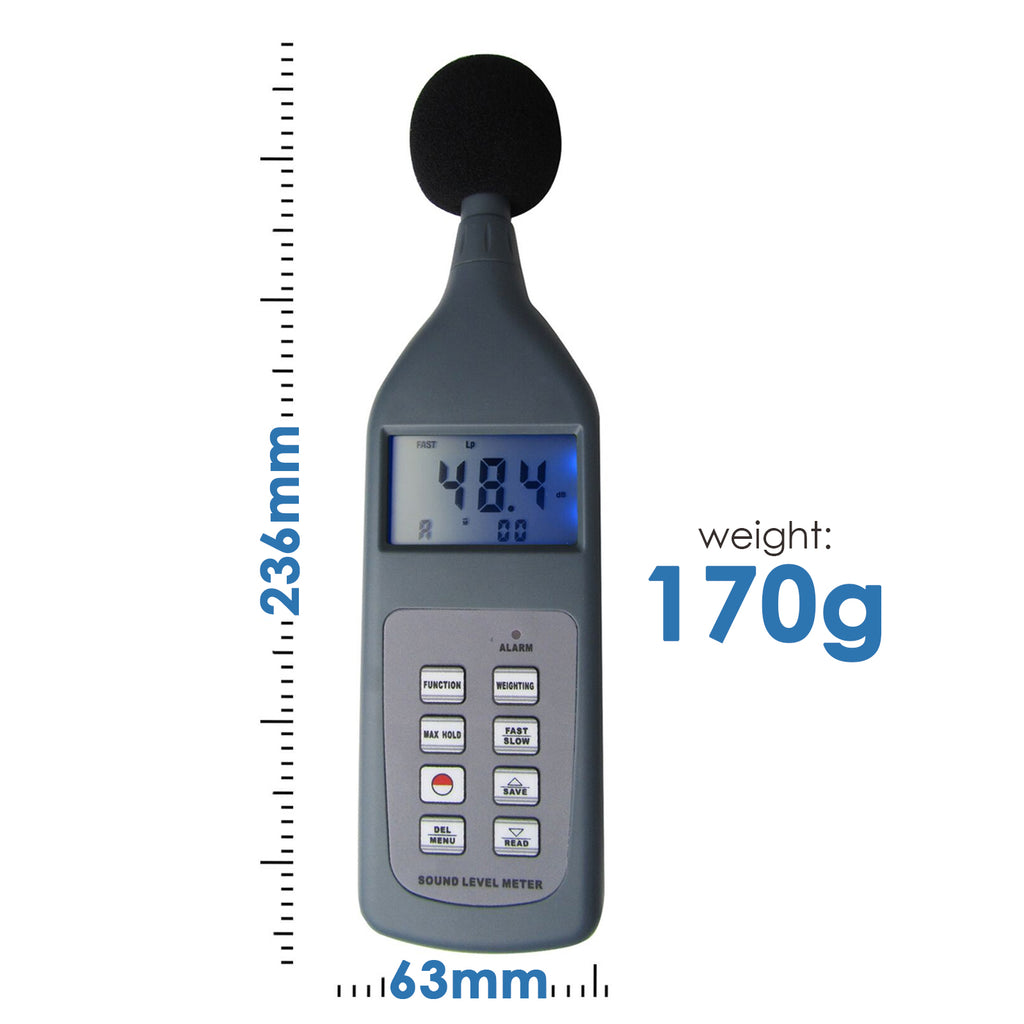

- Size: 236 x 63 x26 mm
- Weight: 170g (excluding batteries)

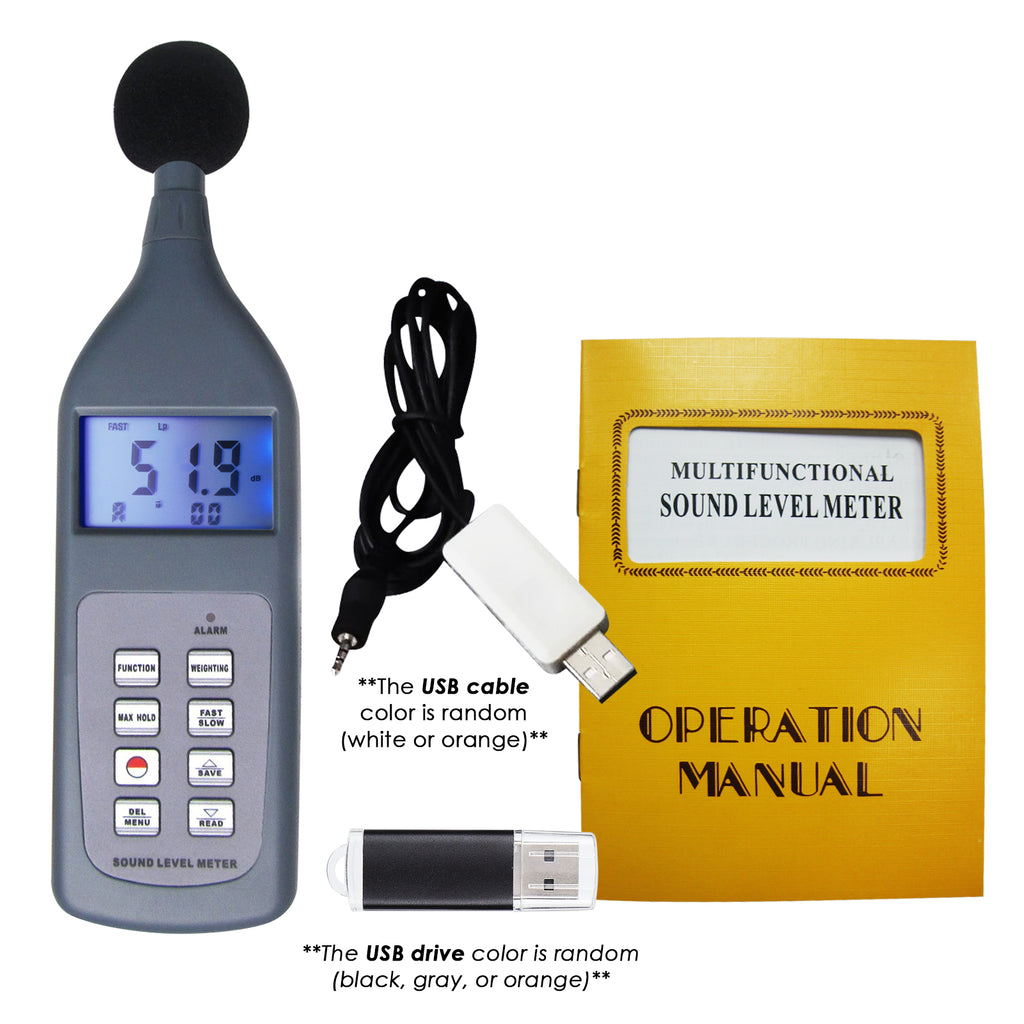

- 1 x Sound Level Meter

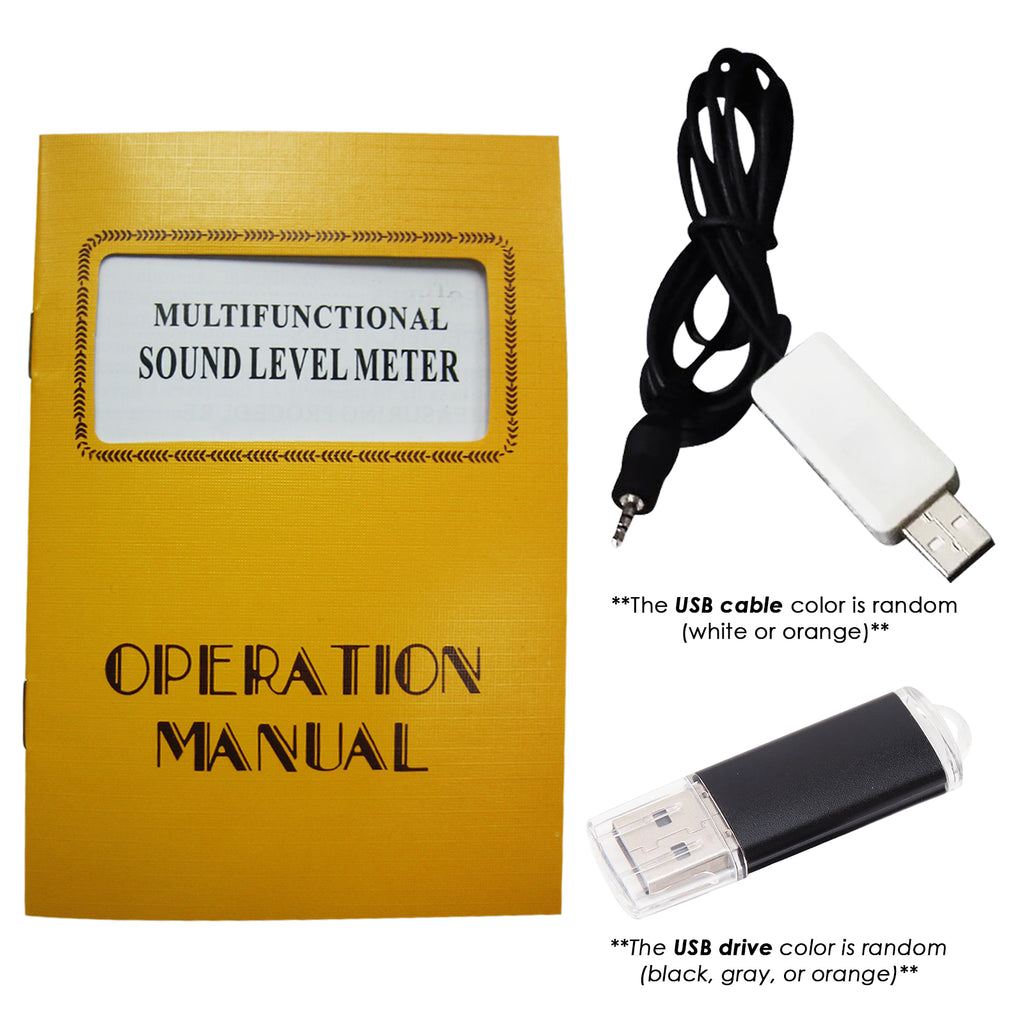

- 1 x CD software and Cables for USB / RS232C connection
- 1 x Windscreen Filter Ball
- 1 x English instruction booklet
- Hard plastic carry case with padded & contoured interior
- 1 x Shock Absorbent Carrying Case
