MATK-817 Portable Handheld Differential Air Pressure Manometer 15.000psi Gauge Meter HVAC Tester

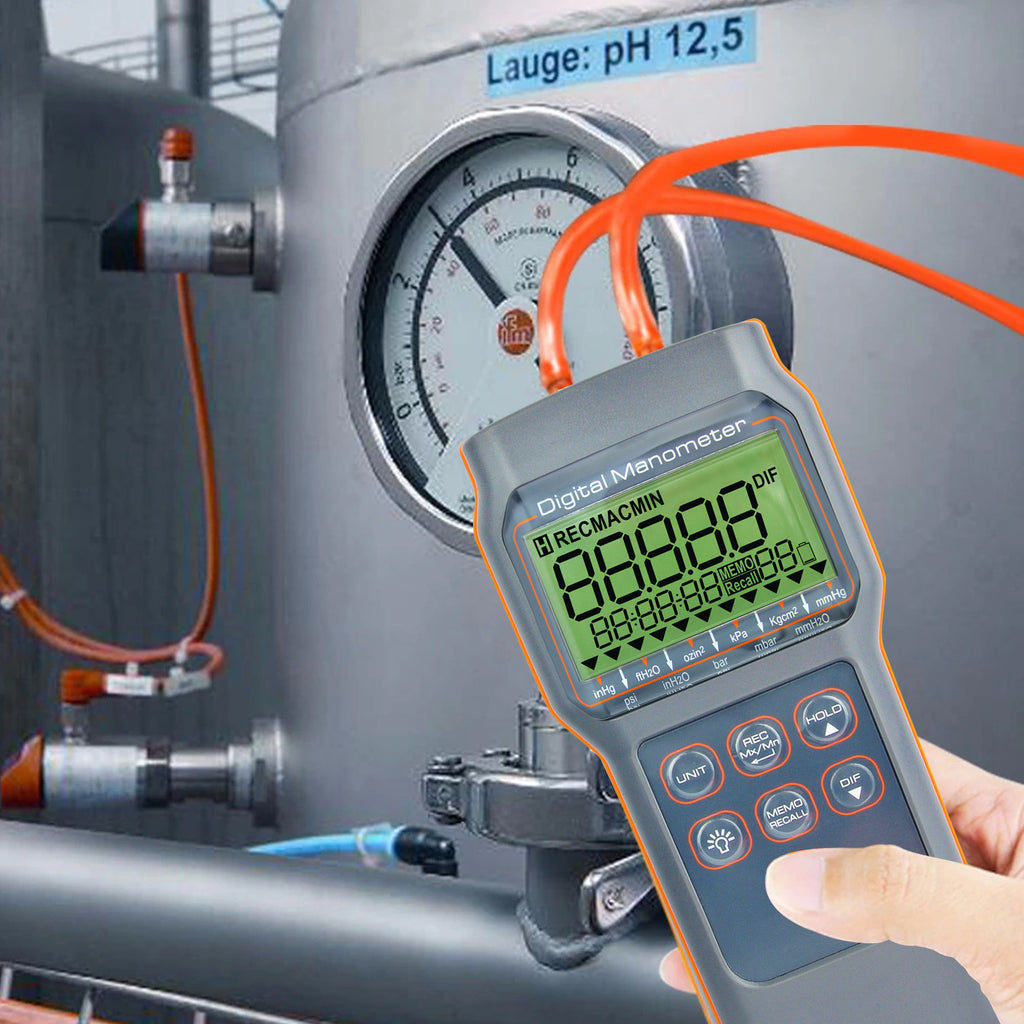

This Manometer is ideal for HVAC/R technicians measuring pressure level, Medical equipment, Computer Peripherals, Pneumatic controls.
- 11 measuring units: bar, oz in2, psi, kPa, inHg, mbar, mmHg, kgcm2, inH2O, ftH2O, mmH2O
- Highly accurate measurements

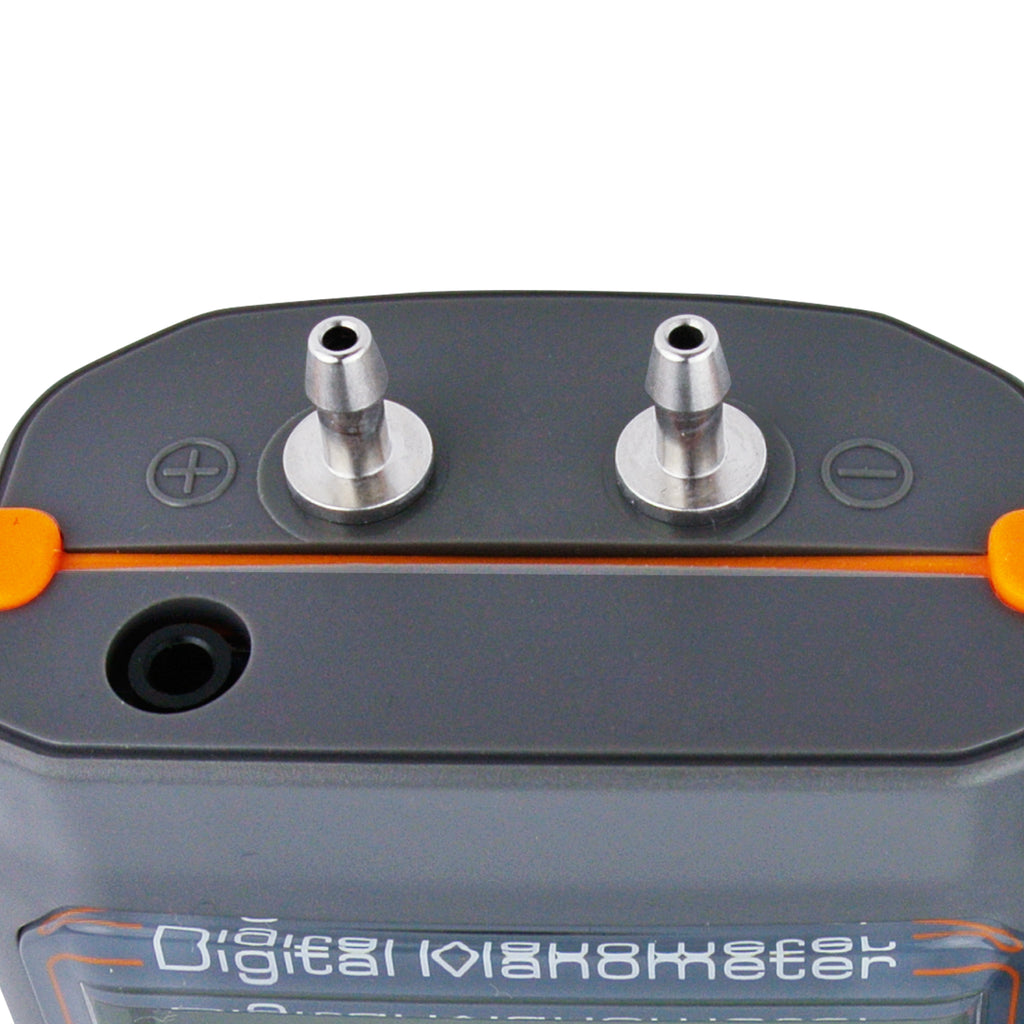

- Available 4mm negative and positive metal hose plug
- Hold function
- Min, Max, Record Features
- Over-range indication with error message
- Display pressure change from baseline
- Blue backlight function
- Auto power off
- Accumulative time shows in recording period
- PC interface available for real-time download
- Low battery indicator
- Range and Resolution:
- psi: ±15.000 ; 0.001
- kPa: ±103.42 ; 0 .01
- mmHg: ±775.7 ; 0.1
- Kg/cm2: ±1.055 ; 0.001
- mbar(hpa): ±1034.2 ; 0.1
- bar: ±1.034 ;0.001
- in H2O: ±415.20 ; 0.01
- mmH2O: ±10546 ; 1
- in Hg: ±30.5 ; 0.001
- ft H2O: ±34.6 ; 0.001
- oz/inch2: ±240.00 ; 0.01
- Accuracy: ±0.3% of full scale at 25°
- Repeatability: ±0.2% ~ 0.5% of full scale
- Linearity / Hysteresis: ±0.29% ~ 1% of full scale
- Combined Accuracy: ±1.0% of full scale
- Response Time: 0.5 second

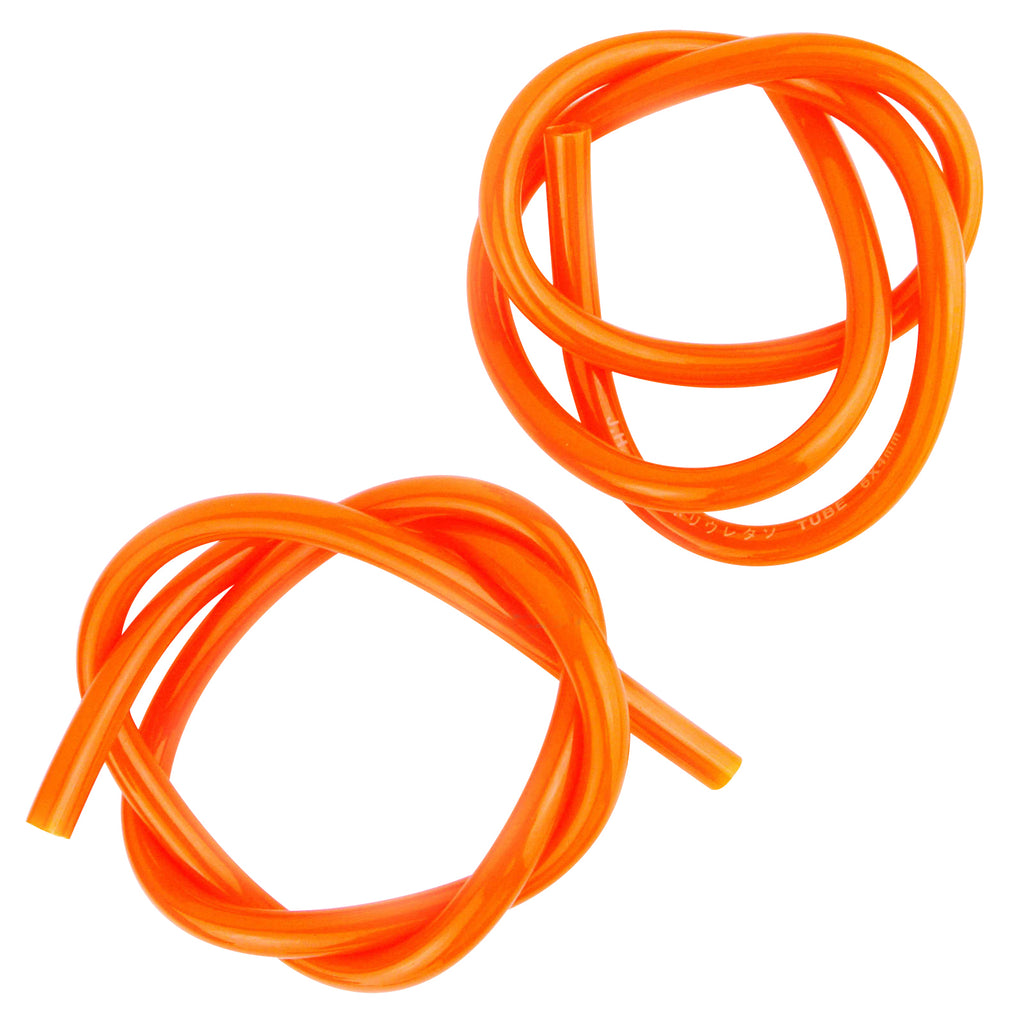

- Lug & Tubing : 4mm lug-orange tube 500mm long (included in set)
- Compensated temp. range:10 ~ 30 °C
- LCD size: 32.5 x 54mm
- Operating Temp: 0 ~ 50 °C
- Operating RH: Humidity <80%
- Storage Temp: -20 ~ 50 °C
- Storage RH: Humidity <90%

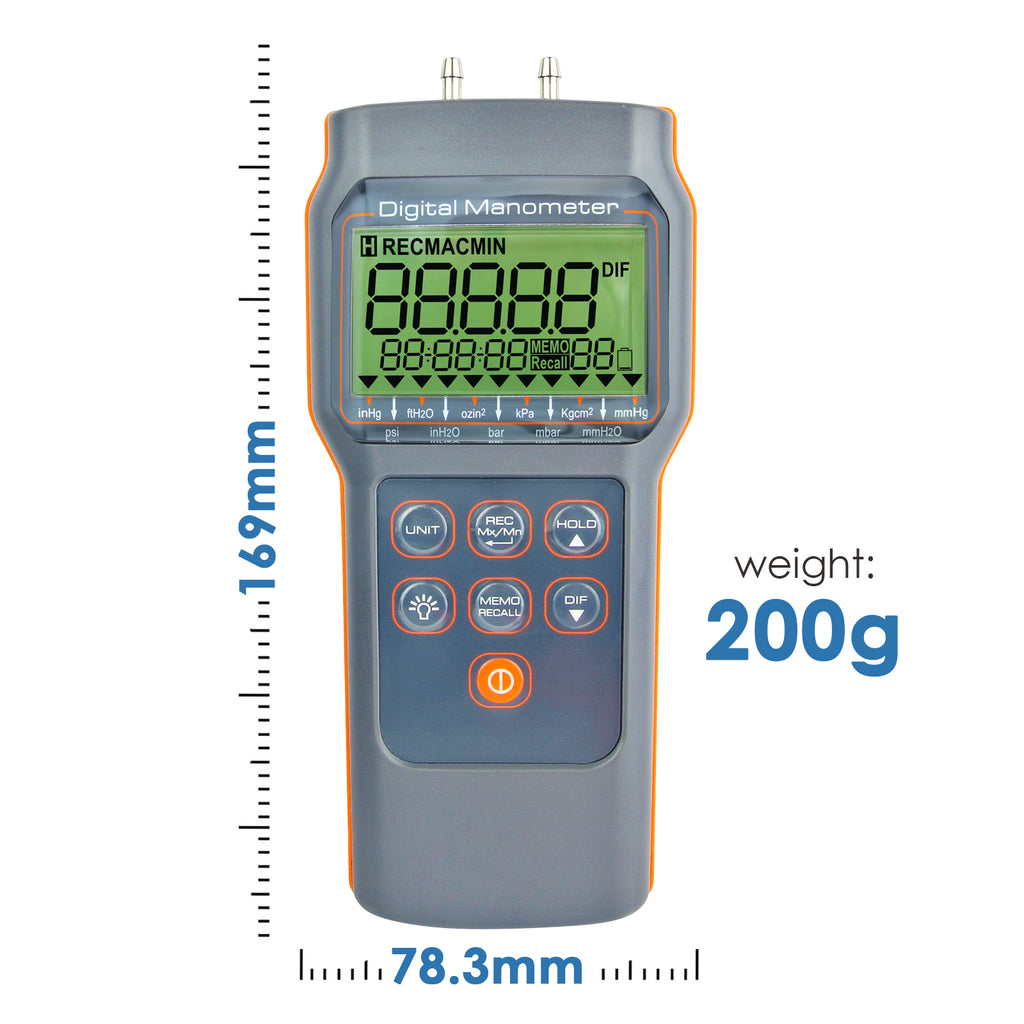

- Dimension: 169 x 78.3 x 34.4
- Weight: ~200g

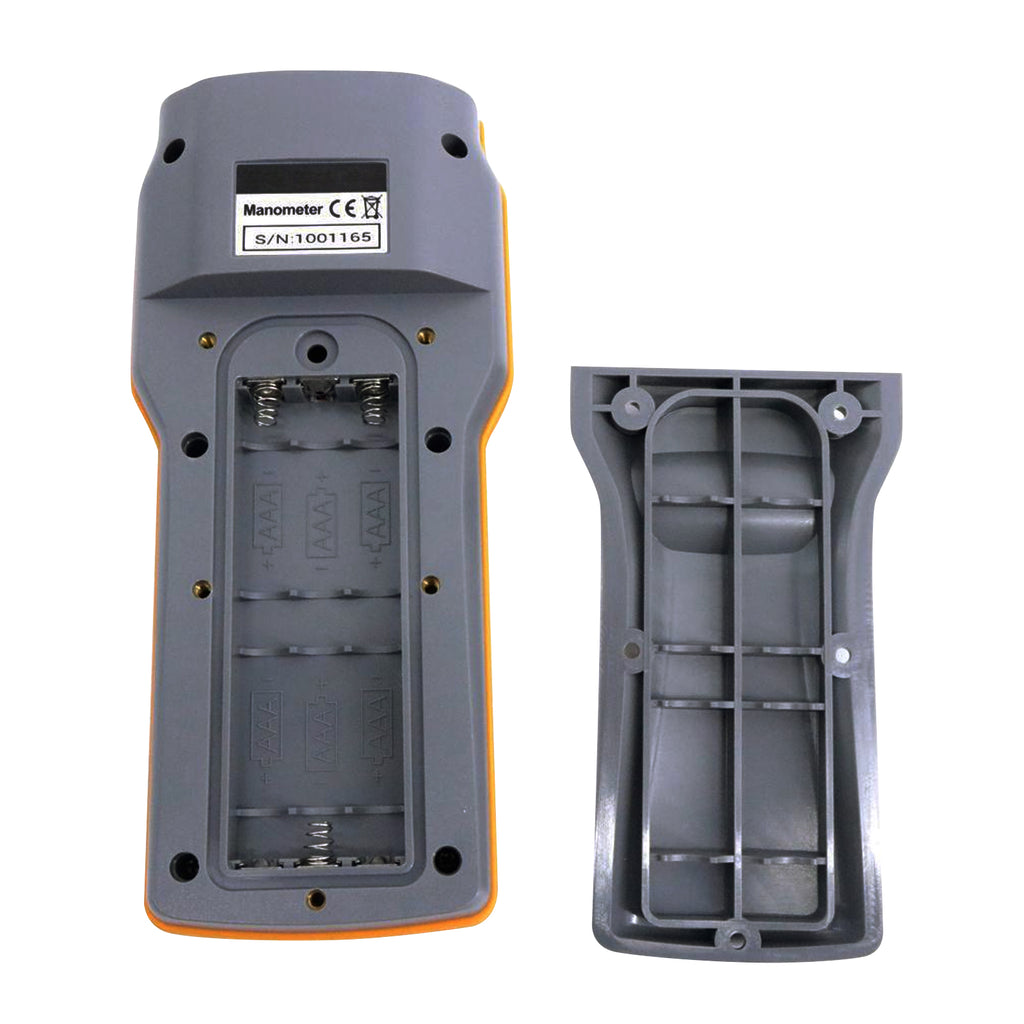

- Battery: 6 x AAA batteries

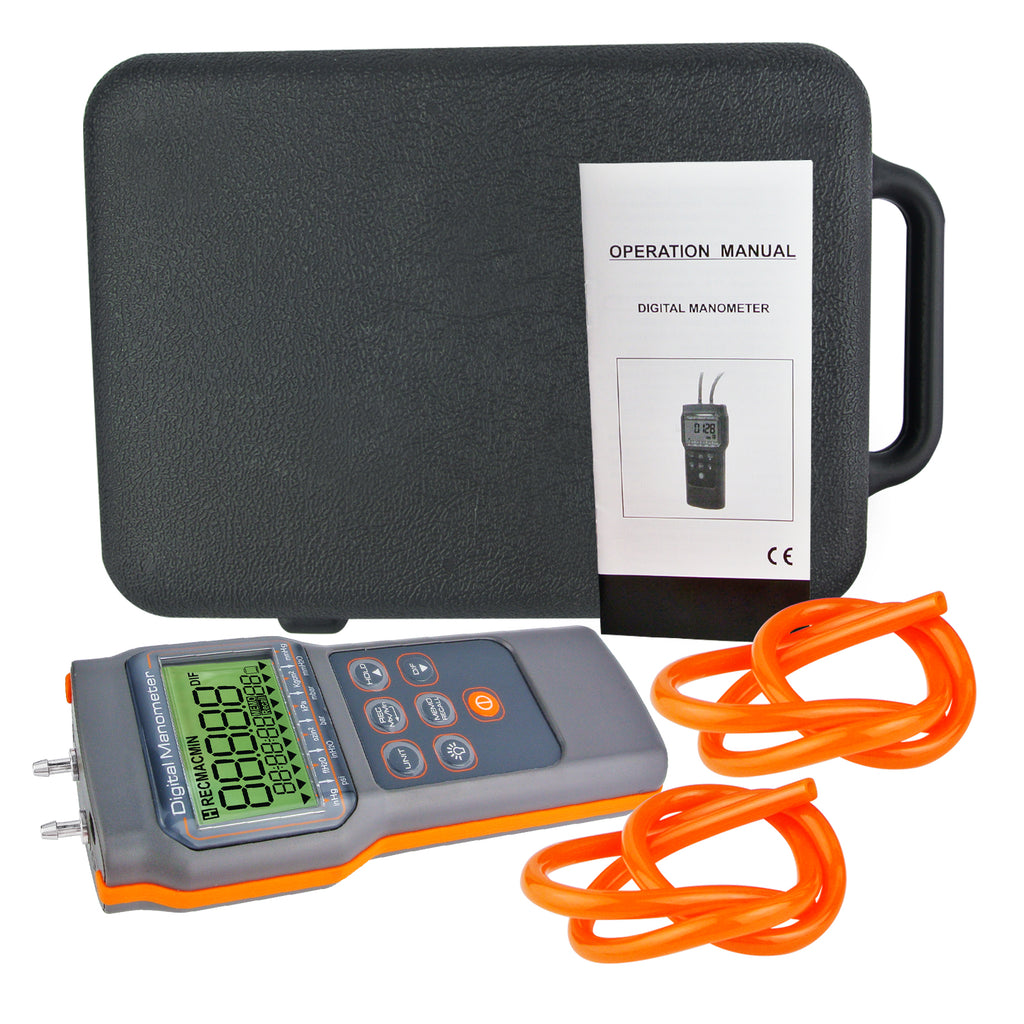

- 1 x Economic Digital Manometer
- 6 x AAA Battery
- 1 x English Instruction Manual
- 2 x Connection Hose

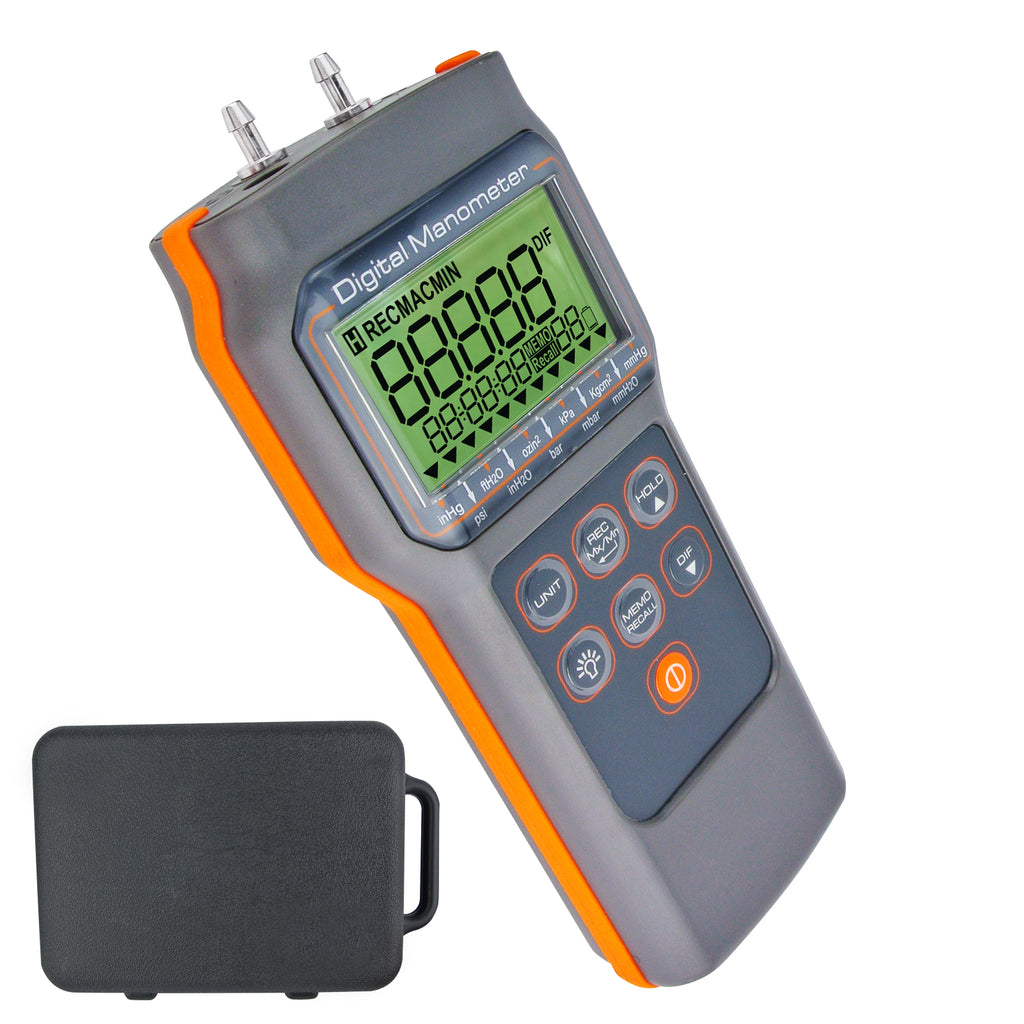

- 1 x Hard carry case
