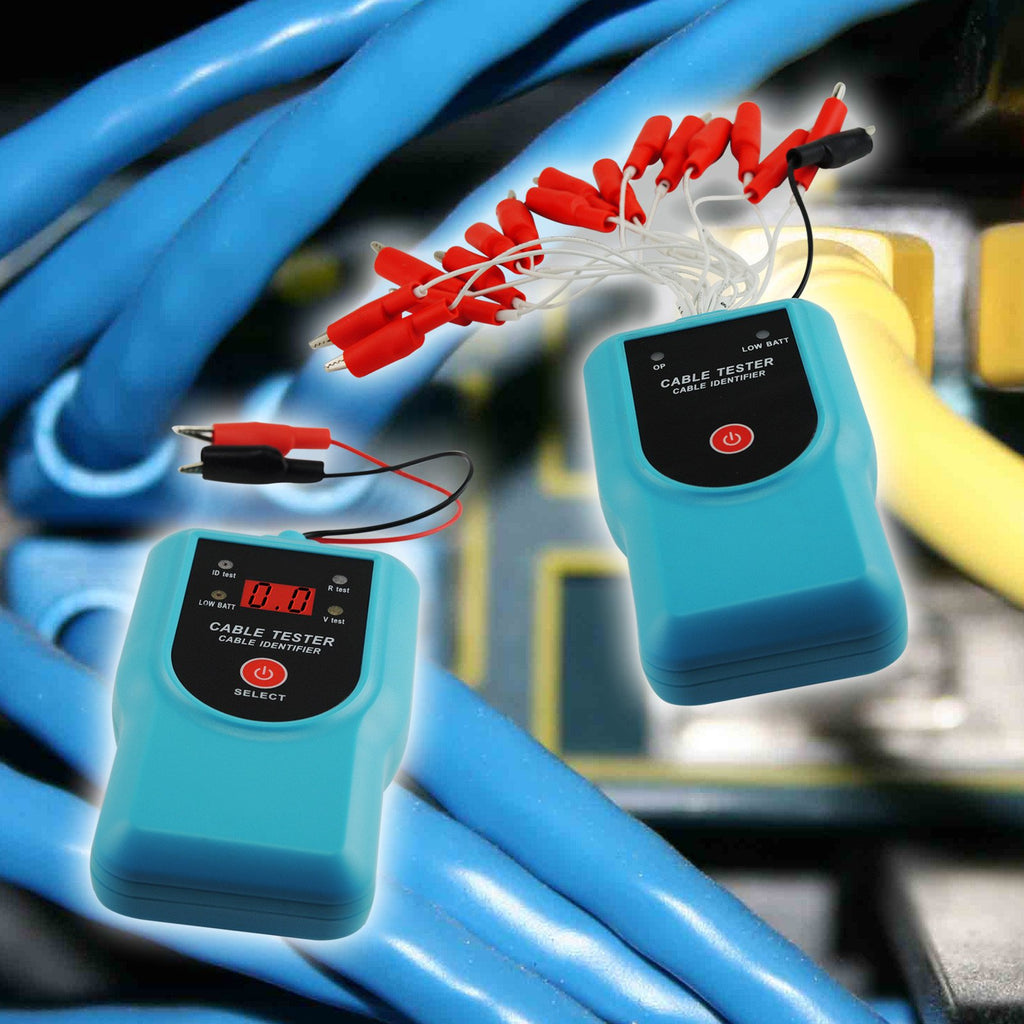

This instrument consists of a Transmitter and a Receiver, they can be connected to the two ends of a core of a multi-core cable to identify or test this core. In addition, the Receiver can also be used to test DC voltage and continuity.

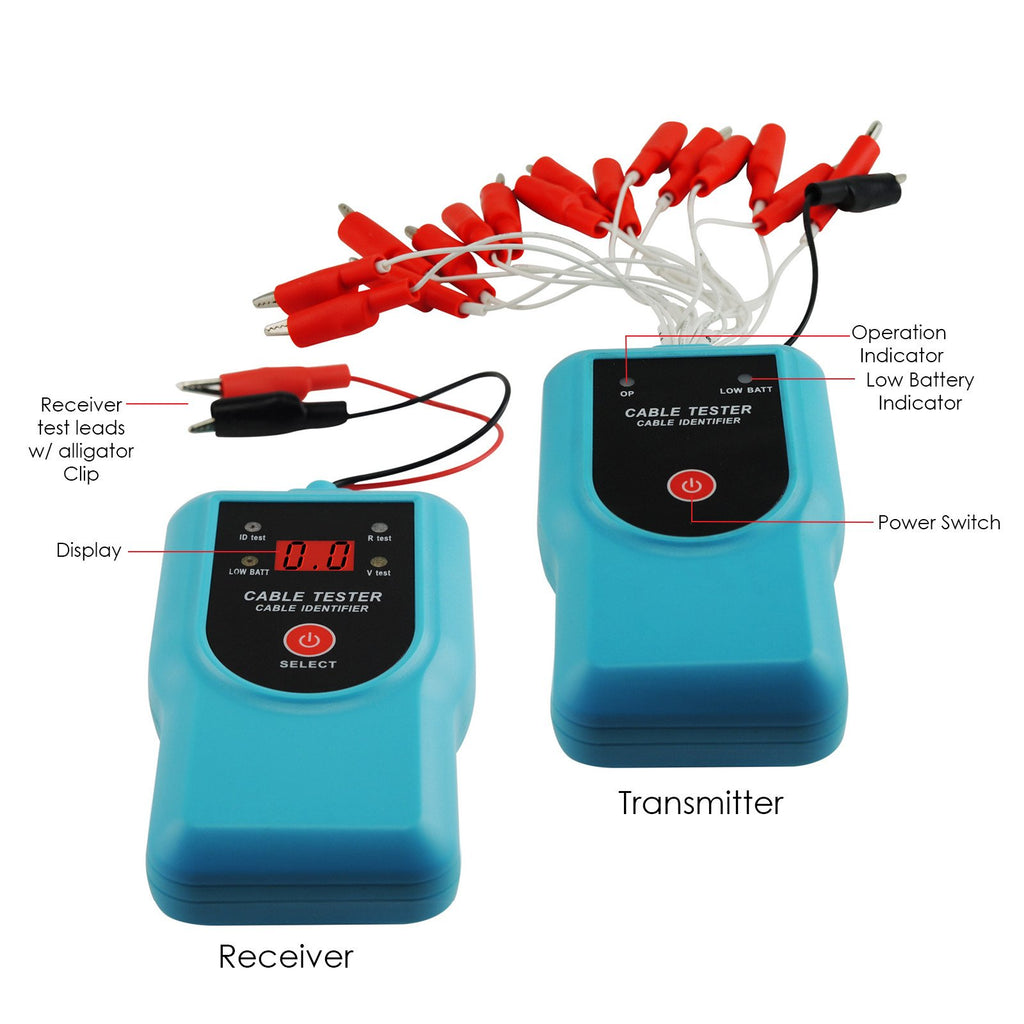

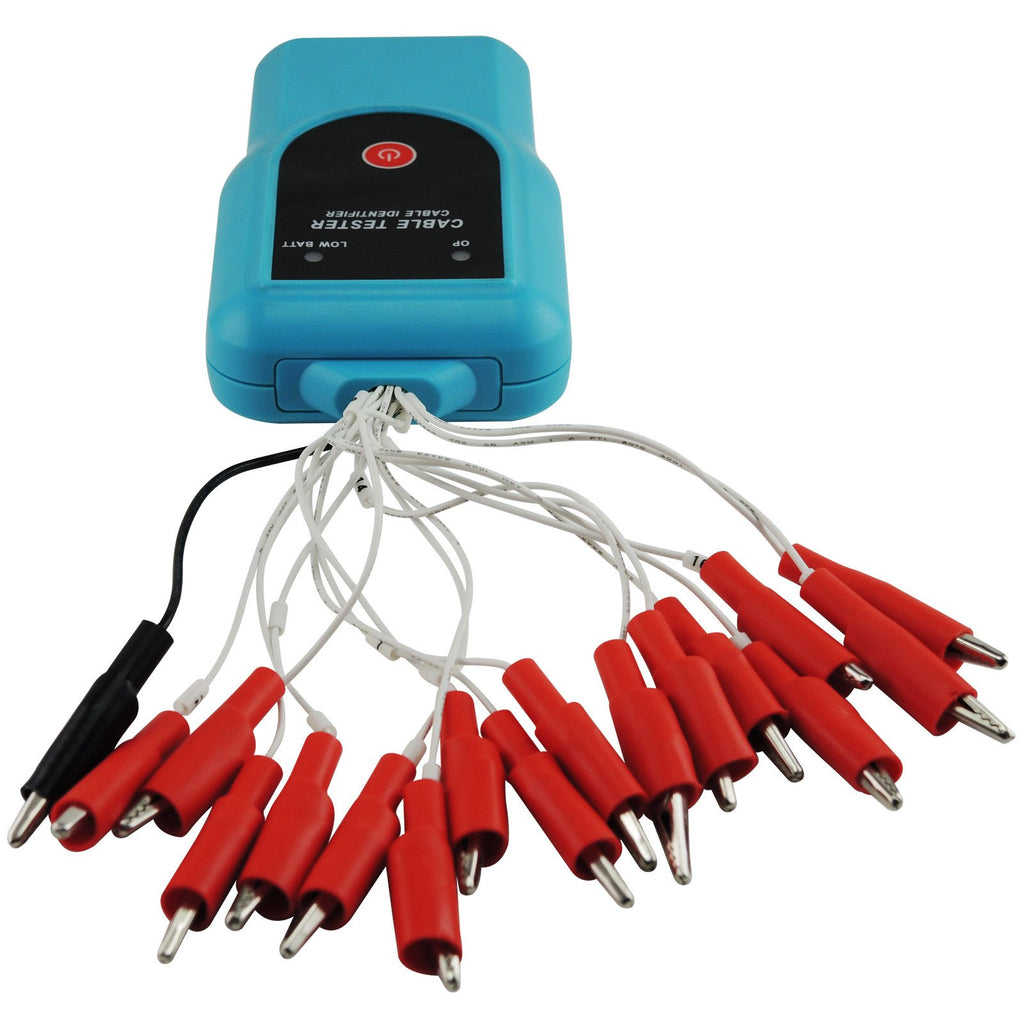

- Transmitter :
- Test leads with alligator clips
- Operation indicator
- Power switch
- Low battery indicator

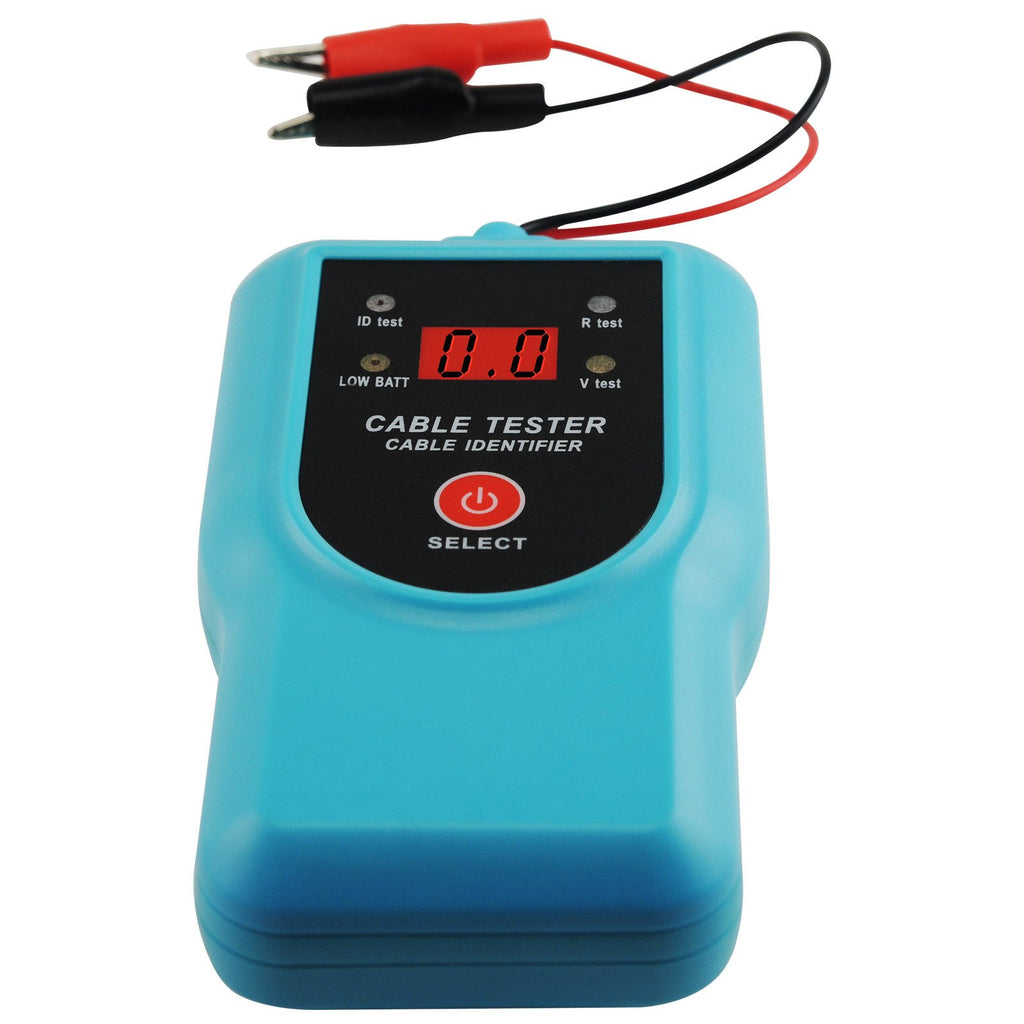

- Receiver :
- ID test indicator
- Low battery indicator

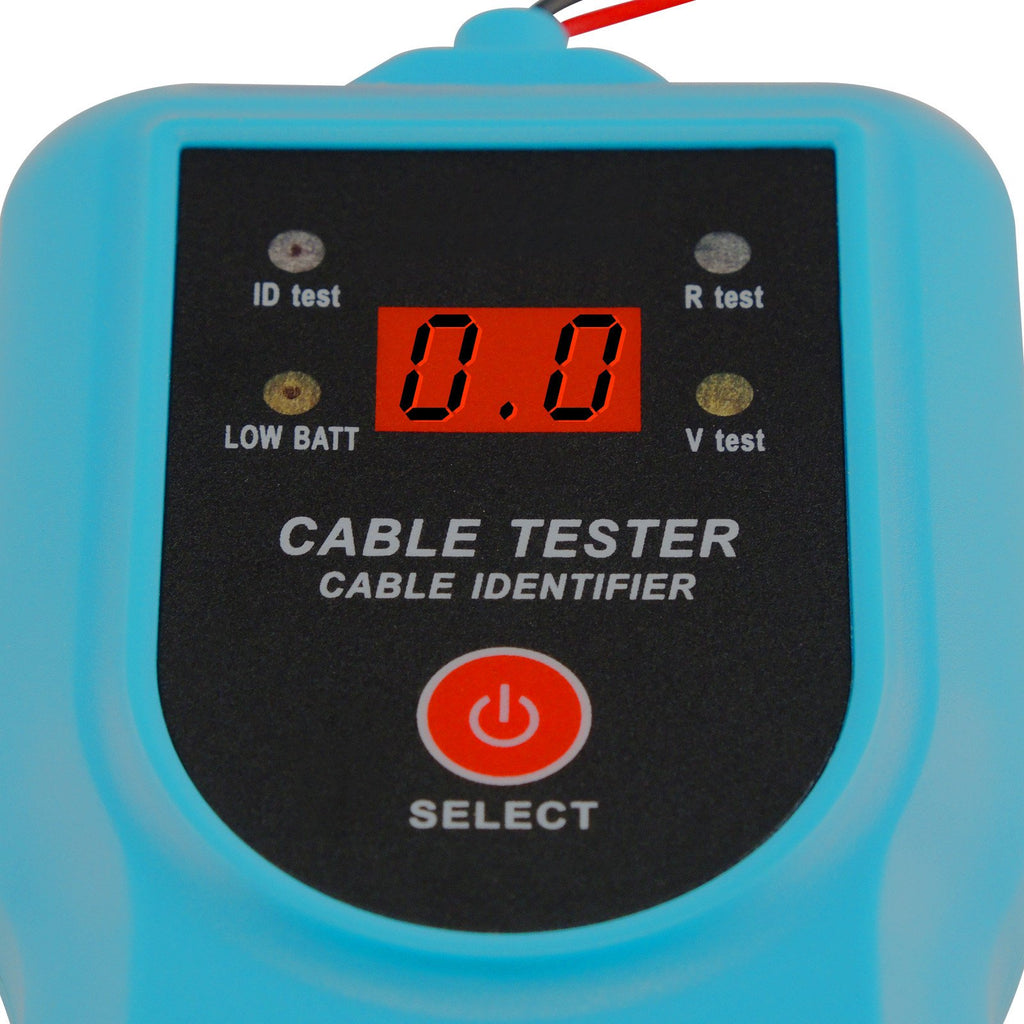

- Digital Display
- Power Switch/function selector switch
- Voltage test indicator
- Continuity test indicator

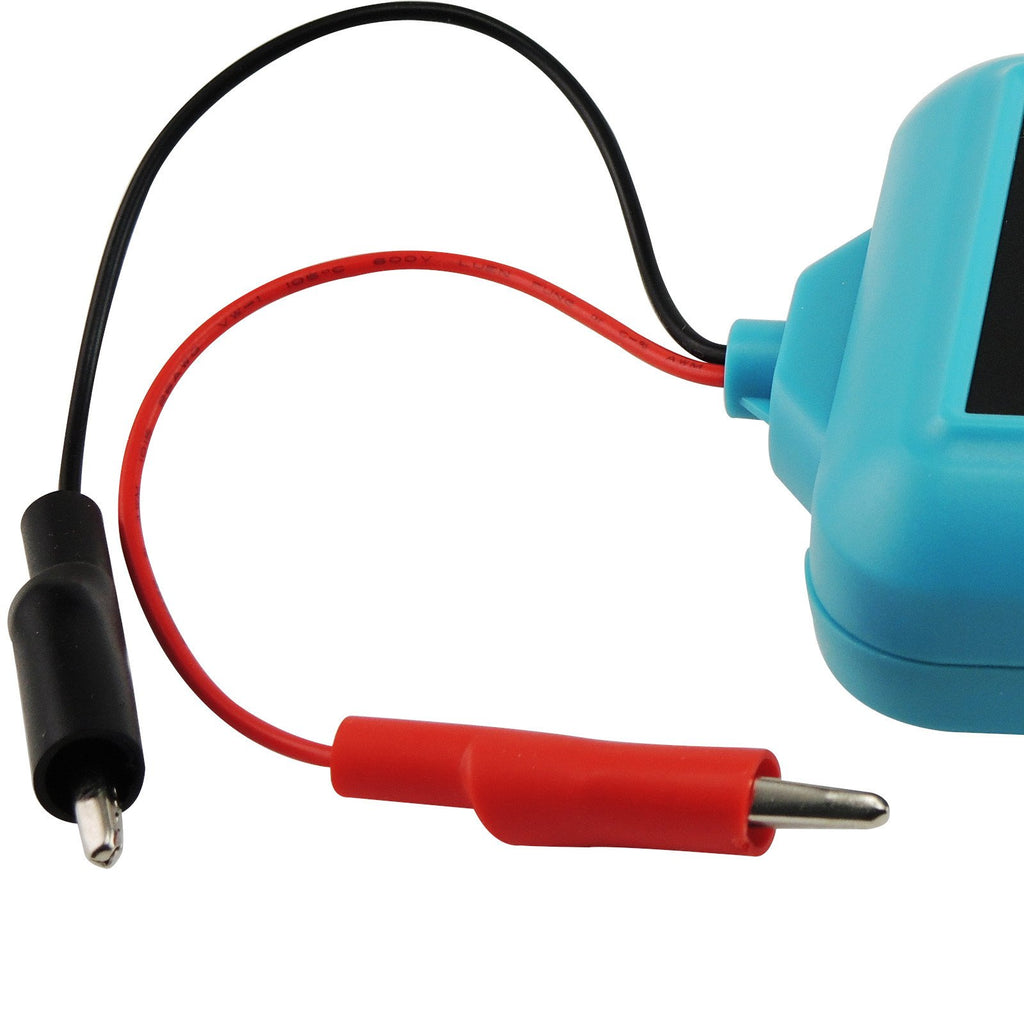

- Receiver test leads with alligator clips

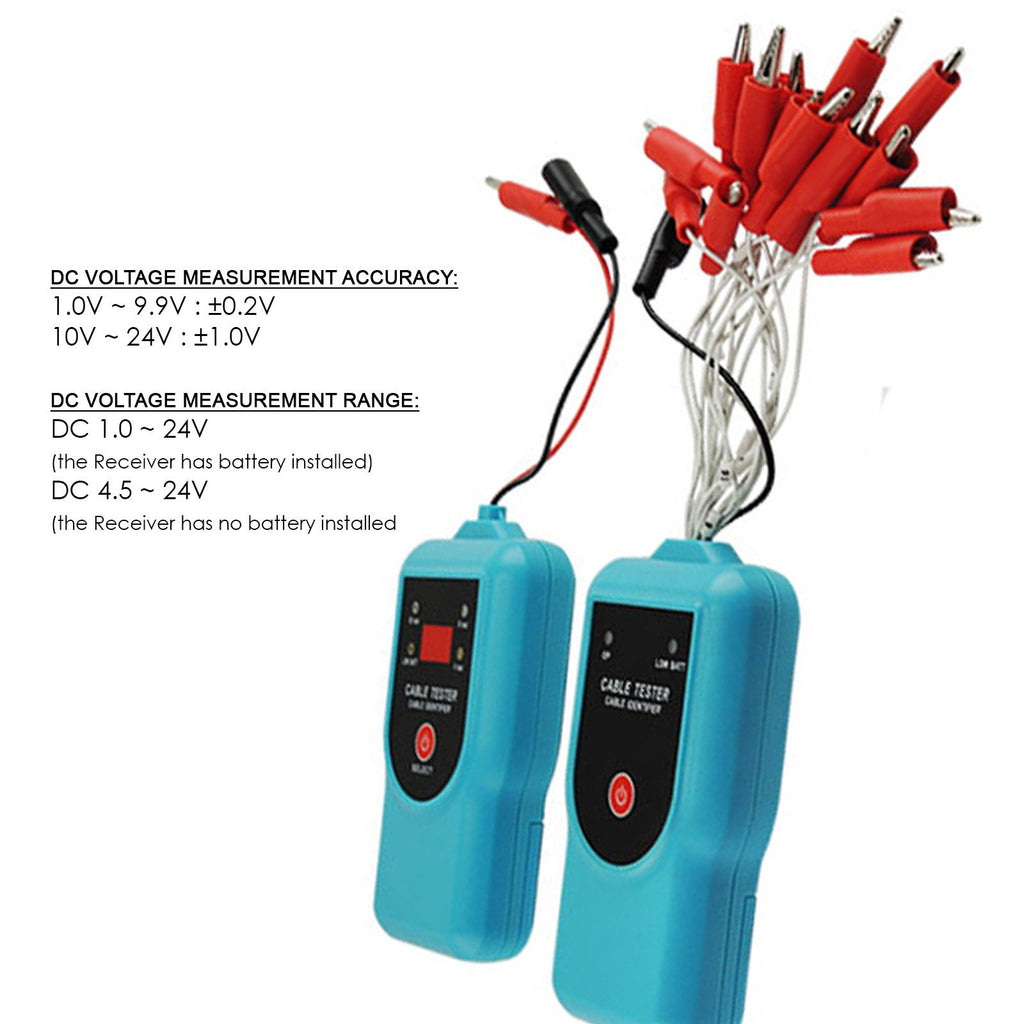

- DC Voltage Measurement Range:
- DC 1.0 ~ 24V (the Receiver has battery installed)
- DC 4.5 ~ 24V (the Receiver has no battery installed)
- DC Voltage Measurement Accuracy:
- 1.0V ~ 9.9V : ±0.2V
- 10V ~ 24V : ±1.0V
- Continuity Test: When the resistance is less than about 100Ω, the display will show"- -" and the built-in buzzer will sound.
- Overload Protection: Max DC 50V

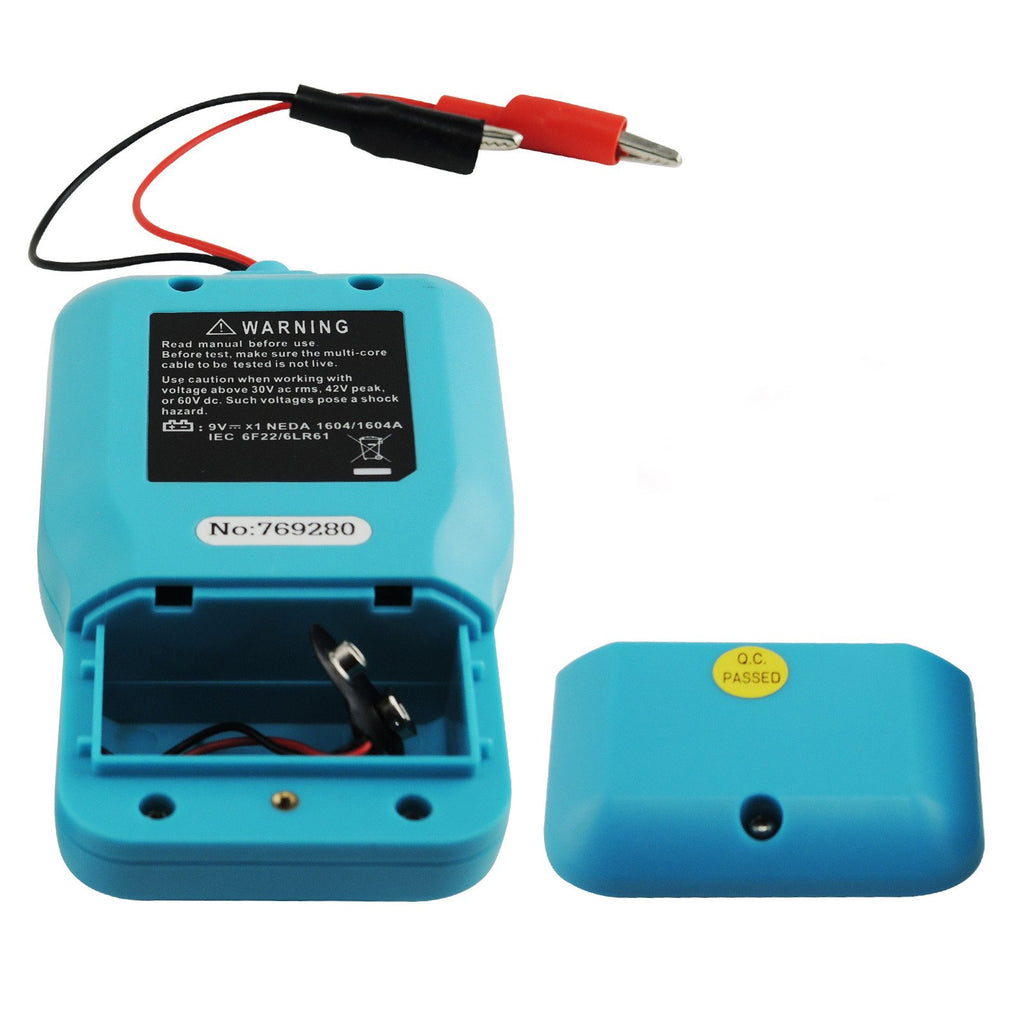

- Battery : 2 x 9V Batteries (both for Transmitter and Receiver)
- Operating Temperature : 0°C ~ 40°C, ≤80% RH
- Storage Temperature : -10°C - 50°C
- Transmitter : 136 x 75 x 32mm (for main body only)
- Receiver : 141 x 75 x 32mm (for main body only)
- Transmitter : About 171g (including battery)
- Receiver : about 139g (including battery)

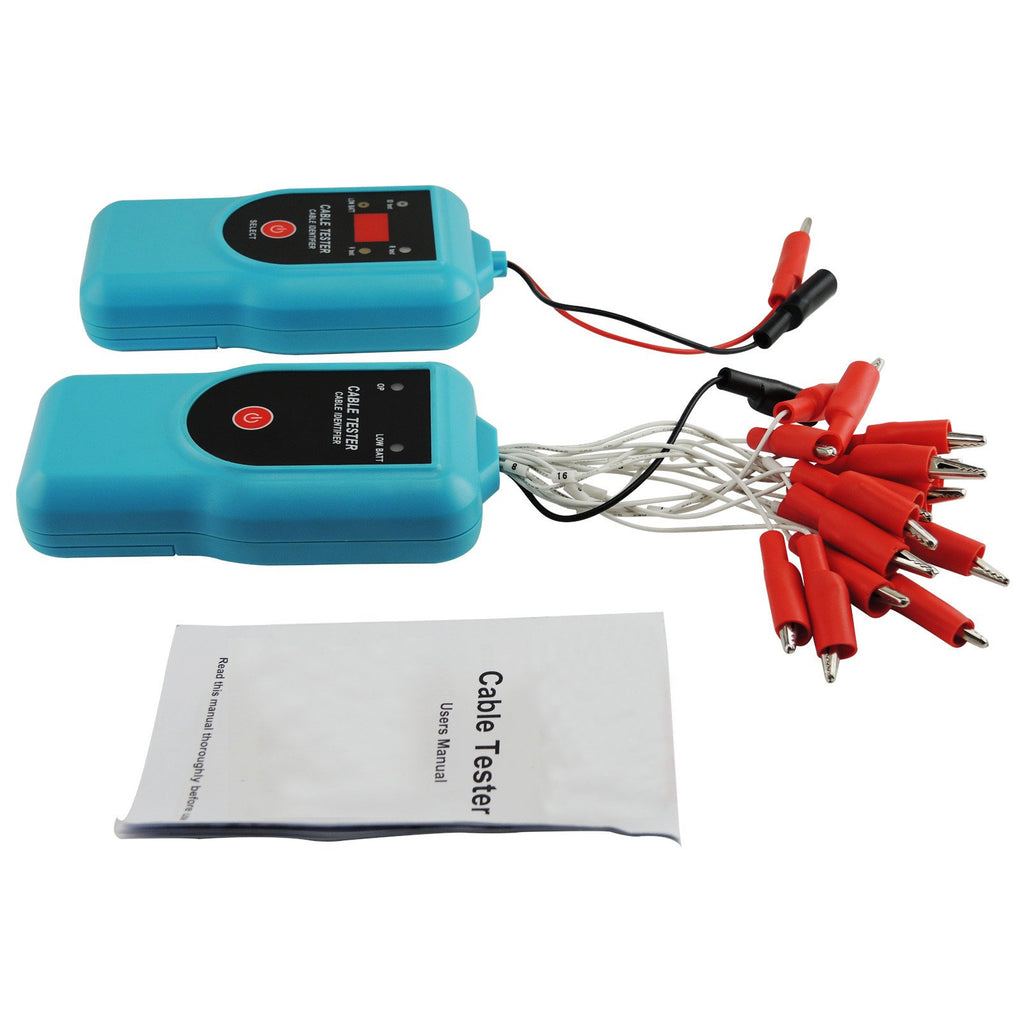

- 1 x Receiver
- 1 x Transmitter
- 2 x 9V Battery
- 1 x English Manual
- Standard Packaging Box
