This meter is a high-performance digital auto range automotive multimeter. Is an ideal measurement tool for automotive repair and service.
- Measurement Scope: DC and AC Voltage, DC and AC Current, Resistance, Capacitance, Diode, Frequency, Continuity, City Cycle, Temperature (°C/°F) RPM Engine, Dwell Angle, Fuel Injection Duration, O2-sensor, Alternator, and DTC (Diagnostic Trouble Code)detection and fault code detection
- Large Dual-LCD display
- With Built-in Buzzer
- Low battery indication
- Auto power off
- Full-range overload protection
- With backlight function
- Analog Bar Graph LCD display
- Manual ranging and auto ranging function
- Data HOLD function
- Data Store, Recall and Erase
- MIN / MAX Recording Mode
- Main Display: 5-digit LCD, with a max reading of 99999
- Secondary display: 4-digit LCD, with a max. reading of 9999
- Over range Indications: "OL" shown on the LCD
- Negative Polarity Indication: Negative sign "-" shown on the LCD automatically
- Sampling Rate: About 2~4 times/sec
- Operating Temperature : 0 ~ 40°C, <75% RH
- Temperature Coefficient : 0.15 x (specified accuracy)/°C (<18°C or >28°C)
- Storage Temperature : -20 ~ 60°C, <85% RH
- Operating Altitude : 0 to 2000 meters
- Battery : 6 x 1.5V battery, AA or equivalent
- Low battery Indication: shown on the display
- Dimension : 200 x 98 x 54mm
- Weight: About 610g (including batteries)
- 1 x Digital Automotive Multimeter

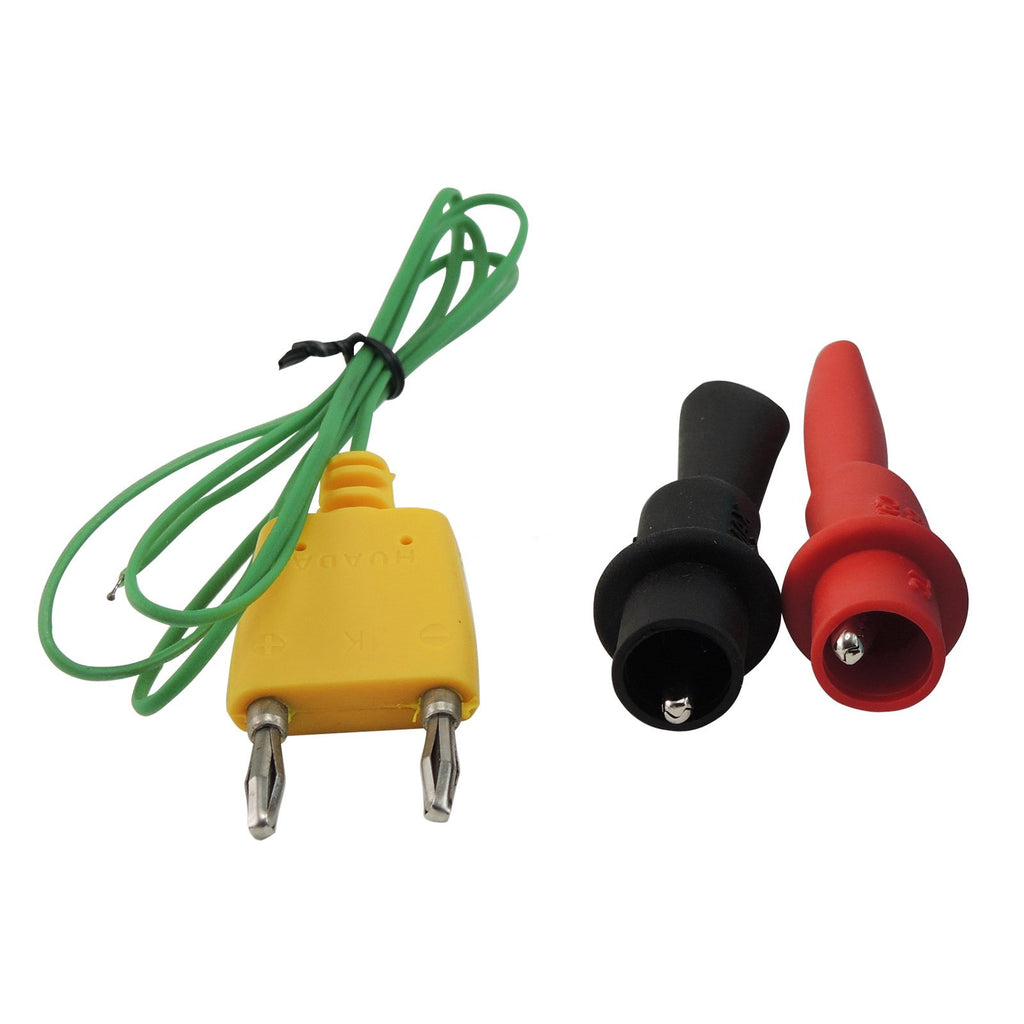

- 1 x Pair Test Lead
- 1 x K-type Thermocouple
- 1 x Inductive Pick-up
- 6 x 1.5V AA Batteries
- 1 x English Manual
- 1 x Carrying Pouch
- Standard Packaging Box
