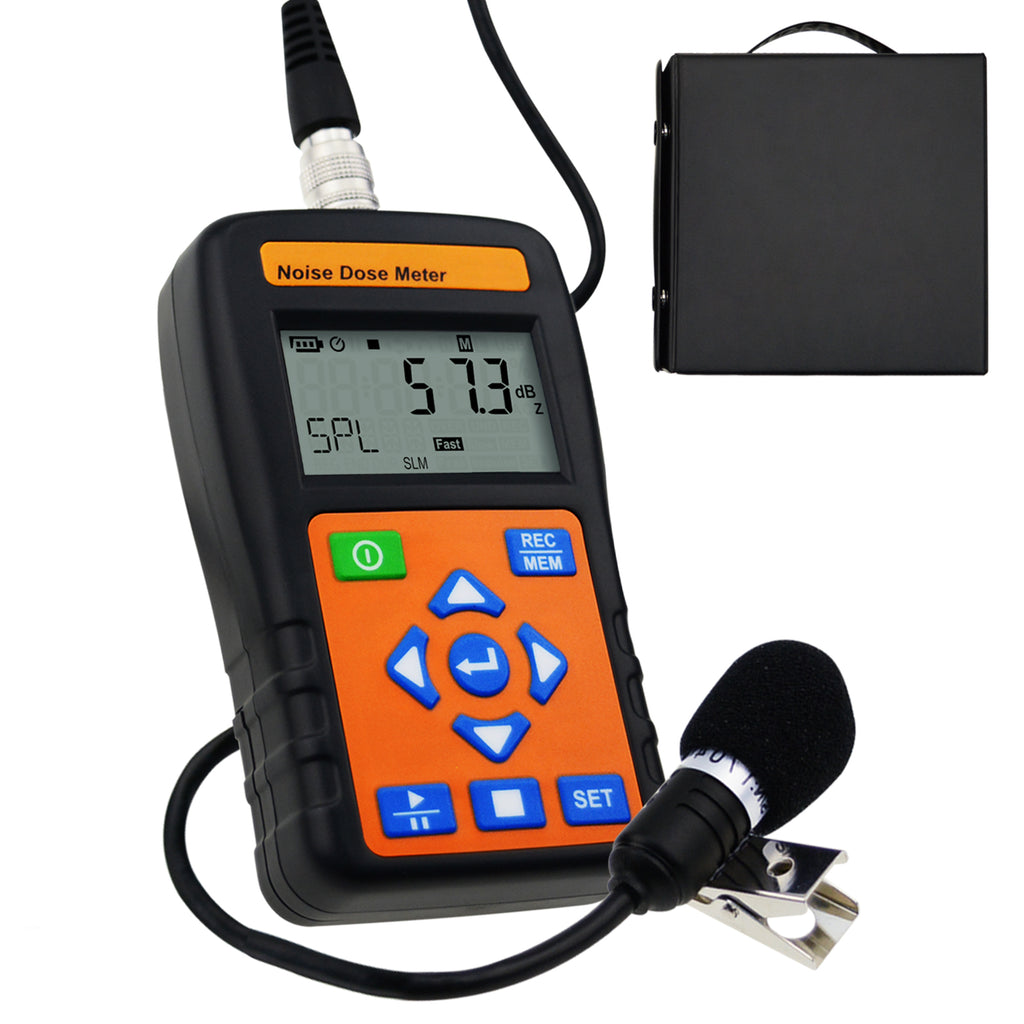

Tenmars ST-130 Noise Dosimeter (also called Dose Meter) is a specialized Sound Level Meter that is designed to measure the noise exposure that a person has been subject to over a period of time; the measurement is normally performed in order to meet current Health and Safety regulations.
With six built-in standard dose measurement setups (OSHA, MSHA, DOD, ACGIH, ISO85, ISO90), the Tenmars ST-130 Noise Dosimeter is the ideal instrument for performing OSHA and IEC Noise accumulation surveys.
Noise dose meters are also referred to as personal noise dosimeters or personal dosimeters. Comes with 2 Modes, Noise Dosimeter Mode (NDM) & Sound Level Meter Mode (SLM). The meter works in one mode at a time. SLM mode has data logging feature that can record up to 10000 readings which can be downloaded to a PC for further analysis via the built-in USB interface. This noise dosimeter comes with a USB download cable and CD software for downloading the measured data. The meter can also be used in SLM (Sound Level meter Mode).
Provide fast and easy on-site surveys to help determine noise reduction requirements.
- Evaluation of environmental noise and logging
- Measurements of occupational noise at workplaces
- Compliance with noise at Work Regulations and occupational noise exposure guidelines
- Monitoring and recording of long term noise exposure
- Noise exposure measurements in hazardous environments such as oil fields, petrochemical plants, and underground mines
- Measurement of noise exposure in the entertainment and music industries
- Assessment of product noise
- Auto/Manual power off
- 115 & 140dB indicator(peak)
- USB port for PC interface (analyzed, print)
- SPL with Hi (140~70), Mid (110~50) and Low dB range (90~30)
- Noise dose %
- Connection status display for USB cable, SD card connection
- Low battery indicators
- A / C / Z weighting
- Save, View, Erase & Download recorded/logged data
- Weighting: Impulse / fast / slow
- over Hi level and under Lo level indication
- Single & auto data record (When this icon flashing means recording)
- Enable/disable auto recode
- Sound level & Noise dose charts
- Display: Single LCD MAX reading 999999
- Display Refresh Rate: 1 Time/sec
- Microphone: 1/2 inch Electret condenser microphone
- Measurement Items (NDM): Doses%, Lxyp, Lxmax, Lxmin, Lxeq, SEL(LAE), Peak, LAVG, TWA, LEP, LN%
- Measurement Items (SLM): Lxyp, Lxmax, Lxmin, Lxeq, SEL(LAE), Peak
- Measurement Range: 30~130dB (A), 35~130dB (C), 40~130dB (Z)
- Dynamic Range: 60 dB
- Accuracy: ±1.5dB@94dB 1kHz
- Internal memory: MAX Datalogger data: 10,000(NDM) surveys, 1,000,000(SLM) readings
- Maximum Peak C Weighting Sound Level Measurement: 90~143 dB
- Time Weighting: Fast, Slow, Impulse, Peak
- Frequency Weighting: A / C / Z
- Frequency Range: 20Hz~8kHz
- Starting Time: <10sec
- Battery Life: 24 hours ( 9V×1 battery Alkaline )
- Size: 113(L) x 65(W) x 34(H) mm
- System Requirements
- Operating: Windows® XP/Windows Vista/Windows 7/Windows 8
- Storage: 200 MB of available hard disk space.
- Processor: Intel Pentium® 4
- Memory: 1GB RAM (XP), 1.5GB (Windows Vista/Windows 7/Windows 8)
- According to Standards:
- IEC 61252-1993
- IEC 61672-2003
- ANSI S1,25-1992
- ANSI S1,4-1993
- ANSI S1,43-1997
- EMC Standards: EN61326-2 (2006)
NOTE: Environmental conditions: temperature 23° C ± 5° C, relative humidity < 80%rh.

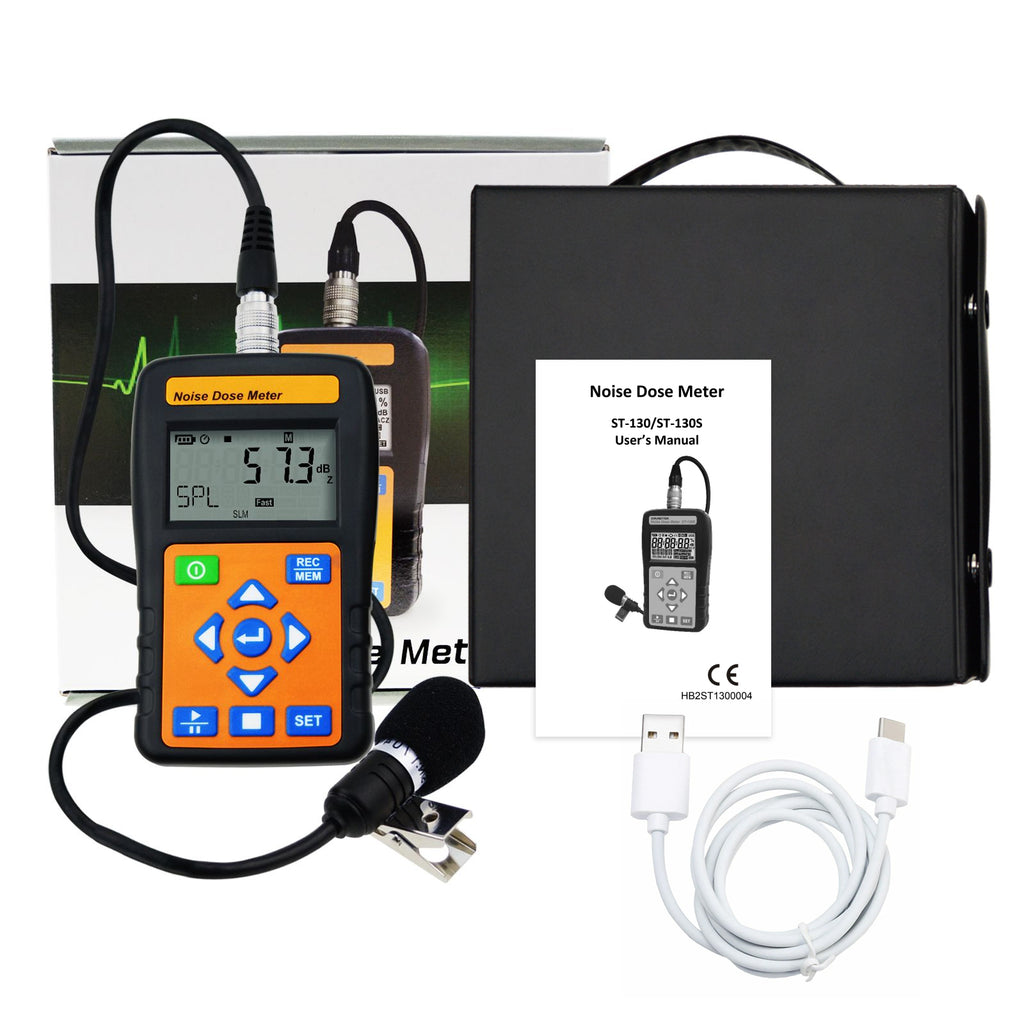

- 1 x Noise Dose Meter
- 1 x Detachable Microphone with windshield
- 1 x CD Software
- 1 x MINI USB Cable (Mini B type)
- 1 x 9V battery
- User’s Manual
- Carrying Case
- Test Report Certificate
