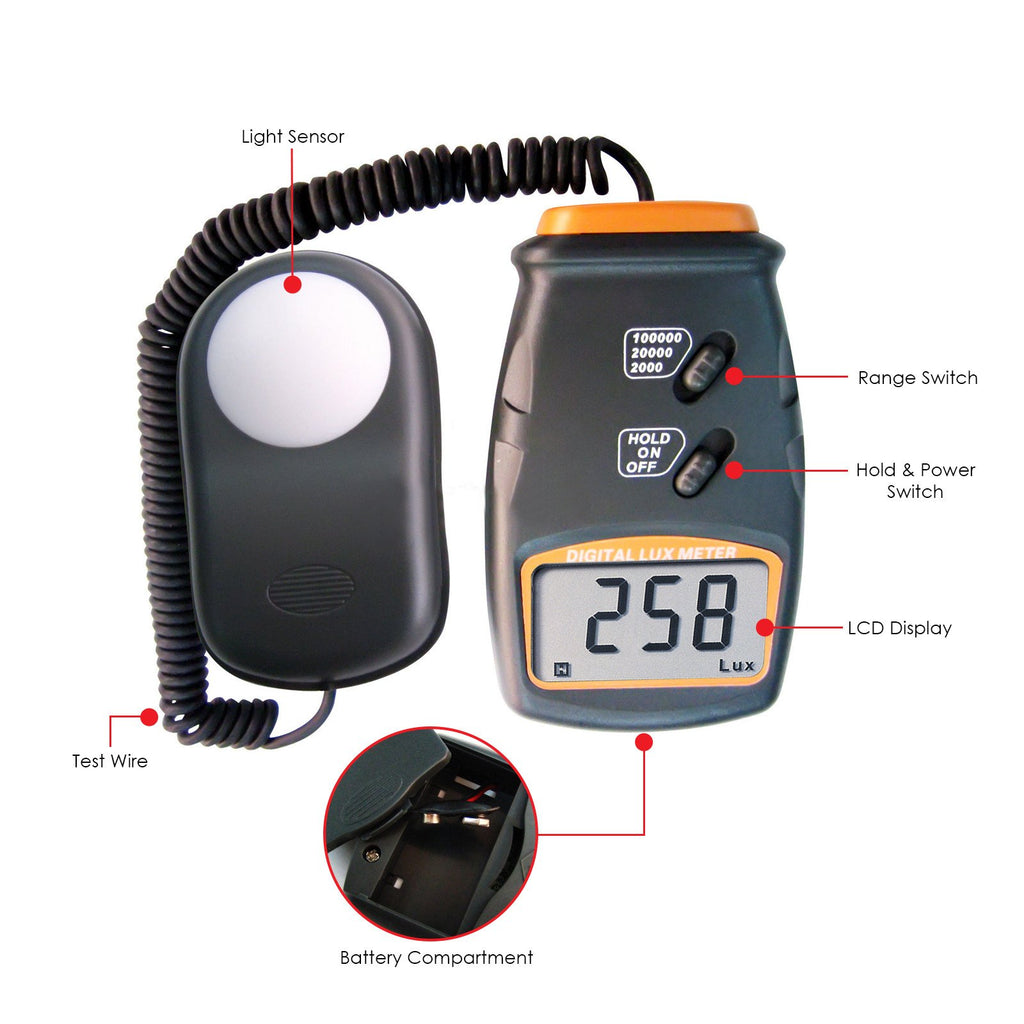

LUTK-147 Digital Light Lux Meter 100,000 Lux LCD Lab Photo Camera CE Marking

In stock
LUTK-147
This is a useful device for anyone who wants to measure illumination levels. It senses or detects brightness/lux of any environment. It uses long-life silicon diode, spectral response filter and ...
$23.50 USD
Share on:

This is a useful device for anyone who wants to measure illumination levels. It senses or detects brightness/lux of any environment. It uses long-life silicon diode, spectral response filter and fully corrected for the angular incidence of light to ensure stability.



Features:

  1. Data hold function

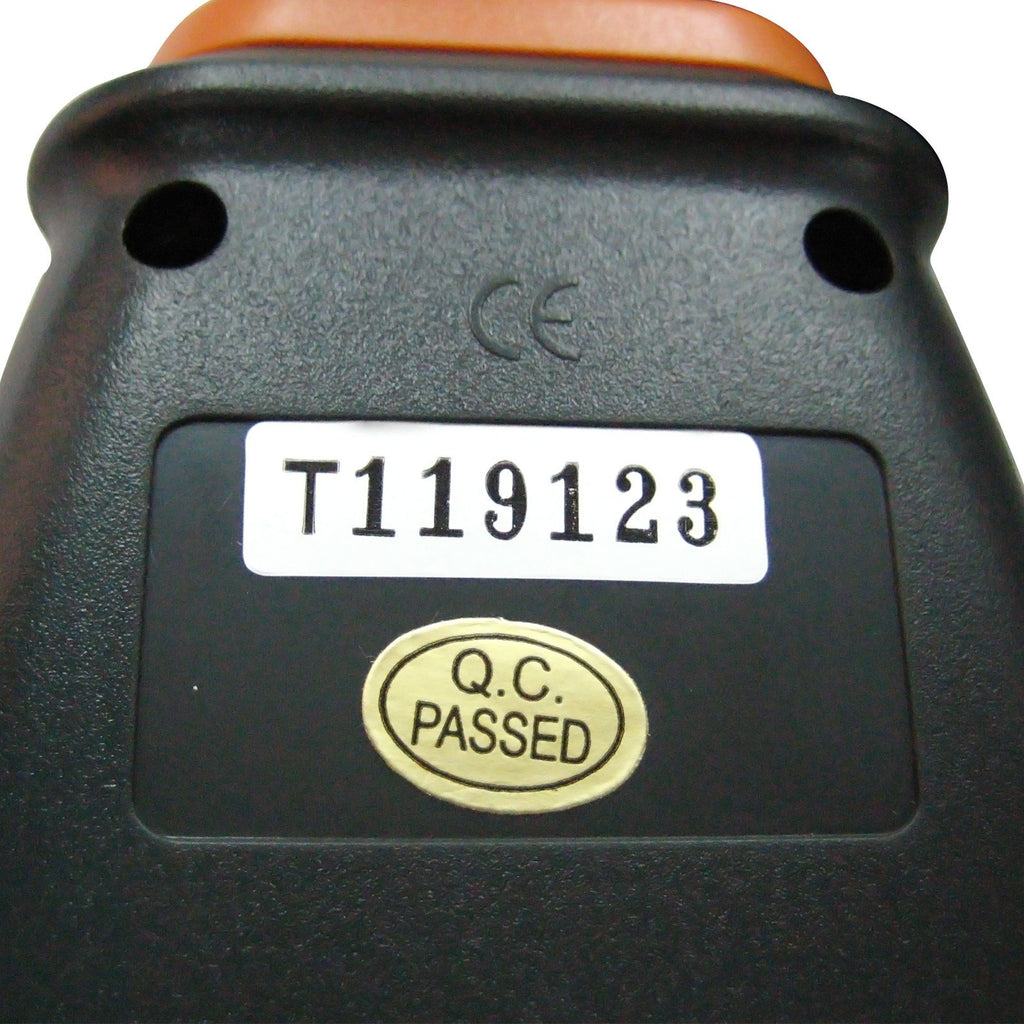

  2. CE marking
  3. With LSI-Circuit
  4. With built-in Low battery indication

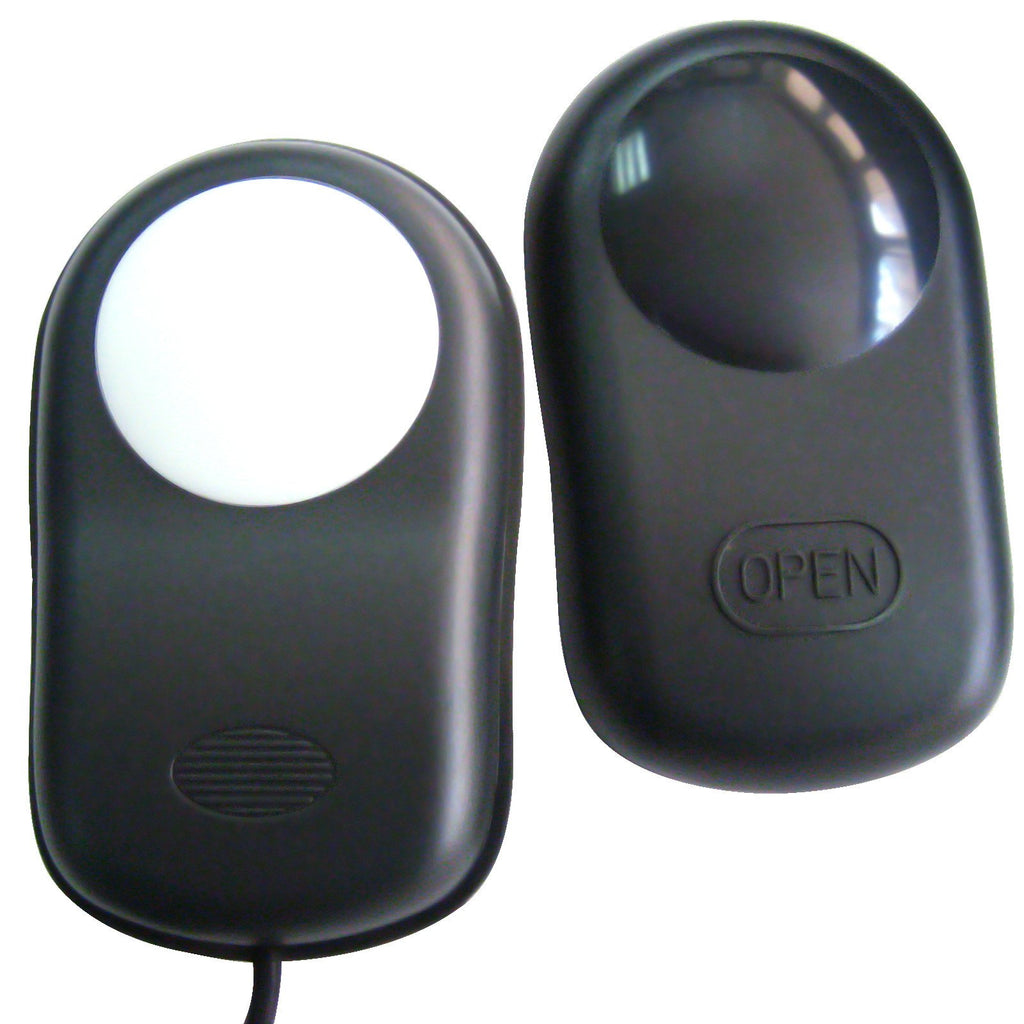

  5. Separate Light Sensor
  6. Auto-Range and Auto Zero-Adjustment
  7. Long life silicon photodiode inside
  8. High accuracy
  9. Low in power consumption
  10. Light and portable



Specifications:

  • Range Coverage is from 0~100, 000 LUX (3 ranges)

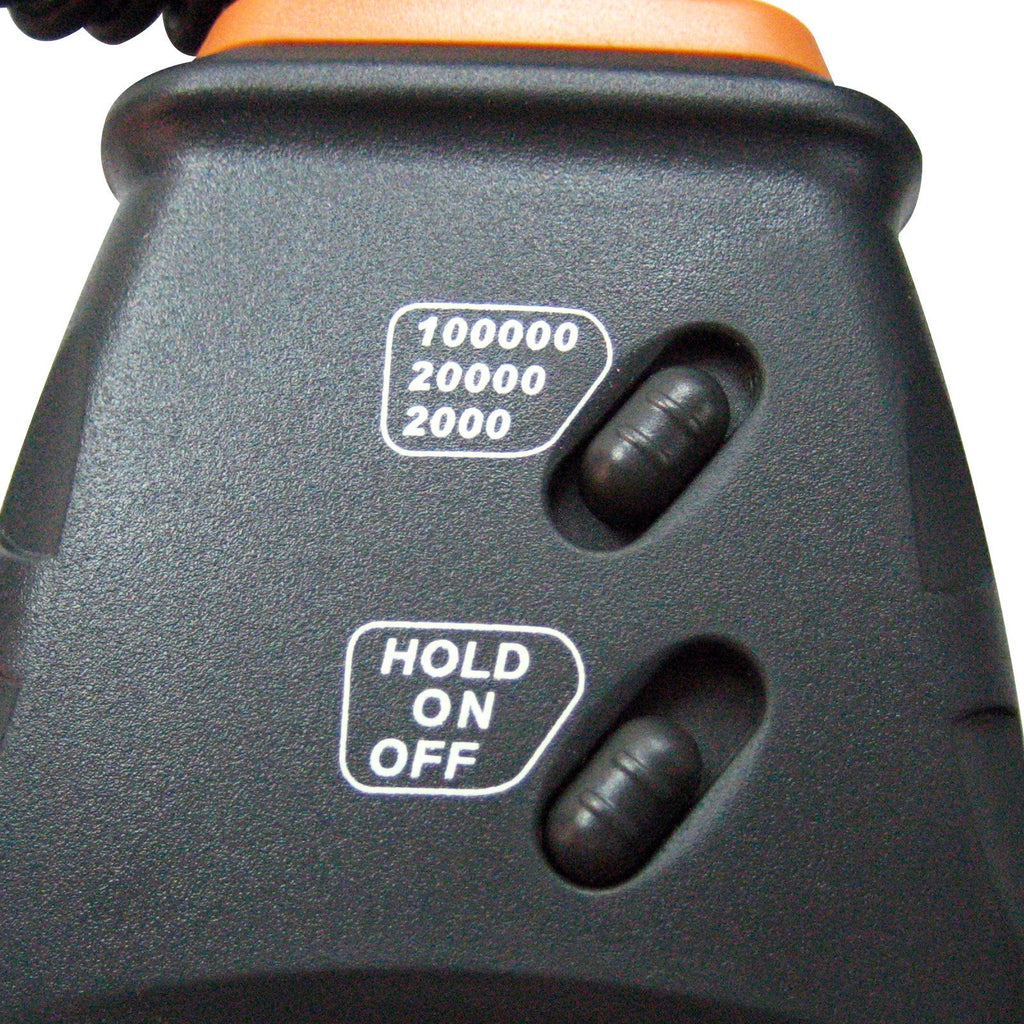

  • Ranges:
    • 0 - 2,000 LUX
    • 2,001 - 20,000 LUX (Reading × 10)
    • 20,001 - 100,000 LUX (Reading × 100)

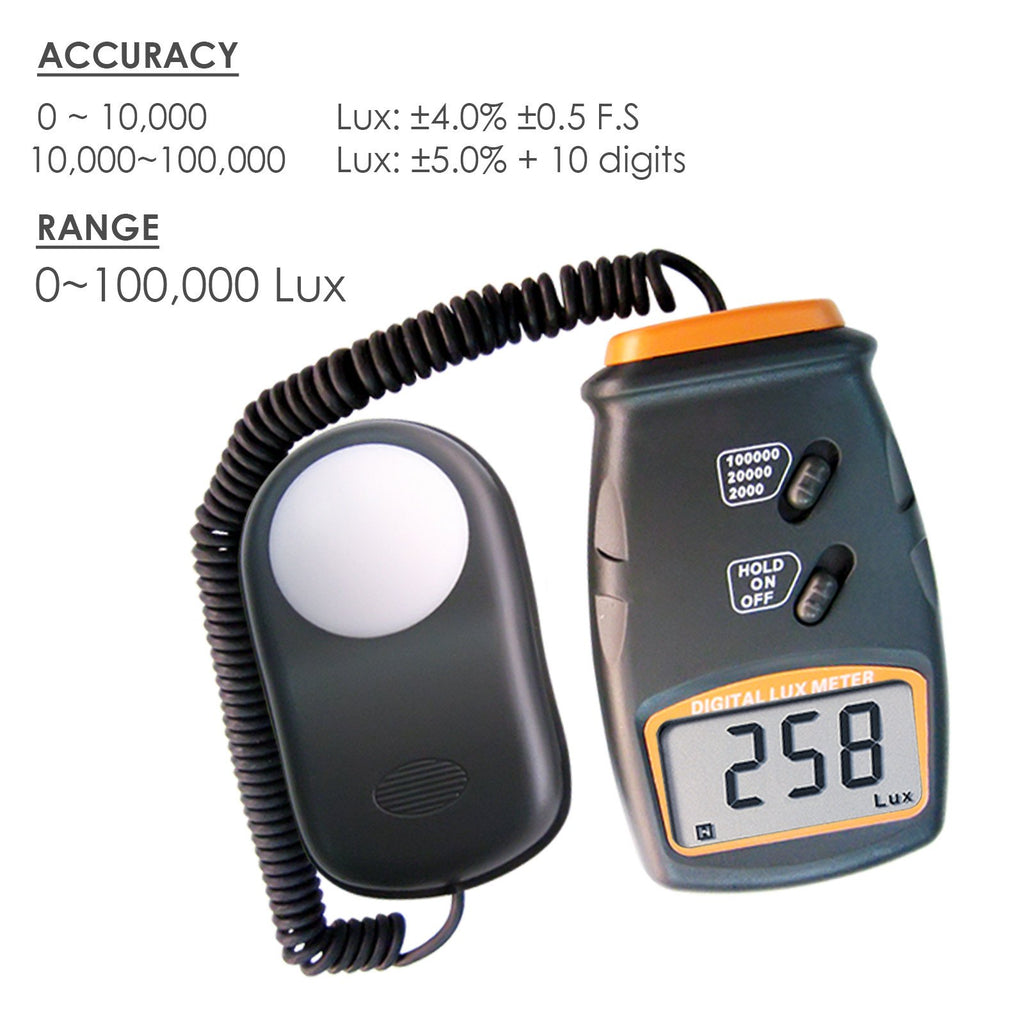

  • Accuracy:
     0 ~ 10,000             Lux: ±4.0% ±0.5 F.S
    10,000~100,000      Lux: ±5.0% + 10 digits
  • Temperature Characteristic :  ±0.1% / °C
  • Repeatablity :  ±2%
  • Test rate :   0.2 times / sec.
  • One silicon photo diode with filter
  • Operation temperature-humidity :  0°C to 40°C (32°F-104°F) 0-70% RH
  • Storage temperature-humidity:  -10°C to 50°C (14°F-122°F) 0-80% RH
  • Over-input :
    • Indication of " 1" (2,000 Lux/20,000 Lux)
    • Indication of "OVER" (100,000 Lux)

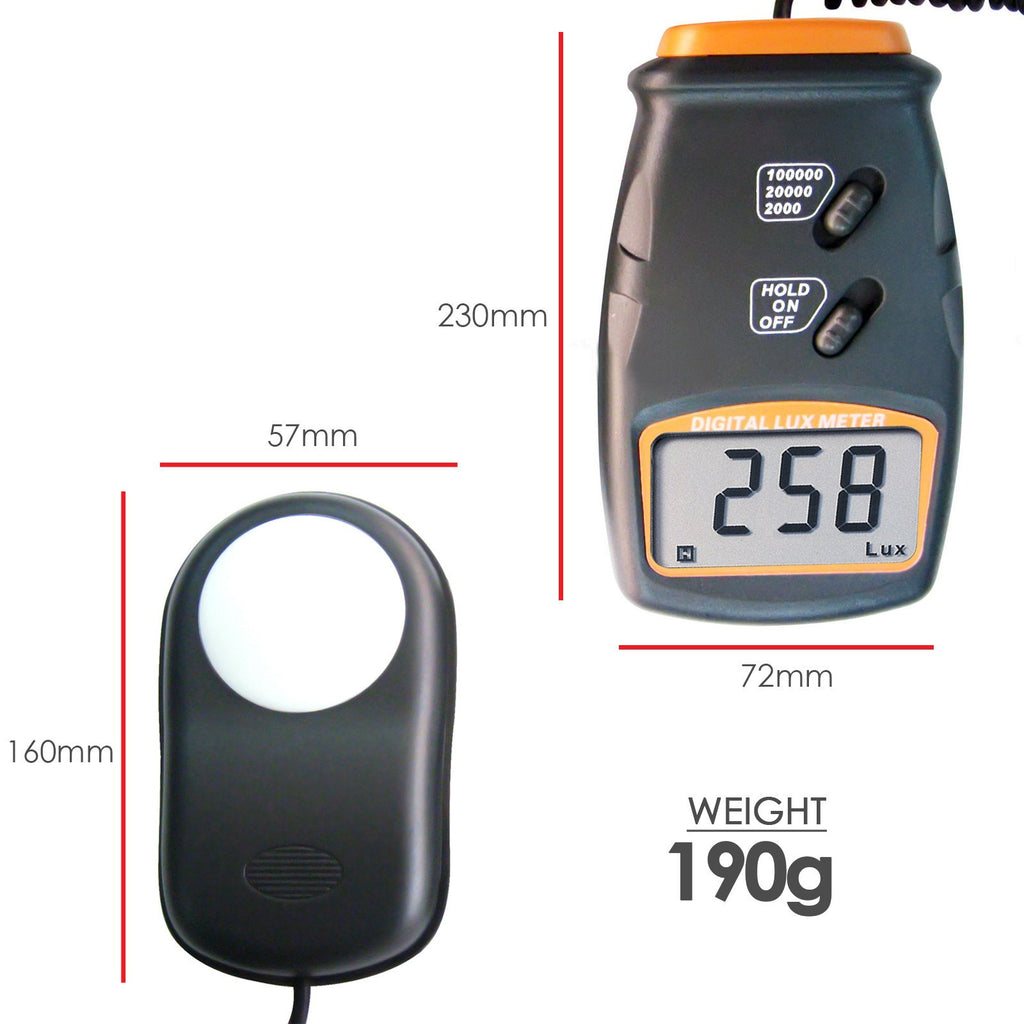

  • Dimension:
    • 106 x 57 x 26mm (photo detector)
    • 230x72x30mm (meter body)
    • 150cm (photo detector lead)

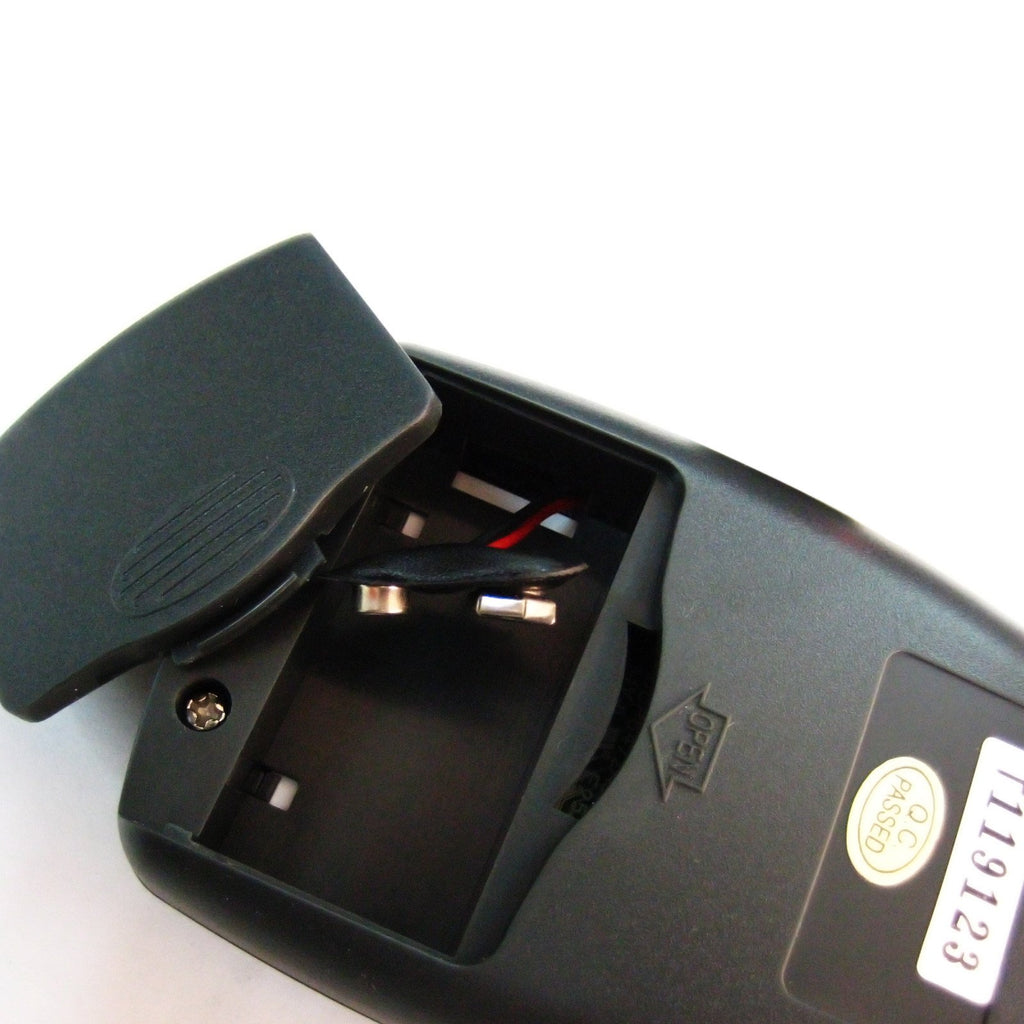

  • Power: 9V (6F22) x1
  • Weight: 190g



Set Includes:

  • 1 x Lux Meter
  • 1 x 9V battery
  • 1 x English Instruction Manual
  • Standard factory box
