CTTK-712 RJ45 RJ11 BNC Wire Tracker Locator - Wire Sorting Hunting Circuit Status Checking Tracing

Out of stock
CTTK-712
The wire tracker has three main functions of hunting, wire sorting, and circuit status testing.  Features: Trace and find STP/UTP network cable, telephone/coax cable that connects to switch or rou...
$50.90 USD
Share on:

The wire tracker has three main functions of hunting, wire sorting, and circuit status testing.

Features:

  1. Trace and find STP/UTP network cable, telephone/coax cable that connects to switch or router
  2. Complete with AC interference rejection for easy tracking
  3. Able to inspect wiremap of network cable directly after it is targeted
  4. Can check the breakage/short point of non-energized wires
  5. Has two scan modes: ordinary switch / PoE switch
  6. Main Functions:
    1. Trace STP/UTP network cable
    2. Trace energized telephone cable
    3. Trace monitoring cable connected to monitor
    4. Check short location of wires
    5. Check breakage location of wires
    6. Network cable mapping


Specifications:

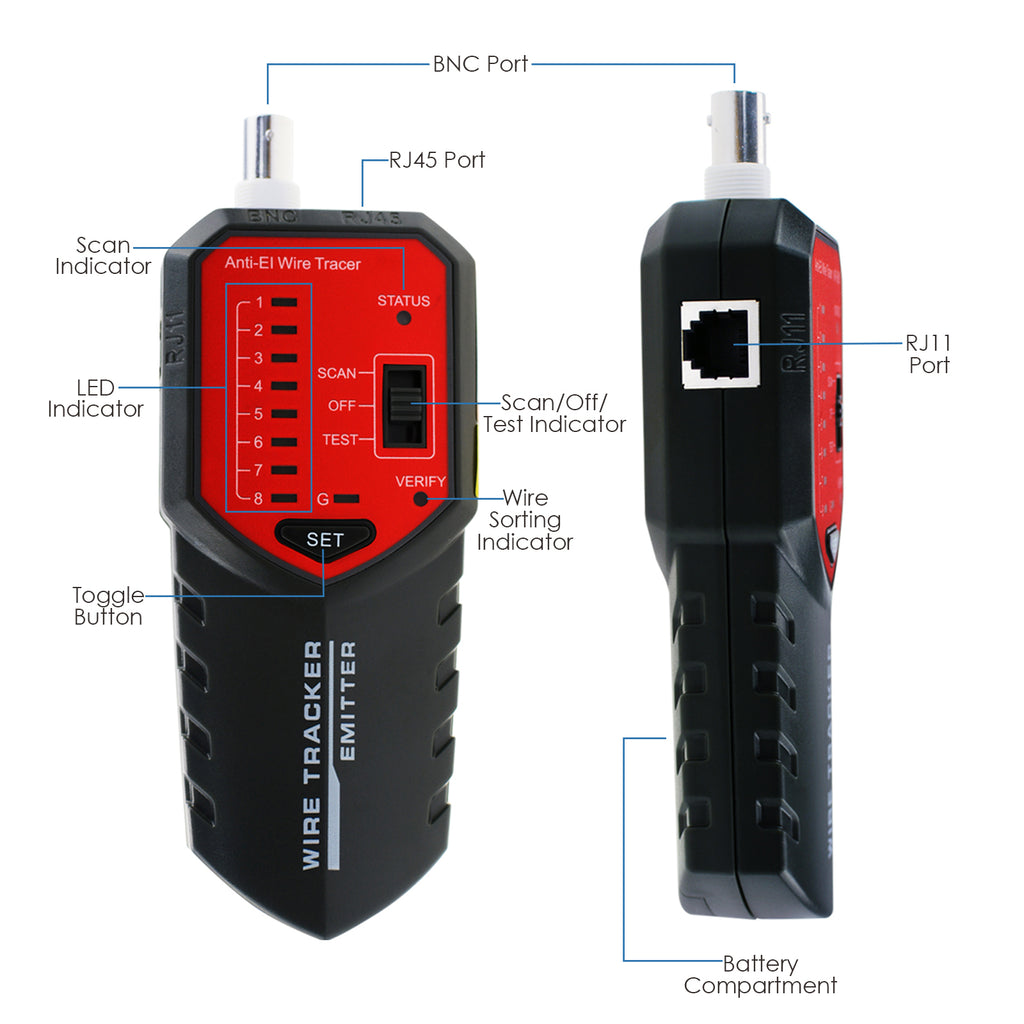

  • Emitter:
    • Tone frequency: 130KHz
    • Max. Distance of transmission: 3000m
    • Max working current: 20mA
    • Tone mode: 2 tones adjustable
    • Compatible connectors: RJ45, RJ11, BNC
    • Max. Signal voltage: 8Vp-p
    • Function and faults light display: light display (wiremap, tone, tracing)
    • Signal transmission format: Multi-frequency impulse
    • Power supply: 9V battery

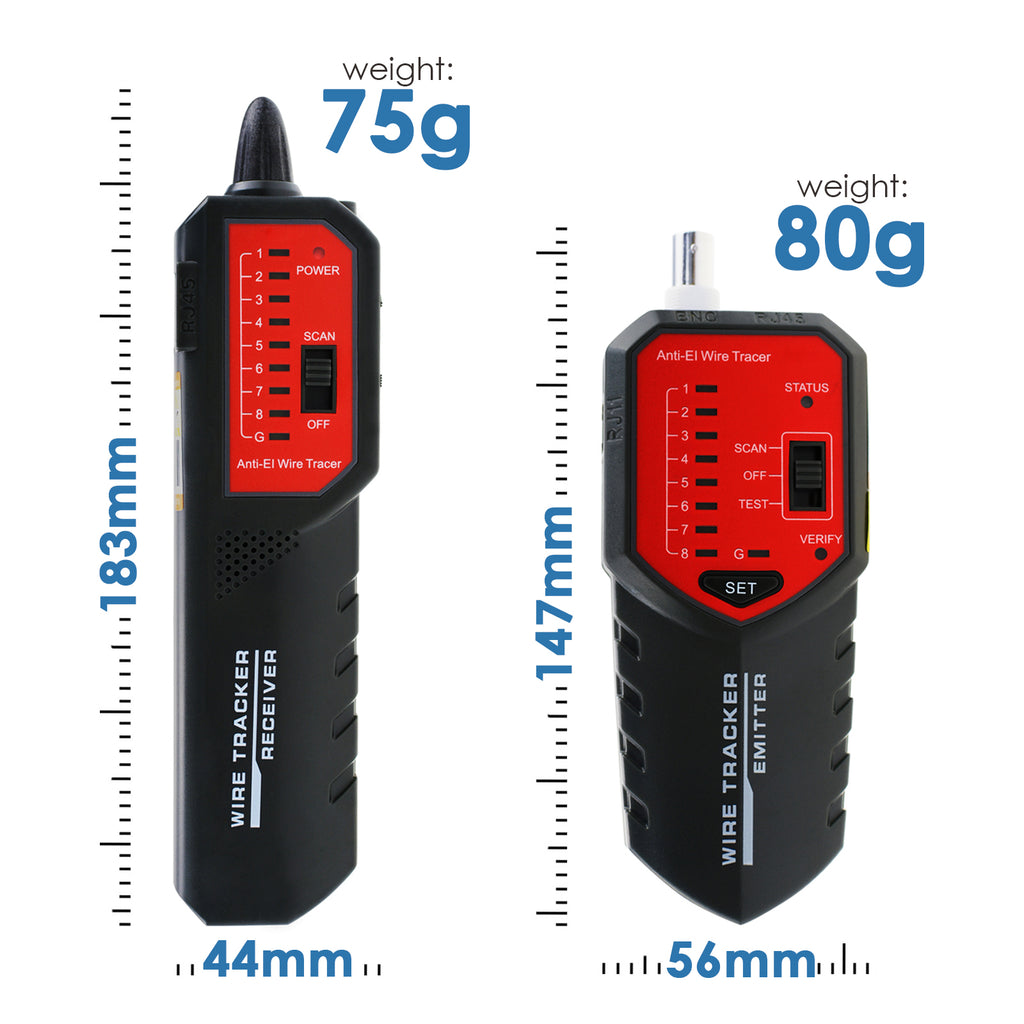

    • Weight: 80g
    • Size: 145(L) x 56(W) x 30(H) mm

  • Receiver:
    • Frequency: 130KHz
    • Max working current: 30mA
    • Ear jack: 1
    • Power supply: 9V battery
    • Weight: 75g
    • Size: 183(L) x 44(W) x27(H) mm

Set Includes:

  • 1 x Emitter
  • 1 x Receiver
  • 1 x English Manual
  • 2 x 9V battery
  • 1 x Earphone
  • 1 x RJ11 adaptor cable
  • 1 x RJ45 adaptor cable
  • 1 x Alligator clip

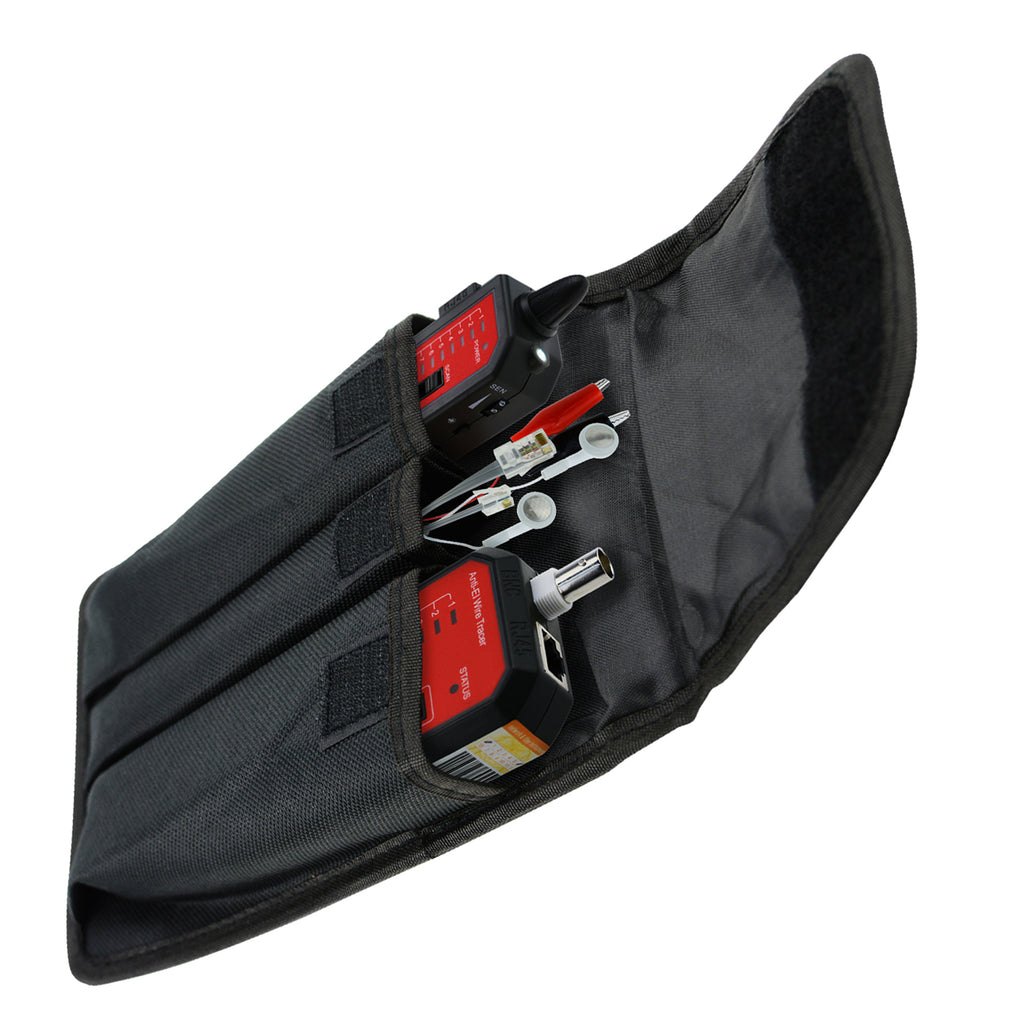

  • 1 x Carry pouch
