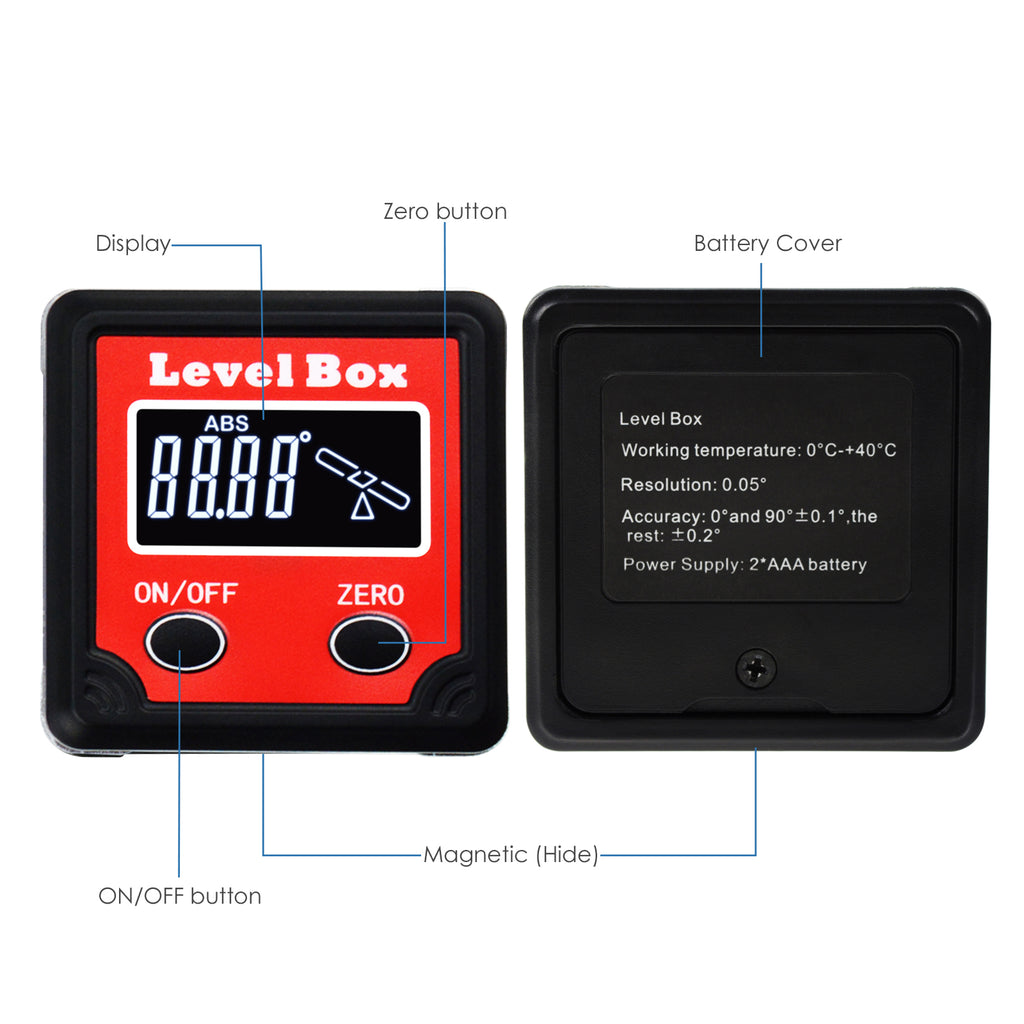

- Illuminated LCD display with automatic backlight
- Magnetic base
- 2 buttons operations
- Absolute & relative measurement
- Zero set to any position
- See-saw figure on the display
- No Temperature drift
- Auto power off function
- Aluminum framework
- Handy easy to carry anywhere
- Pre-calibrated at the factory
Applications: setting pitch angles for helicopters, adjusting the blade angle of miter saws, table saws and circular saws, setting up the tool settings on lathes, assessing drainage angles and run off slopes, and aligning graders and tractors.
- Working range: 4 x 90°
- Accuracy: 0 & 90°: ±0.1°, the rest: ±0.2°
- Resolution: 0.05°
- Relative Measurement: set any angle to zero
- Working Temperature: 0~40°C ( 32~104°F)
- Working Humidity: ≤85%
- Power Supply: 2 x AAA Alkaline battery
- Dimension: approx. 59 x 59 x 28mm
- Weight: approx. 70gms
- 1 x Bevel Box
- 2 x AAA Alkaline battery

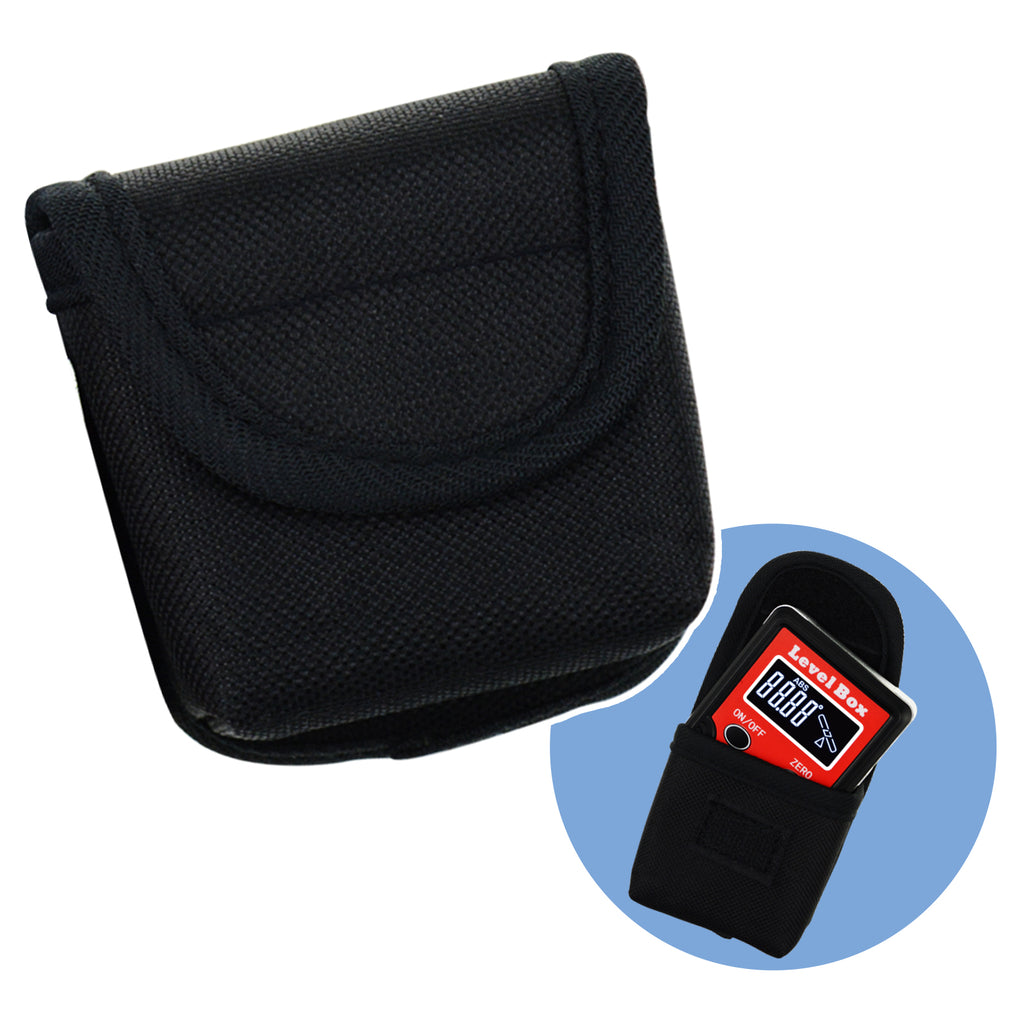

- 1 x Carrying pouch
- English Manual
